Glassware PVD decorative coatings, PVD transparent rainbow coatings
1 set
MOQ
negotiable
Price
Glassware PVD decorative coatings, PVD transparent rainbow coatings
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1400
High Light:

glass coating equipment

,

glass coating system

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 12 sets per month
Specifications
Deposition Sources: Tungsten Filament Evaporation + Arc Evaporation
Deposition Films: Al/Cr/Ag/Au Thermal Evaporation + Ti/Cr Arc Plating
Applications: Glass Balls, Glass Candle Holders, Glass Decoration Products,
Film Features: High Reflective, Decorative Coating Colors
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description









RTAC1400 Machine Advantages



1. Plug-in Integrated design system for quick installation

2. Siemens PLC,CPU; with Industrial PC operation & control hardware

3. Available for remote monitoring and diagnosis.
4. Flexible, ready for upgrading

5. Multiple cathodes for fast deposition speed



Glassware PVD decorative coatings, PVD transparent rainbow coatings 0



The machine is designed and produced for glass balls decoration film coating.

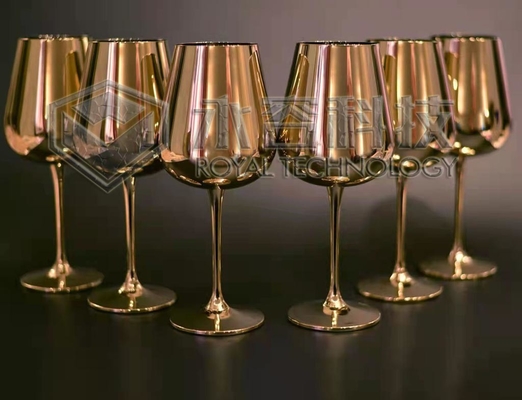

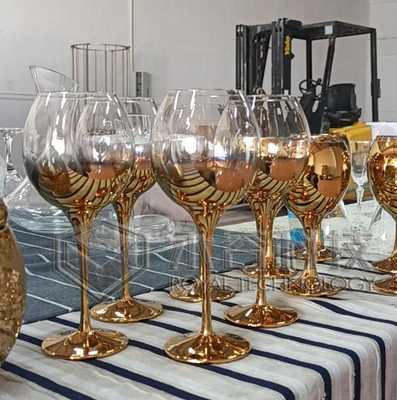

Thermal evaporation sources is to get the none-transparent silver and gold colors by   Copper and Aluminum deposition to get high reflection surface finishing.

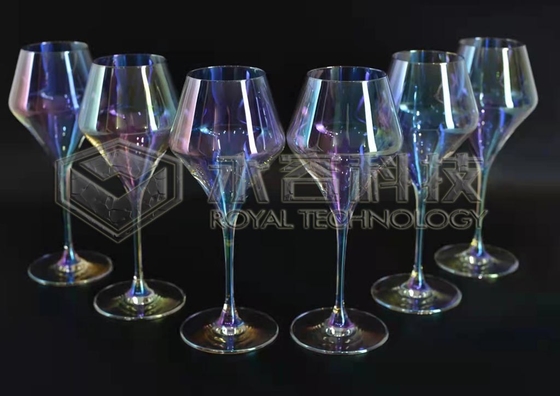

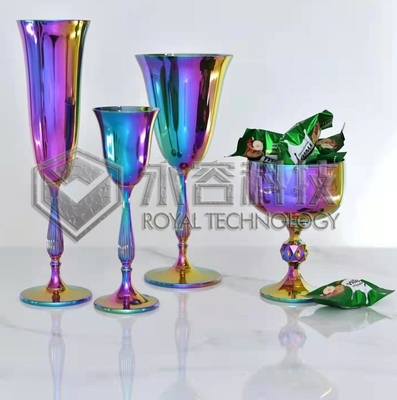

The arc evaporation sources to generate more colors like champin, blue, rainbowl color, Amber color,  none-transparent gold and half-transparent gold colors etc.



2.RTAC Thermal Evaporation + Arc Vacuum Plating Machine models



Model Size(mm) Substrate Jigs (Qty.) Evaporation Power(kVA) Plasma (kVA)

Arc Sources

(Qty.)

Electrical Power
RTAC1012-EP 1000xH1200 6,8,10 20 12 6 3Phase/AC380V,50HZ
3Ph, 220 to 440V,60HZ
RTAC1416-EP 1400xH1600 6, 8,16 30 24 14
RTAC1418-EP 1400xH1800 6,16 35 24 14
RTAC1616-EP 1600xH1600 8.16 35 36 16
RTAC1618-EP 1600xH1800 8.16 35 36 18
RTAC1820-EP 1800xH2000 6 40 48 22

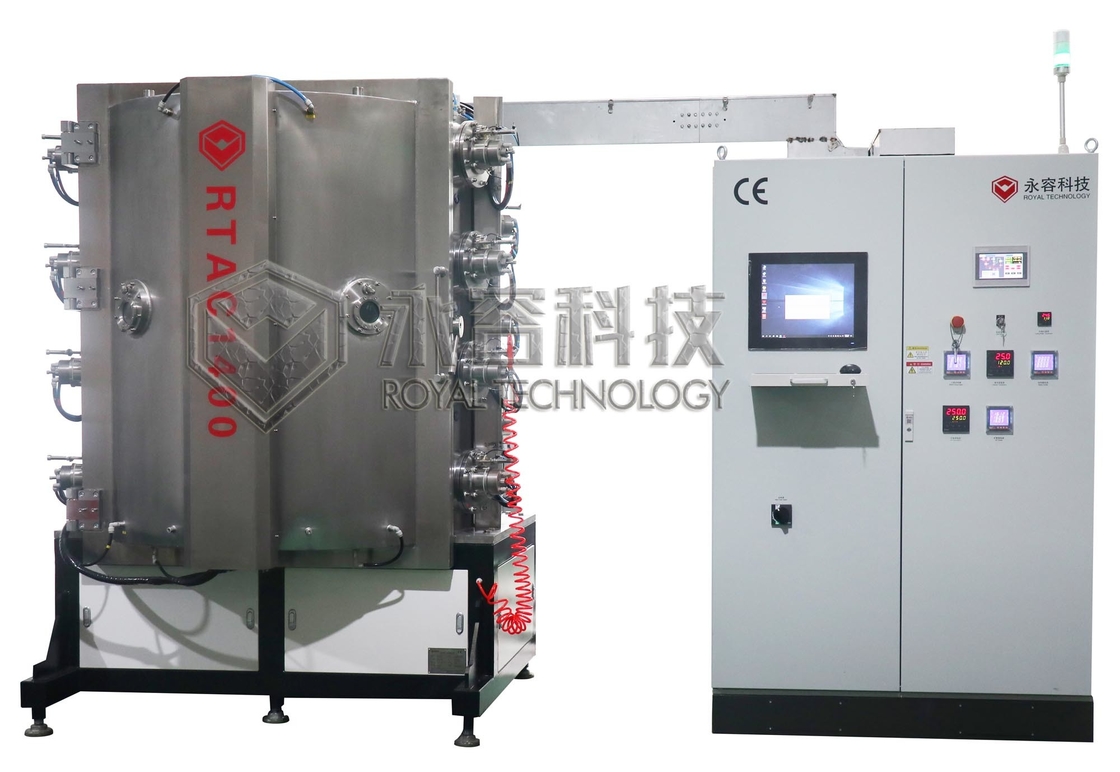

3. Equipment Structure

Glassware PVD decorative coatings, PVD transparent rainbow coatings 1









Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
