PVD thin film gold plating on Glass , Glass Vase PVD Vacuum Plating Equipment, Dark Grey PVD Decorative Coating

1 set
MOQ
negotiable
Price
PVD thin film gold plating on  Glass , Glass Vase PVD  Vacuum Plating Equipment, Dark Grey PVD Decorative Coating
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel 304/316
Vacuum Technology: Arc Evaporation
Deposition Sources: Cathodic Arc Sources
Coating Films: Ti, Cr, TiN, TiCN, CrC, TiO Etc.
IndustGlass Candle Holdersrial Applications: Rystal Chandelier Lighting, Chandelier Pendant Lighting
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

thin film coating equipment

,

thin film deposition equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 6 sets per month
Product Description



Glass container vessels PVD Plating Machine , vessels Arc Vacuum Plating Equipment



Glass container vessels Plating Machine Coating Color: gold, rose gold, silver, colorful, sapphire blue, black etc.
Glass container vessels PVD Plating Machine  Coating Films:TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN







CrGlass Lighting PVD Plating Machine Specifications

MODEL RTAC-1836
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1800*3600mm (H)
CHAMBER TYPE Cylinder, vertical, top opening door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Bias Power Plasma Cleaning
POWER MAX. 150KW

AVERAGE POWER

CONSUMPTION

90 KW



Remark:Specially tailored according to customers’ products and process requirements.

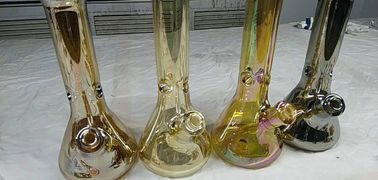

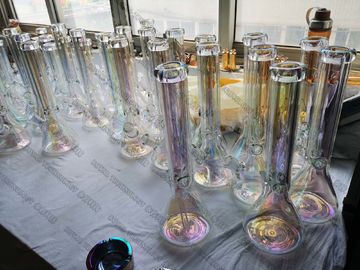

Glass container vessels PVD Plating Machine with a proper size not only coat the glass and crystal accessories but also the metal and steel frames, to get the gold, black, silver, blue and rainbow colors with our coating processes.








Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
