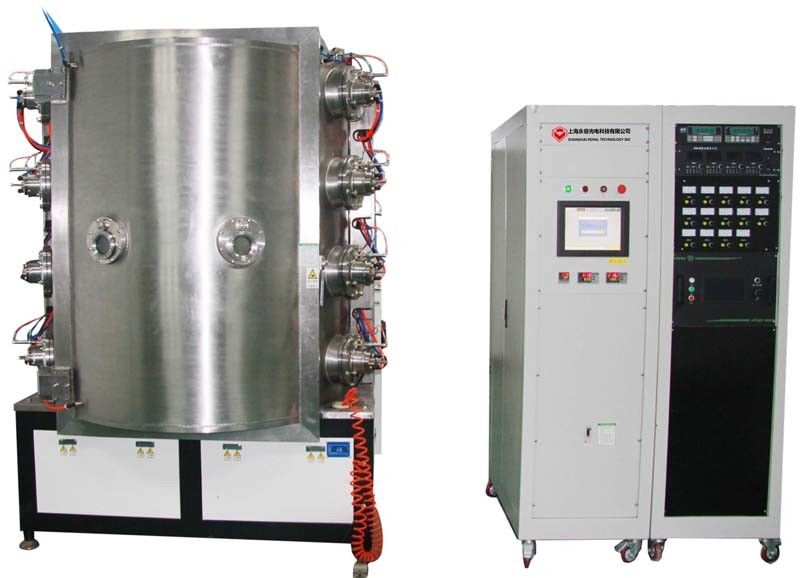

Multi Arc Glass perfume Coating Equipment Arc Sources Vacuum Evaporation System Glass perfume bottle PVD Coating Machine

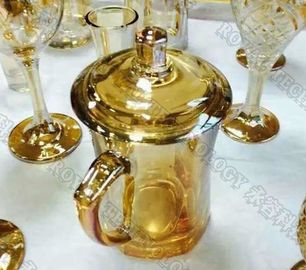

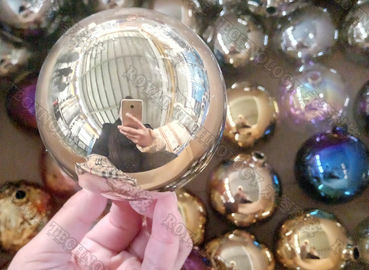

Glass perfume bottle Coating Color: gold, rose gold, silver, colorful, sapphire blue, black etc.
Glass perfume bottle Coating Films:TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
Remark:Specially tailored according to customers’ products and process requirements.
Glass Candle Holder PVD Ion Plating Machine is a batch vacuum coating equipment which adopts vacuum coating method, to coat aluminum film and SiOx protective film on the surface of the substrate. It mainly consist the vacuum chamber, vacuum pumping system, rotation system, Al evaporation source, pneumatic system, and electric control system etc. It’s a mature technology with simple operation, fast deposition, high efficiency. It can also coat complicated shape substrate.
A variation on Vacuum Metalizing (Filiment Evaporation/Cathode Arch/Sputter) called "Low Pressure Deposition."
• Does not utilize complete atmosphere removal (vacuum)
• Utilizes a basecoat, but a highly polished mold/amorphous materials don't need.
• Deposition is very uniform and controlled.
• Creates a very bright appearance (varies with thickness & basecoat color)
• Materials that oxidize must be top coated - is metalizing, not plating.
• Aluminum oxides, chrome, stainless steel.
• Does not oxidize - no top coating required.
Standard Arc Vacuum Coating Machine Models
|Chamber Inner size||900x1100mm||1000x1200mm||1250x1350mm||1400x1600mm||1600x1600mm|
|Power supply type||Arc power supply, filament power supply, pulse bias power supply|
|Structure of vacuum chamber||Vertical front door structure, rear air exhaust system and double-layer water cooling chamber|
|Material of vacuum chamber||stainless steel 304/316L|
|Ultimate vacuum||6.0x10-4Pa (unloading, clean, drying chamber)|
|Vacuum Pumping Speed||from atmosphere to 8.0*10-3Pa ≤15 minutes|
|Vacuum pumping system||Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
|Arc source||6 units or
|8 units or
|10 units or
|14 units or
|16 units or
|Bias power supply||20KW/set||20KW/set||30KW/set||40KW/set||50KW/set|
|Driving Model||Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
|Heating System||Controllable and adjustable from room temperature to 450°C
(PID temperature control)
|MFC||3-path or 4-path process gas flow control and display system, selective automatic gassing system|
|Cooling System||Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)|
|Control mode||Manual/automatic integration mode, touch screen operation, PLC or computer control|
|Alarm and protection||Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function|
|Other technical parameters||Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa|
|Remarks||The specific configuration of coating equipment can be designed according to process requirements of coating products|
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
