Glass Mosaic PVD Plating Machine, Large Size Glass tiles PVD Gold Plating Equipment
1 set
MOQ
negotiable
Price
Glass Mosaic PVD Plating Machine,  Large Size Glass tiles PVD Gold Plating Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

titanium nitride coating equipment

,

tin coating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Deposition Sources: Cathodic Arc Evaporation
Deposition Films: TiN TiO Arc Plating
Applications: Glass Mosaics, Glass Candle Holders, Glass Decoration Products,
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Product Description



Glass Mosaic PVD Plating Machine, Glass paint epoxy Decoration art Epoxy Hardener





Glass Mosaic and glass tiles are used in archiectural decorations for bathrooms, pool, kitchen, Spa, toilets, basins, bathtub floors, walls etc.





Glass Mosaic PVD Coating Technology

With PVD arc evaporation technology, we can get the range colors of gold, rose gold, high reflection of silver mirror, black, rainbow.





Arc PVD Coating Advantage:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.





Glass Mosaic PVD  Coating Colors

Glass Mosaic PVD Plating Machine,  Large Size Glass tiles PVD Gold Plating Equipment 0



Glass Mosaic PVD Plating Machine,  Large Size Glass tiles PVD Gold Plating Equipment 1

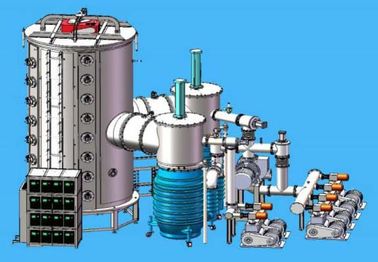

Glass Mosaic PVD Coating Machines



MODEL RTAC-1836
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1800*3600mm (H)
CHAMBER TYPE  Cylinder, vertical, top opening door
SINGLE PUMP PACKAGE  Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE   Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Bias Power Plasma Cleaning
POWER MAX.     180 KW

AVERAGE POWER

CONSUMPTION

90 KW






Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
