Ceramic Tiles PVD Gold Coating Machine, Antibacterial Coatings on Ceramic wall tiles
1 set
MOQ
negotiable
Price
Ceramic Tiles PVD Gold Coating Machine, Antibacterial Coatings on Ceramic wall tiles
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

pvd coating system

,

titanium coating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 12 sets per month
Specifications
Material: Stainless Steel 304/316
Deposition Sources: Arc Evaporation
Applications: Glass Mosaics, Glass Candle Holders, Glass Decoration Products,
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

The demand for antibacterial coatings on frequently touched surfaces has long existed. With the rising public health and domestic hygiene awareness, decorative coatings on SS and ceramic products, such as taps, door handles, hand rails, tiles,faucets, bathroom fittings with antibacterial properties may attract more attention from consumers than ever.
“After one year of research and development, the test results eventually turned out excellent,” said Zhou Xin, the marketing director, “adding only several minutes based on traditional PVD decorative coatings, the products will be able to kill 99.99% of E. coli and S. aureus after 24 hours without affecting other important properties.”
We are ready to share this advanced technique with our customers, anyone is interested in providing the antibacterial finishing as an high added-value on your products, please contact us for a FREE consult.





Ceramic Mosaic and glass tiles are used in archiectural decorations for bathrooms, pool, kitchen, Spa,

toilets, basins, bathtub floors, walls etc.



Ceramic Mosaic PVD Coating Technology

With PVD arc evaporation technology, we can get different ranges  colors of gold, rose gold, high reflection of silver mirror, black, rainbow.



Cathodic Arc Coating Technology Performance
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce. 5. Fast deposition rates and high quality surface finishes.

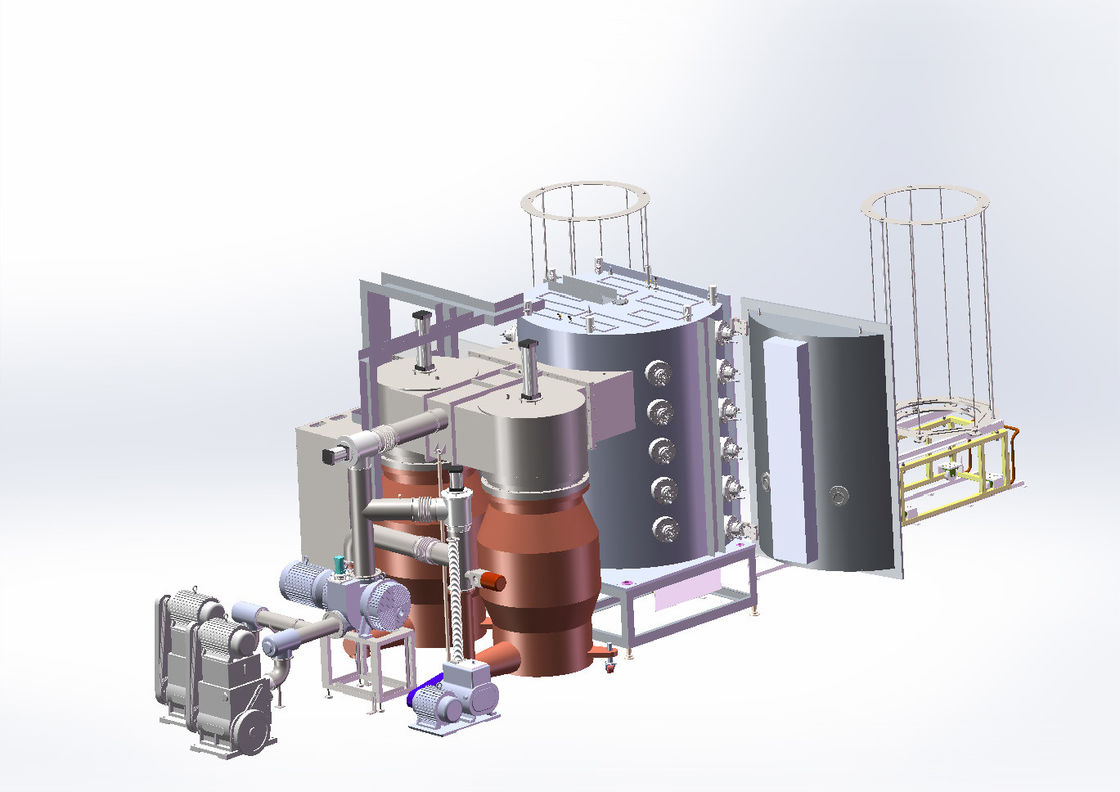

Ceramic Mosaic PVD Coating Machines



MODEL RTAC-1836
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1800*3600mm (H)
CHAMBER TYPE Cylinder, vertical, top opening door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Bias Power Plasma Cleaning
POWER MAX. 180 KW

AVERAGE POWER

CONSUMPTION

90 KW





Ceramic  Mosaic PVD  Coating Colors



Ceramic Tiles PVD Gold Coating Machine, Antibacterial Coatings on Ceramic wall tiles 0

Ceramic Tiles PVD Gold Coating Machine, Antibacterial Coatings on Ceramic wall tiles 1

Ceramic Tiles PVD Gold Coating Machine, Antibacterial Coatings on Ceramic wall tiles 2









Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
