High Vacuum Metallizing System / Cs I Evaporation Vacuum Deposition System
1 set
MOQ
negotiable
Price
High Vacuum Metallizing System / Cs I Evaporation Vacuum Deposition System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: CsI950
High Light:

vacuum metallization equipment

,

vacuum metallizer machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Evaporation Source: Molybdenum Crucibles
Deposition Materials: Cs I, Vacuum Deposition
Applications: Medical X-ray Screen, Dental Imaging, Security Inspection, High - Energy Physics
Product Description

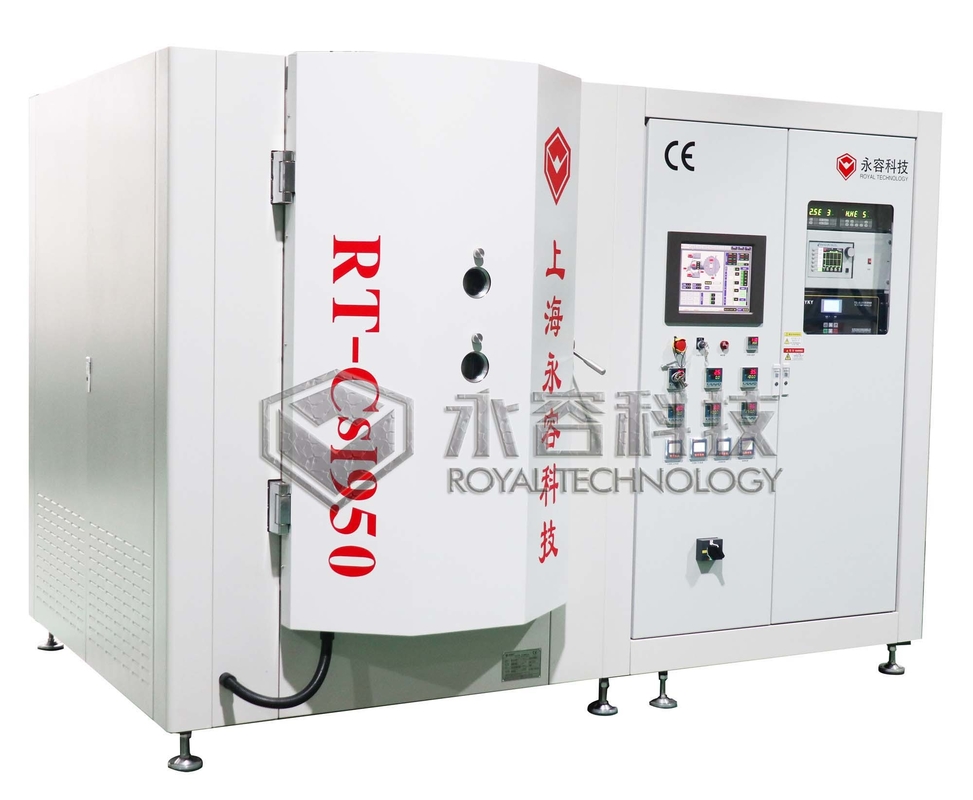

High Vacuum Metallizing System / Cs I Evaporation Vacuum Deposition System





 PVD Vacuum Coatings performance

Ultra- High Spatial Resolution of Imagings;

Fast response for sharper imagings;

Class leading edge-to-edge image areas;

Optical absorber layers or reflector layers;

Low patient X-ray dose;

Suitable for CCD and CMOS devices, especially in medical industries.



 PVD Vacuum Coating Machine is developed exclusively used for medical devices to get a high X-ray imaging. The main features of this machine:

1. Ultra-high ultimate vacuum pressure : up to 9.0*10-5 Pa;

 2. Fast heating up devices for a good adhesion;

3. Proper high vacuum pump selection and pumping system to avoid hazard material's exposed in the air;

4. Robust, compact and solid coating system;

5. High stability, working 960 hrs without stop.

6. Inficon Film Thickness Controller device to monitor the film thickness inline.

7. Exclusively crucibles design and selection for CsI deposition.

8. Substrates coating, max. size: 500*500mm

 CsI thin film deposition for X-ray Imaging devices is an advanced technique to evaporate CsI on the screen to give a high quality of imagings. With its high resolution performace, also widely used in secuiry checking and inspection, high energy physics subsject, physics of nuclear energy areas etc.



Benefits from Us



  1. Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.

  2. Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.

  3. Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.

High Vacuum Metallizing System / Cs I Evaporation Vacuum Deposition System 0

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
