PVD Thin Film Deposition System Sputtering for phone case , Thermal Evaporation Equipment For Electronics
Thin Films Deposition Vacuum Sputtering + Thermal Evaporation System Applications:
ABS one-time using tableware, EMI shielding and NCVM films in electronic products; Decorative items, Metallic finishing, Chroming, Aluminum metalizing purpose on plastic parts, construction material, atrs&craft etc.
Coating Functions: Protective coating, functional coating, decoration coatings
Film: Metal film, semi-transparent film, Mobile phone EMI, NCVM, Dielectric film; with proper coating process/ coating recipes, it can achieve desired results for such variables as thickness, uniformity, adhesion strength, stress, grain structure, optical or electrical properties etc.
Thin Films Deposition Vacuum Sputtering + Thermal Evaporation System machine, the model: RTEP-SP series consist of vacuum coating chamber , vacuum pumping system, deposition system, cooling system , electrical control system , workpiece rotating rack. It is a duel function peice of equipment, the evaporation function is a high quality coating aluminum on the surface of plastic, while the magnetron sputtering function is mainly specialized for plating stainless steel on the product surface.
Thermal Evaporation and Sputtering Metalizing Machine Features:

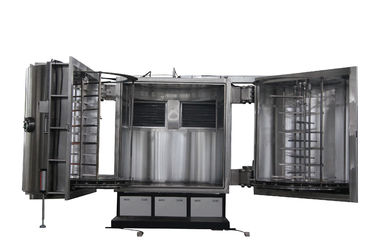

Dual chambers for independent loading operations.
Four types of coating process modes available for selection.
Option: RF generators or magnetron sputtering source can be installed for surface coating.

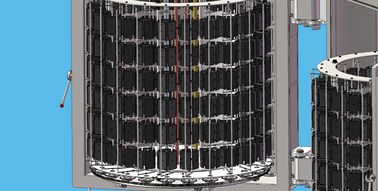

Uses planetary rotation mechanism to achieve good film uniformity on curved surface substrates.
Thin Films Deposition Vacuum Sputtering + Thermal Evaporation System machine Standard Models:
| Model | Size(mm) | Substrate Jigs (Qty.) | Evaporation Power(kVA | Cathode (KW) | Cycle Time |
Electrical Power |
| RTEP1212-SP | 1200xH1200 | 6,8 | 20 | DC30 | 10'~40' depends on Product | 3Phase/AC380V,50HZ |
| RTEP1214-SP | 1200xH1400 | 6, 8,16 | 20 | AC36 | ||
| RTEP1414-SP | 1400xH1400 | 6,16 | 35 | DC30 | ||
| RTEP1416-SP | 1400xH1600 | 8.16 | 35 | DC35 | ||
| RTEP1616-SP | 1600xH1600 | 8.16 | 35 | DC50 | ||
| RTEP1618-SP | 1600xH1800 | 8.16 | 35 | DC50 |
Tungsten Filament Evaporation sources
Why us?
Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.
Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.
Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
