PVD protects the environment, saves the blue planet.
Royal Technology VACUUM DEPOSITION MACHINE manufacturer.
----Standardization, Precision, Stabilizaiton
| Place of Origin: | Made in China |
|---|---|
| Brand Name: | ROYAL |
| Certification: | CE |
| Model Number: | RTAC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation. |
| Delivery Time: | 12 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Technique: | PVD, Arc Evaporation | Coating Color: | Gold, Rose Gold, Black, Silver, IP Blue, IP Gold Etc. |
|---|---|---|---|
| Coating Film: | Decorative Film | Technology: | Ion Coating,Multi Arc Ion,Magnetron Sputtering+ Multi-arc Ion Coating,Vacuum Plating |
| High Light: | titanium nitride coating equipment,tin coating machine |
||

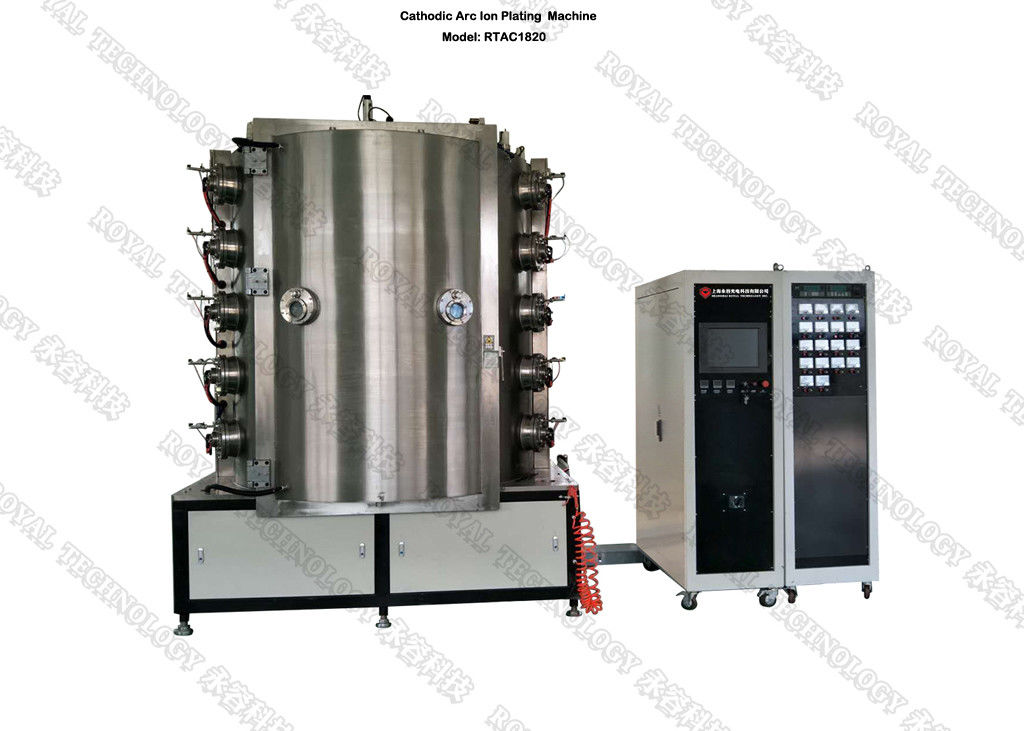

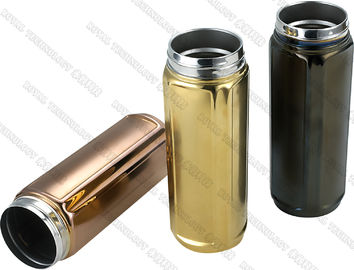

TiN PVD Plating Machine, PVD TiN Coating Equipment on Thermos Cup For Wine Coffee Beer Glass Bottles
PVD TiN Plating Technology:
Advantages
Many bright colors of final finishings
Excellent scratch resistance
Enables longer life of products
Environmentally-friendly process
Robust and high volume design machine
HMI friendly operation system
Low maintenance
Low cost of ownership
Applications
Bathroom and shower fixtures
Sanitary ware and plumbing applies
Door handles, fasteners, safe and locks
Glass and ceramic products
Eyewear
Writing Instruments
Only to name a few, but for more applications, please contact Royal Technology
TiN PVD Coating Machine Specifications
| MODEL | RTAC0910 | ||||||||||
| MATERIAL | Stainless Steel (S316L) | ||||||||||
| CHAMBER SIZE | Φ900*1000mm (H) | ||||||||||
| PUMP SYSTEM | Rotary Piston Vacuum Pump (Mechanical) | ||||||||||
| Rotary Vane Vacuum Pump | |||||||||||
| Roots Vacuum Pump | |||||||||||
| Turbo Molecular Pump | |||||||||||
| TECHNOLOGY | Ion Plating + Bias Power Bombardment | ||||||||||
| CONTROL | PLC(Programmable Logic Controller) | ||||||||||
| GAS | Gas Mass Flow Meters | ||||||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||||||||||
| Depositon Area |
Deposition area Φ680×600mm (H)； 10 x Φ150mm；8 x Φ180mm； 6 x Φ210mm, for option. |
||||||||||
| HEATING | Heater, up to 450℃ | ||||||||||
| POWER MAX. | 70 KW | ||||||||||
| AVERAGE POWER CONSUMPTION | 40KW (Approx.) | ||||||||||
Customized machine sizes are also available based on specified demanded products.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
