Cooper Thin Film Sputtering Deposition Machine , High Thermal resistance film Coating Equipment

1 set
Cooper Thin Film Sputtering Deposition Machine , High Thermal resistance film Coating Equipment
Features Gallery Product Description Request A Quote
Applications: Al2O3, AlN Ceramic Circuit Boards, Al2O3 Plates On LED, Semiconductor
Film Features: Better Thermal Conductivity, Strong Adhesion, High Density, Low Production Cost
Operating Model: Full Automatically /Semi-Auto/ Manually
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

thin film coating equipment


dlc coating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: DPC1215+
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 6 sets per month
Product Description

Cooper Magnetron Sputtering Coating Plant on Semiconductor equipment / Ceramic Chips Directly Plating Copper Sputtering Equipment


Cooper Magnetron Sputtering Coating Plant on Ceramic Radiating Substrate

The DPC process- Direct Plating Copper is an advanced coating technology applied with LED / semiconductor / electronic industries. One typical application is Ceramic Radiating Substrate.

Cooper conductive film deposition on Al2O3, AlN, Si, Glass substrates by PVD vacuum sputtering technology,  compared with traditional manufacturing methods:  DBC  LTCC  HTCC, the features:

1. Much lower production cost.

2. Outstanding thermal management and heat-transfer performance

3. Accurate alignment and pattern design,

4. High circuit density

5. Good adhesion and solderability


Royal technology team assisted our customer to developed the DPC process successfully with PVD sputtering technology.
Due to its advanced performance, the DPC substrates are widely used in various applications:

High brightness LED to increase the long life time because of its high heat radiation performance, Semiconductor equipment, microwave wireless communication, military electronics, various sensor substrates, aerospace, railway transportation, electricity power , etc

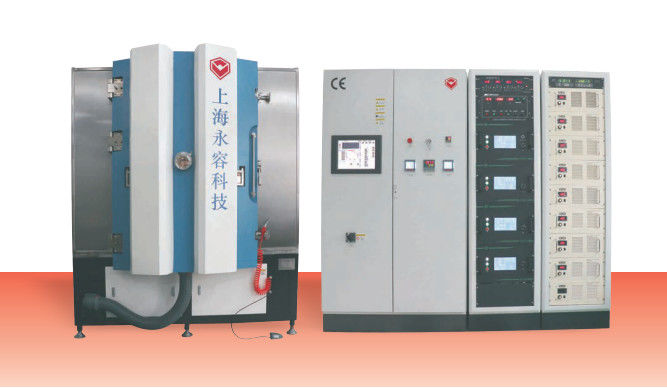

RTAC1215-SP equipment is exclusively designed for DPC process which get the cooper layer on substrates. This equipment utilizes PVD physical vapor deposition principle, with multi-arc ion plating and magnetron sputtering techniques to obtain the ideal film with high density, high abrasion resistance, high hardness and strong binding in high vacuum environment. It is the crucial step for rest DPC process.


Copper Sputtering Coating Machine Key Features


1. Equipped with 8 steer arc cathodes and DC Sputtering Cathodes, MF Sputtering Cathodes, Ion source unit.

2. Multilayer and co-deposition coating available

3. Ion source for plasma cleaning pre-treatment and Ion-beam assisted deposition to enhance the film adhesion.

4. Ceramic/ Al2O3/AlN substrates heating up unit;

5. Substrate rotation and revolution system, for 1-side coating and 2-sides coating.



Copper Sputtering Coating Machine Specifications



1. Ultimate Vacuum Pressure: better than 5.0×10-6 Torr.

2. Operating Vacuum Pressure: 1.0×10-4 Torr.

3. Pumpingdown Time: from 1 atm to 1.0×10-4 Torr≤ 3 minutes ( room temperature, dry, clean and empty chamber)

4. Metalizing material (sputtering + Arc evaporation): Ni, Cu, Ag, Au, Ti, Zr, Cr etc.

5. Operating Model: Full Automatically /Semi-Auto/ Manually



The vacuum coating machine contains key completed system listed below:

1. Vacuum Chamber

2. Rouhging Vacuum Pumping System (Backing Pump Package)

3. High Vacuum Pumping System ( Magnetically Suspension Molecular Pump)

4. Electrical Control and Operation System

5. Auxiliarry Facility System (Sub System)

6. Deposition System


Cooper Thin Film Sputtering Deposition Machine , High Thermal resistance film Coating Equipment 0





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
