Automotive Chrome Mirros Sputtering Machine, Turnkey Car Mirrors Manufacturing Machines, Automotive Chrome Mirror Line
1 set
MOQ
negotiable
Price
Automotive Chrome Mirros Sputtering Machine,  Turnkey Car Mirrors Manufacturing Machines, Automotive Chrome Mirror Line
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTSP
High Light:

magnetron sputtering machine

,

magnetron sputtering equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Film Features: High Reflective, Excellent Corrosion And Wear Resistance
Car Mirror Film Properties: Highly Reflective Solar Collectors, Selectively Reflective Corrosion-proof, Anti-glaring Blue Ar Mirrors.
Machine Features: High Productivity, High Film Uniformity, Fast Cycle
Product Description





Automotive Chrome Mirros Sputtering Machine, Turnkey Car Mirrors Manufacturing Machines, Automotive Chrome Mirror Line

  Royal Technology provides you not only the production line, but takes full responsibility for the coating processes & soultions. Qualified sub-suppliers will provide the auxiliary equipment, such as cleaning line, heat-curving glass machine, cutting machine, quality inspection & control systems and fixturing. We can arrange relevant training programs for employees on all levels of equipment use. Many of built projects are turnkey.

RTSP series vacuum coating system is available for manufactures who are looking for high productivity and total coating solutions.

Benefit


Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts Royal Technology has been pursuing.

Compared with traditional wet eletroplating, the PVD silver ion plating process generates the brighter and higher reflective film. Thus it widely used for decoration and reflection industries. The substrates are various: plastic till metal, ceramic, glass, stainless steel etc.

As an advanced coating technology which can reduce up to 80% production cost and the most important is the great surface finishing.




SPECIFICATIONS
MODEL  RTSP1616
TECHNOLOGY PVD Sputtering Deposition
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1600*1600mm (H)
CHAMBER TYPE Cylinder, vertical single door
EVAPORTATION SYSTEM Planetary Driving or Revolution Driving
DEPOSITION MATERIAL Silver, Copper, Chrome, Stainless Steel, Aluminum etc.
DEPOSITION SOURCE Cylinder or Plannar Sputtering Targets (2sets)
DC POWER SUPPLY 2 sets * 40KW
CONTROL PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM Rotary Plunger Vacuum Pump 1 set
Rotary Vane Vacuum Pump 1 set
Roots Vacuum Pump 1 set
Diffusion Pump 2sets
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cold Water
POWER MAX. 115KW (Approx.)
AVERAGE POWER CONSUMPTION 70KW (Approx.)
GROSS WEIGHT 9.0T (Approx.)
FOOT PRINT ( L*W*H) 4500*2200*2400MM
POWER ELECTRICAL 380V/3 phases/50HZ ( EU-CE compliant)
Remarks:

Capacity:
Planetary Driving Method, capacity: 240 pieces/batch
(estimated, mirror size: 150*250mm)

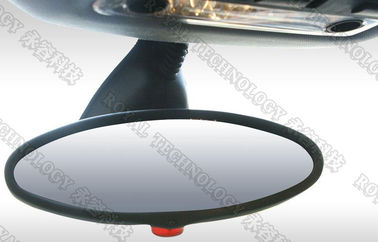

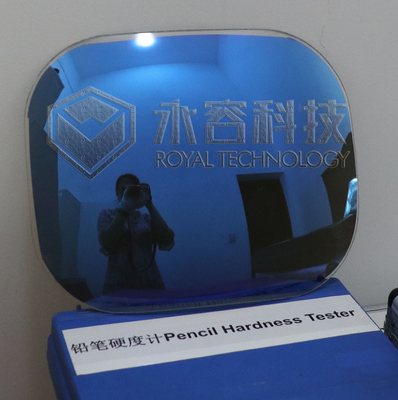

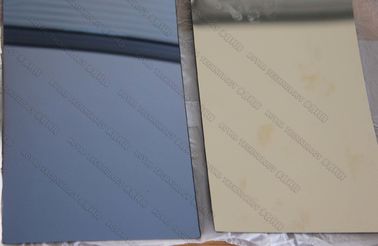

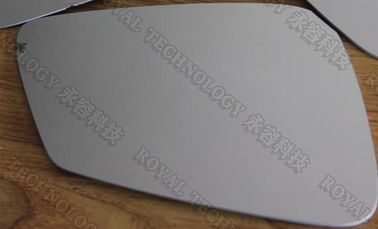

Automotive Chrome Mirros Sputtering Machine,  Turnkey Car Mirrors Manufacturing Machines, Automotive Chrome Mirror Line 0



Automotive Chrome Mirros Sputtering Machine,  Turnkey Car Mirrors Manufacturing Machines, Automotive Chrome Mirror Line 1





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
