Stainless Steel Precision Fasteners Graphite Coating, SS screws TiN gold and TiC black Meallizing Equipment
1 set
MOQ
negotiable
Price
Stainless Steel Precision Fasteners Graphite Coating, SS screws TiN gold and TiC black Meallizing Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1250-SPMF
High Light:

thin film coating equipment

,

dlc coating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Deposition Sources: Steered Cathodic Arc + MF Sputtering Cathode
Technique: PVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications: Steel Precision Fasteners, Screws, Camera Metals
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Product Description







Precision Fasteners PVD Thin Film  Plating Machine / Nano Thin Film PVD Decoration Finishes





What is PVD?


PVD ( is short name of Physical Vapor Deposition) is a vacuum coating process to produce a conformal metal-based thin film that can be uniformly deposited on electrically conductive surfaces. Using the Arc ion evaporation and magnetron MF sputtering method, a single coating layer provides ample coverage without modifying the surface profile. This technique is used in many electronic industries including optical media, optics and semiconductor components.



PVD Thin Film Properties

  • Exceptional aesthetic finish
  • Uniform coating thickness
  • Superior resistance to wear and corrosion
  • PVD coating has a high level of hardness

Precision Fasteners PVD Thin Film Plating Machine is applied with fasteners and fittings like screws, bolts, crushes, fittings, caps used in cosmetics, electronic products, mechanical machines, automotive industries are widely using the PVD technology to get variety of Panton colors, range of gold, black, blue, grey, silver, rainbow, bronze, champage etc.



Precision Fasteners PVD Thin Film Plating Machine Deposition Sources
Steered Circular Arc sources for evaporation of solid metal target;
2 pairs of MF unblanced sputtering cathodes for graphite thin film layer deposition;
Bias Power Supply for ion bomboardment to form the plasma area for pre-treatment;
Anode Linear Ion Source Unit ( for optional) PACVD and PECVD processing;
Cryopump ( Polycold) for water molecular condensation ( for optional)


Precision Fasteners PVD Thin Film Plating Machine Structures
1. Vacuum Chamber
2. Rouhging Vacuum Pumping System (Backing Pump Package)
3. High Vacuum Pumping System ( Magnetically Suspension Molecular Pump)
4. Electrical Control and Operation System
5. Auxiliarry Facility System (Sub System)
6. Deposition System: MF sputtering cathode, MF power supply, Bias Power Supply Ion source for optional

Precision Fasteners PVD Thin Film Plating Machin Performance
1. Ultimate Vacuum Pressure: better than 5.0×10-6 Torr.
2. Operating Vacuum Pressure: 1.0×10-4 Torr.
3. Pumpingdown Time: from 1 atm to 1.0×10-4 Torr≤ 3 minutes ( room temperature, dry, clean and empty chamber)
4. Metalizing material (sputtering + Arc evaporation): Ni, Cu, Ag, Au, Ti, Zr, Cr, TiN, TiC, TiAlN, CrN, CrC, etc.
5. Operating Model: Full Automatically /Semi-Auto/ Manually


Precision Fasteners PVD Thin Film Plating Machin Specifications



MODEL RTAC1250-SPMF
TECHNOLOGY MF Magnetron Sputtering + Ion Plating
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1250 * H1250mm
CHAMBER TYPE Cylinder, vertical, 1-door
SPUTTERING SYSTEM Exclusively design for thin black film deposition
DEPOSITION MATERIAL Aluminum, Silver, Copper, Chrome, Stainless Steel,
Nickel
DEPOSITION SOURCE 2 sets MF Cylindrical Sputtering Targets + 8 Steered Cathodic Arc Sources + Ion Source For optional
GAS MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL PLC(Programmable Logic Controller) +
PUMP SYSTEM SV300B - 1 set (Leybold)
WAU1001 - 1 sets (Leybold)
D60T- 1 set (Leybold)
Turbo Molecular Pumps: 2* F-400/3500
PRE-TREATMENT Bias power supply: 1*36 KW
SAFETY SYSTEM Numerous safety interlocks to protect operators
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W3000*H2000mm
TOTAL WEIGHT 7.0 T
FOOTPRINT ( L*W*H) 5000*4000 *4000 MM
CYCLE TIME 30~40 minutes (depending on substrate material,
substrate geometry and environmental conditions)
POWER MAX.. 155 KW
AVERAGE POWER
CONSUMPTION (APPROX.)
75 KW





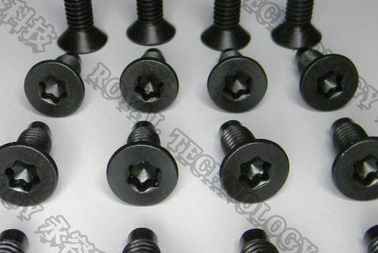

 Stainless Steel Precision Fasteners Graphite Coating, SS screws TiN gold and TiC black Meallizing Equipment 0



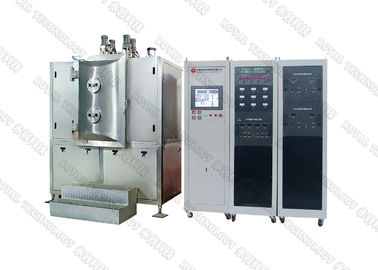

Stainless Steel Precision Fasteners Graphite Coating, SS screws TiN gold and TiC black Meallizing Equipment 1




Customized machine sizes are also available based on specified demanded products.

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
