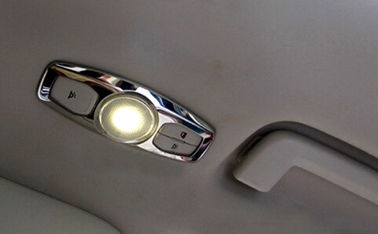

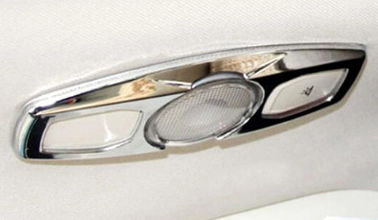

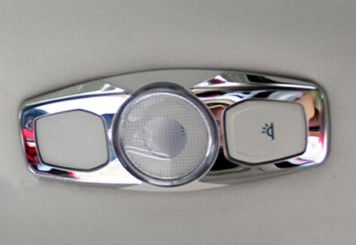

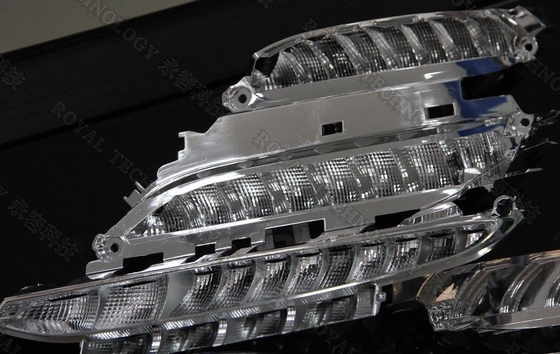

Car Accessories ABS Reading Light Lamp Cover Trim PVD Vacuum Coating Machine, Automotive Logo Billboard Vacuum Chroming
Why us?
Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.
Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.
Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.

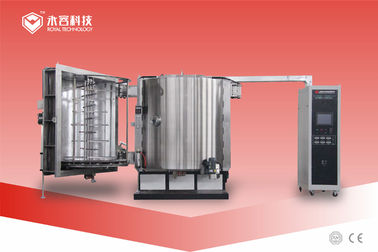

Aluminum Thermal Evaporation Coating System
Summary: The RTEP6638 resistance evaporation coating equipment is a cube chamber model for PVD Chrome metalizing system was customized designed and manufactured for Car LOGO board reflection film deposition.
Max. Size substrate: Diameter 5500mm, depth: <300mm.
Capacity: 2 pieces for max. Size product; 4~12 pieces depends on dimensions.
About Thermal Evaporation Filament Technology: It Introducing the work pieces into the vacuum chamber, when the chamber's vacuum pressure is up to 5.0*10-2～8.0×10-3Pa with different stage of vacuum pumps ( Rotary Piston Vacuum Pump, Rotary Vane Pump, Roots Vacuum Pump,Diffusion Pump) , and then evaporate the Chrome filaments which hold in the tungsten filament ( or board). When the work pieces are turning around in a rotary driving system, the chrome material would deposit on the substrates surface and generate a highly uniform coating layer.

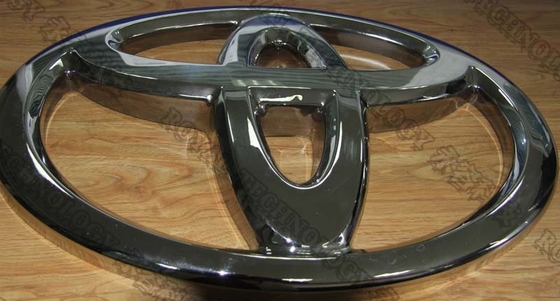

Finishing Properties: PVD chrome on PMMA (Acrylic) surface, which generates the outstanding coating layers as below: During the day time, sign symbols look like solid metal ( stainless steel effect); while at night, they are illuminated ( LED light inside is installed ) from front, back and side views.
Built Time: 2014 ~ 2015
Type:
Design Features:
Technical Specifications:
1. Ultimate Vacuum Pressure: better than 5.0×10-6 Torr.
2. Operating Vacuum Pressure: 1.0×10-4 Torr.
3. Pumping down Time: from 1 atm to 1.0×10-4 Torr≤3 minutes ( room temperature, dry, clean and empty chamber)
4. Metalizing material ( evaporation): Al, Cr, Sn, Ti, SS, Cu… etc.
5. Operating Model: Full Automatically /Semi-Auto/ Manually
The vacuum coating machine contains key completed system listed below:
1. Vacuum Chamber
1.1 Size: Inner Length: 6600mm
Inner Height: 3800mm
Inner Width: 1300mm
1.2 Material: Vacuum Chamber: SS41 mild steel
Door and flanges: SS41 mild steel
Chamber strengthen structure: SS41 mild steel, with painted finishing surface treatment.
Chamber chassis SS41 mild steel with painted finishing surface treatment.
1.3 Evaporation Shield : SUS304
1.4 View Window: on chamber door
1.5 Vacuum Chamber Venting Valve (including silencer)
1.6 Door: SS41 mild steel
2. Roughing Vacuum Pumping System (Backing Pump Package)
3. High Vacuum Pumping System (Diffusion Pump + Cold trap device)
4. Electrical Control and Operation System- PLC+ Touch Screen
4.1 Main circuit: None-fuse breaker switch, electromagnetic switch, C/T in series type
4.2 Evaporation Power
4.3 Evaporation Control System
4.4 Operation System: Touch Screen + PLC, recipe control and data logging, Auto shutdown, auto evacuation, auto coating
4.5 Vacuum Pressure Measuring System
Vacuum Gauge: Pirani + Penning gauge
Thermocouple Gauge: 760 Torr ~ 5*10-4 Torr
4.6 Alarm System: Compressed air pressure , Cooling water flow, Mis-operation
4.7 Power Load Indicator: Voltage indicator and load current indicator
5. Deposition System
5.1 Tungsten filament evaporation source
5.2 Cr/Al wires
6. Sub-System
6.1 Air Compressed Valve Control System
6.2 Cooling Water System:Water flow pipe and switch valve system
6.3 Polycold (-120~-145℃) Brooks Cryopump for option.
7. Working Environment
Compressed Air: 5~8kg/cm2
Cooling Water: Water-In Temperature: 20~25℃, 200 Liter/min,
Water-In Pressure: 2~3 kg/cm2,
Power: 3 Phase 380V 50Hz(60Hz), 300kVA
Installation Area: (L*W*H) 15000*6800*4800mm
Exhaust: Vent for mechanical pumps
Cleaning Room is highly recommended
Royal technology has developed and built the whole supplies chains for Car LOGO board PVD metalizing service. From mold design & manufacturing, thermal vacuum forming process, UV curing base/top coatings; PVD chroming metalizing till LED lighting assemble, we are able to provide the turnkey coating solutions.
