Vertical Vacuum Coating Machine, EMI Shielding Films MetallizationSystem, SS sputtering depostion, Copper evaporation
PVD EMI shileding Coatings: Metal film, semi-transparent film, Mobile phone EMI, NCVM, Dielectric film.
PVD EMI shileding Coating Material: Cu, Silver, Stainless Steel, Ni, Cr etc.
EMI shileding surface treatment has been applied with cell phone industry for years. Our customers are:
Sumgsung, Iphone, Lenovo, Huawei phones manufactures.

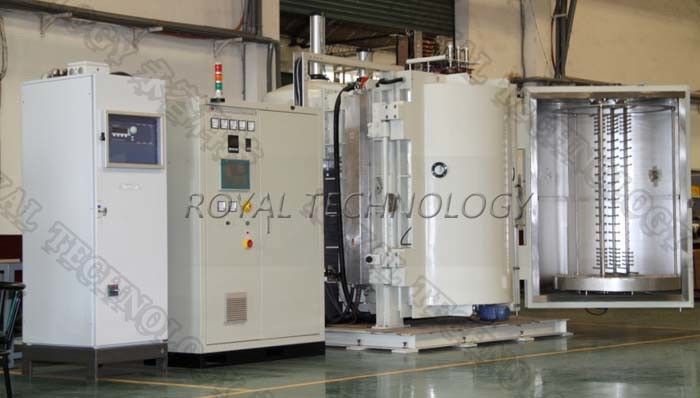

EMI shielding vacuum coater:
PVD EMI shileding Coating Benefits:
1) Process is environmentally friendly
2) Low investment and high payback for owner;
3) High volume production, fast cycle, low cost;
4) Unique design is friendly operation and low maintenance.
EMI Shielding Film Coating Properties
Film thickness : 1.5 ~ 3 microns depends on the requirement.
Film resistance: (ohm) better than 0.5Ω
Adhesion: 3M810 tape > 5B
PVD EMI shileding Coating Specifications
| MODEL | RTEP1616-SP | ||||||
| TECHNOLOGY |
THERMAL EVAPORATION, TUNGSTEN ,FILAMENT, glow discharge, magnetron sputtering |
||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1600*1600mm (H) | ||||||
| CHAMBER TYPE | Cylinder, vertical, 2-doors | ||||||
| EVAPORTATION SYSTEM | EXCLUSIVE DESIGN FOR EMI metallization | ||||||
| DEPOSITION MATERIAL | Silver, Copper, Stainless Steel, Nickel | ||||||
| DEPOSITION SOURCE | TUNGSTEN FILAMENT + DC Sputtering Cathode | ||||||
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen | ||||||
| PUMP SYSTEM | Rotary Pistonr Vacuum Pump | ||||||
| Rotary Vane Vacuum Pump | |||||||
| Roots Vacuum Pump | |||||||
| Diffussion Pump + Brooks Polycold | |||||||
| PRE-TREATMENT | Plasma Cleaning | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L9000*W4200*H3000mm | ||||||
| TOTAL WEIGHT | 10.5 T | ||||||
| CYCLE TIME |
20 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 80KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 45KW |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
