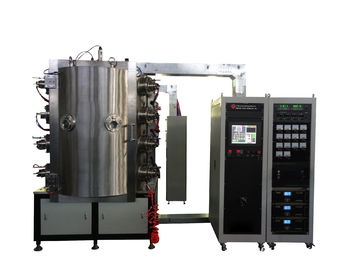

SS tableware Titanium Nitride Coating Machine / Stainless Steel Tableware Ion cooper Plating
Tableware TiN Gold Coating Machine Advantages
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.
5. Fast deposition rates and high quality surface finishes.
Tableware TiN Gold Coating Machine Specifications
| MODEL | RTAC1215 | |||||||
| TECHNOLOGY | Magnetron Sputtering + Ion Plating | |||||||
| MATERIAL | Stainless Steel (S304) | |||||||
| CHAMBER SIZE | Φ1200*H1500mm | |||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | |||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc. |
|||||||
| DEPOSITION SOURCE | 14 sets steered arc cathodes | |||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | |||||||
| CONTROL AND OPERATION |
PLC(Programmable Logic Controller) + Touch Screen |
|||||||
| PUMP SYSTEM | SV300B - 2 sets (Leybold) | |||||||
| WAU1001 - 1 sets (Leybold) | ||||||||
| D60T- 1 set (Leybold) | ||||||||
| Turbo Molecular Pumps: 3* F-400/3500 | ||||||||
| PRE-TREATMENT | Bias power supply: 1*36 KW | |||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators | |||||||
| COOLING | Cold Water | |||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | |||||||
| 460V/3 phases/50HZ ( Asia compliant) | ||||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | ||||||||
| FOOTPRINT | L3000*W3000*H2000mm | |||||||
| TOTAL WEIGHT | 7.0 T | |||||||
| FOOTPRINT | ( L*W*H) 5000*4000 *4000 MM | |||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
|||||||
| POWER MAX.. | 155 KW | |||||||
|
AVERAGE POWER CONSUMPTION (APPROX.) |
75 KW | |||||||
Please contact us for more specifications, Royal Technology is honored to provide you total
coating solutions.
