SS kitchen basin Titanium Nitride Coating Machine, TiN gold decorative coating on kitchenwares
1 set
MOQ
negotiable
Price
SS kitchen basin Titanium Nitride Coating Machine, TiN gold decorative coating on kitchenwares
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

titanium nitride coating equipment

,

titanium coating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Specifications
Vacuum Technology: Arc Evaporation, Arc Ion Plating
Deposition Sources: Cylinder Arc Or Circular Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

                   Stainless Steel Pot Titanium Nitride Coating Machine, TiN gold decorative coating on stainless steel kitchenware



TiN Gold Coating Machine Advantages


1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.



Advantages
Many bright colors of final finishings
Excellent scratch resistance
Enables longer life of products
Environmentally-friendly process
Robust and high volume design machine
HMI friendly operation system
Low maintenance
Low cost of ownership



Applications
Bathroom and shower fixtures
Sanitary ware and plumbing applies
Door handles, fasteners, safe and locks
Glass and ceramic products
Eyewear
Writing Instruments



Only to name a few, but for more applications, please contact Royal Technology







Tableware TiN Gold Coating Machine Specifications



MODEL RTAC1215
TECHNOLOGY Magnetron Sputtering + Ion Plating
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1200*H1500mm
CHAMBER TYPE Cylinder, vertical, 1-door

DEPOSITION MATERIAL Aluminum, Silver, Copper, Chrome, Stainless Steel,
Nickel, Gold, TiAl, Au alloy, Ag etc.

DEPOSITION SOURCE 14 sets steered arc cathodes
GAS MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL AND OPERATION

PLC(Programmable Logic Controller) +

Touch Screen


PUMP SYSTEM SV300B - 2 sets (Leybold)
WAU1001 - 1 sets (Leybold)
D60T- 1 set (Leybold)
Turbo Molecular Pumps: 3* F-400/3500
PRE-TREATMENT Bias power supply: 1*36 KW
SAFETY SYSTEM Numerous safety interlocks to protect operators
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W3000*H2000mm
TOTAL WEIGHT 7.0 T
FOOTPRINT ( L*W*H) 5000*4000 *4000 MM
CYCLE TIME 30~40 minutes (depending on substrate material,
substrate geometry and environmental conditions)

POWER MAX.. 155 KW

AVERAGE POWER

CONSUMPTION (APPROX.)

75 KW

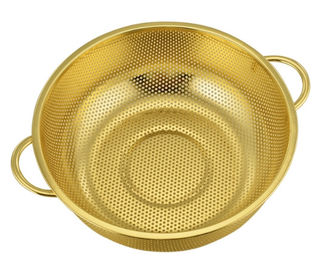

SS kitchen basin Titanium Nitride Coating Machine, TiN gold decorative coating on kitchenwares 0

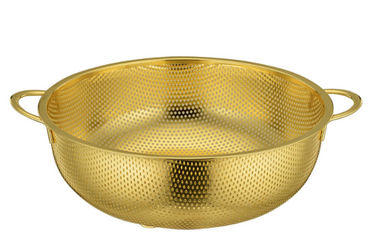

SS kitchen basin Titanium Nitride Coating Machine, TiN gold decorative coating on kitchenwares 1

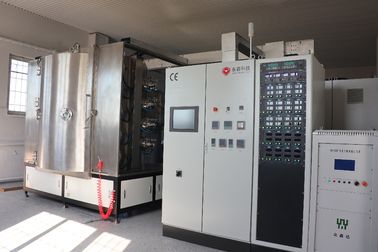

SS kitchen basin Titanium Nitride Coating Machine, TiN gold decorative coating on kitchenwares 2



Why us?

  1. Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.

  2. Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.

  3. Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.





Please contact us for more specifications, Royal Technology is honored to provide you total

coating solutions.
