Lipstick cap Aluminum Evaporation Coating Unit , cosmetc PVD Vacuum Metalizing Machine

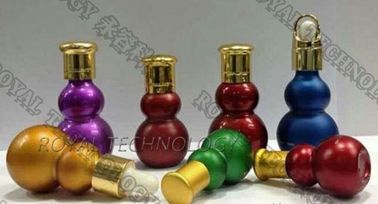

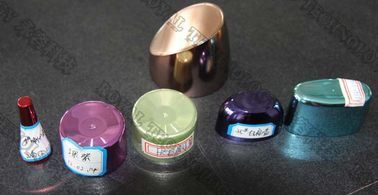

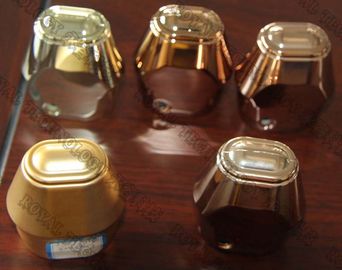

Lipstick cap Aluminum Evaporation Coating Machine uses the Thermal Resistant Evaporation technology to evaporate and deposit Aluminum wire on the slipper surface to give a high reflection and metal image. The Coating Process: Substrate Cleaning --> UV base coating --> PVD aluminum metalizing --> UV top coating ( lacquer or color pigment to get various colors)
Lipstick cap Aluminum Evaporation Coating Machine Features
A: PLC + Touch Screen Operation System, fully automatically control
B: Fast Vacuum pumping down time.
C: Work pieces are easy loading/uploading.
D: Easy access to the working environment for maintenance.
E: Robust structure design and high quality configurations

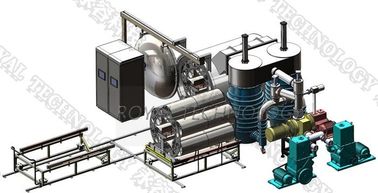

Lipstick cap Aluminum Evaporation Coating Machine Specifications:
| MODEL | RTEP 1820 | ||||||
| TECHNOLOGY | THERMAL EVAPORATION, TUNGSTEN ,FILAMENT, glow discharge | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1800*2000mm (L) | ||||||
| CHAMBER TYPE | Cylinder, vertical, 2 -doors | ||||||
| EVAPORTATION SYSTEM | exclusive design for helmet visors coating | ||||||
| DEPOSITION MATERIAL | Aluminum wire | ||||||
| DEPOSITION SOURCE | TUNGSTEN FILAMENT | ||||||
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen | ||||||
| PUMP SYSTEM | Rotary Piston Vacuum Pump | ||||||
| Rotary Vane Vacuum Pump | |||||||
| Roots Vacuum Pump | |||||||
| Difussion Pump + Brooks Polycold | |||||||
| PRE-TREATMENT | Plasma Cleaning ( None) | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L9000*W4500*H3600mm | ||||||
| TOTAL WEIGHT | 7.0T | ||||||
| CYCLE TIME | 15 minutes (depending on substrate material, substrate geometry and environmental conditions) | ||||||
| POWER MAX.. | 100KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 60KW |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
