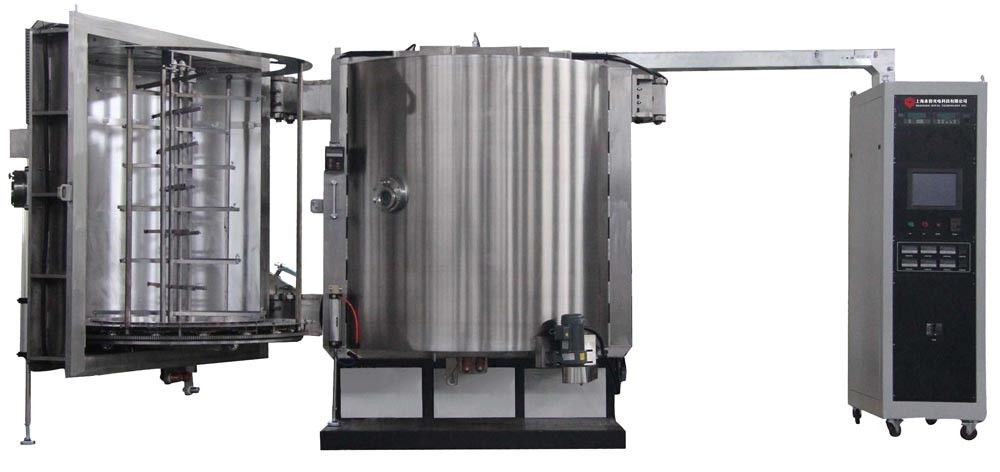

Vertical Vacuum Metalizing Machine, High Capacity Aluminum Metallizing Equipment
Vertical Vacuum Metalizing Machine, High Capacity Aluminum Metallizing Equipment
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: ROYAL
Certification: CE
Model Number: RTEP
High Light:

thermal evaporation equipment


vacuum deposition machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Supply Ability: 20 sets per month
Model: Vertical, 2-door Structure
Application: Plastic Flatware Silver Coating, Plastic Spoons, Plastic Forks, Plastic Knife, Plastic Cutlery Silver Coating
Coating Film: Aluminum,stainless Steel SUS316L
Name: Vacuum Metalizing Machine
Features: Fast Vacuum Evacuation System
Other Applications: Decoration Coatings
Product Description

 Vacuum Metalizing Machine For cigarette holder, Electronic Cigarette Components



Vacuum Metallizing Plant  contains the DC magnetron sputtering cathode and  tungsten filament evaporation sourcesto deposit the metal films, mostly like Aluminum or Stainless steel 316 L, which are healthy for human body.   Plus the anode layer ion source unit which is  used to generate plasma, to remove the contamination and water moleculare which gassing out during high vacuum environment , can highly improve the film adhesion.



PVD vacuum metallizing equipment design features:

  • 2-door structure machine for an independent loading operations, higher output
  • Robust structure design and high quality configurations
  • PLC + Touch Screen Operation System, fully automatically /Manually control
  • Fast Vacuum Evacuation System
  • Exclusively designed rotating Carousel structure for easy loading/uploading
  • Easy access to the working environment for maintenance


Deposition  properties:


Finishes are deposited within high vacuum environment, 100% environmentally friendly.
Highly reflective, brilliant and bright colors;
High volume production, low cost, ideal solution for mass production demand.


Other applications:

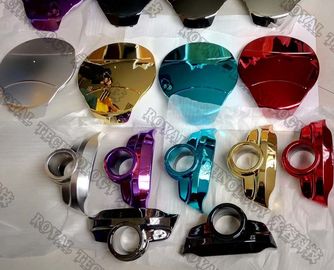

Decoration coatings: Plastic cutlery, Ceramic, Electronics product, Cellphone housing, NCVM applications, Decorative items, Metallic finish.
Coating Function:Protective coating, functional coating.
Film: Copper conductive film, Metal film, semi-transparent film, Mobile phone EMI, NCVM, Dielectric film.
Substrates:plastic parts, construction material, atrs&craft, electronics products etc



Other standardized models:


Model Size(mm) Substrate Jigs (Qty.) Evaporation Power(kVA Cathode (KW) Cycle Time



RTEP1212-SP 1200xH1200 6,8 20 DC30 10'~40' depends on Product 3Phase/AC380V,50HZ
RTEP1214-SP 1200xH1400 6, 8,16 20 AC36
RTEP1414-SP 1400xH1400 6,16 35 DC30
RTEP1416-SP 1400xH1600 8.16 35 DC35
RTEP1616-SP 1600xH1600 8.16 35 DC50
RTEP1618-SP 1600xH1800 8.16 35 DC50




Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
