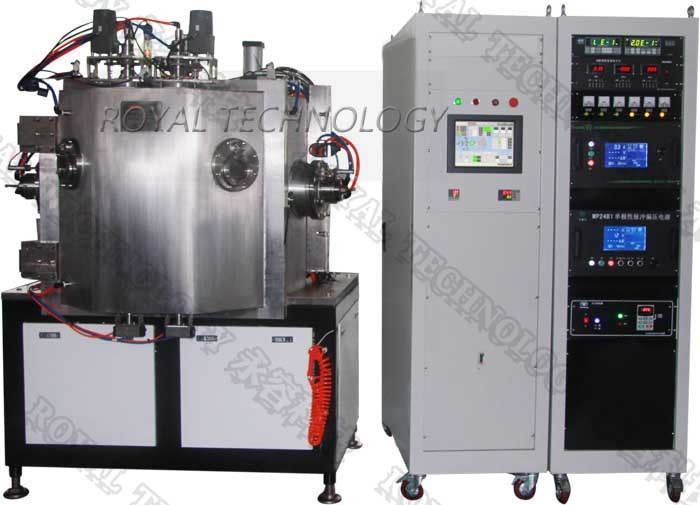

Metal punching mold tool plated film vacuum coating machine, Steel Vacuum Plating Machine
1. Metal punching mold tool Plating Machine General Information
The metal decoration ion plating machine is a high efficiency and 100% completely environmentally friendly PVD vacuum arc evaporation coating machine.
The metal decoration plating machine has features of fast deposition, high ionization rate, strong adhesion, droplets less advantages.
The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.
2. RTAC series Vacuum Arc Ion Plating Machine / Metal Decoration Ion Plating Machine mainly used to deposit various metal films and metal -alloy coatings, multiple-layer films.
2.1. Structure: deposition chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc.
2.2. Coating Colors: gold, black, brown, grey, chrome colors etc
2.3. Coatings properties: TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.
3. Metal Decoration Arc Plating Machine Models
|Chamber Inner size||900x1100mm||1000x1200mm||1250x1350mm||1400x1600mm||1600x1600mm|
|Power supply type||Arc power supply, filament power supply, pulse bias power supply|
|Structure of vacuum chamber||Vertical front door structure, rear air exhaust system and double-layer water cooling chamber|
|Material of vacuum chamber||stainless steel 304/316L|
|Ultimate vacuum||6.0x10-4Pa (unloading, clean, drying chamber)|
|Vacuum Pumping Speed||from atmosphere to 8.0*10-3Pa ≤15 minutes|
|Vacuum pumping system||Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
|Arc source||6 units or
|8 units or
|10 units or
|14 units or
|16 units or
|Bias power supply||20KW/set||20KW/set||30KW/set||40KW/set||50KW/set|
|Driving Model||Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
|Heating System||Controllable and adjustable from room temperature to 450°C
(PID temperature control)
|MFC||3-path or 4-path process gas flow control and display system, selective automatic gassing system|
|Cooling System||Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)|
|Control mode||Manual/automatic integration mode, touch screen operation, PLC or computer control|
|Alarm and protection||Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function|
|Other technical parameters||Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa|
|Remarks||The specific configuration of coating equipment can be designed according to process requirements of coating products|
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
