Cathodic Arc Deposition Equipment
Created with Pixso.

Stainless Steel Scissors TiN hard coating film coating Equipment

Stainless Steel Scissors TiN hard coating film coating Equipment

Brand Name: ROYAL
Model Number: RTAC
MOQ: 1 set
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 12 sets per month
Detail Information
Place of Origin:
Made in China
Certification:
CE
Deposition Sources:
Cathodic Arc Evaporation
Deposition Films:
TiN TiO Arc Plating
Applications:
Glass Beads, Glass Necklace, Glass Chains
Film Features:
Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location:
Shanghai City, China
Factory Location:
Shanghai City, China
Factory Location:
Shanghai City, China
Worldwide Service:
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service:
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service:
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service:
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service:
Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty:
Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty:
Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM:
Available, We Support Tailor Made Design And Fabrication
OEM & ODM:
Available, We Support Tailor Made Design And Fabrication
OEM & ODM:
Available, We Support Tailor Made Design And Fabrication
Packaging Details:
Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Supply Ability:
12 sets per month
Highlight:

hard coating machine

,

pvd coating equipment

Product Description

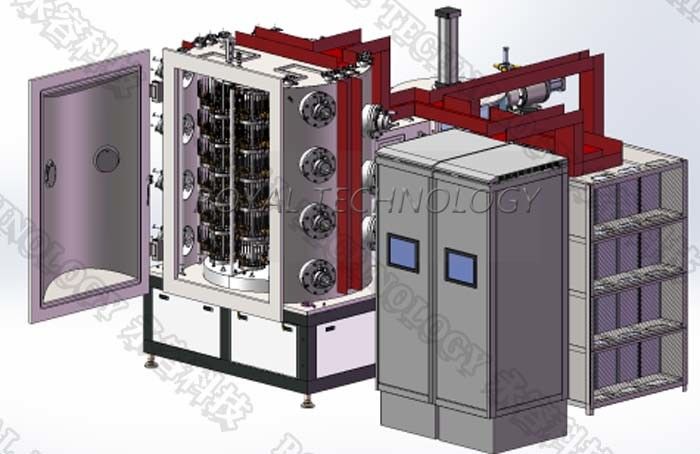

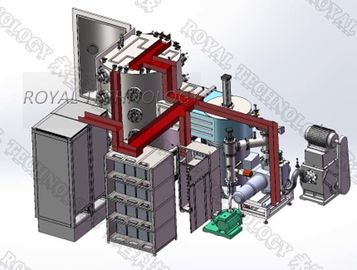

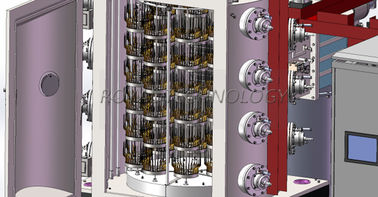

Stainless Steel Sewing Trimming Scissors PVD Plating Machine



MODEL RTAC-1616
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1600*1600mm (H)
CHAMBER TYPE Cylinder, vertical, front opening door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Bias Power Plasma Cleaning
POWER MAX. 100KW

AVERAGE POWER

CONSUMPTION

55 KW



Stainless Steel Sewing Trimming Scissors Ion Plating Technology

With PVD arc evaporation technology, we can get the range colors of gold, rose gold, high reflection of silver mirror, black, rainbow.



Arc PVD Coating Advantage:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.

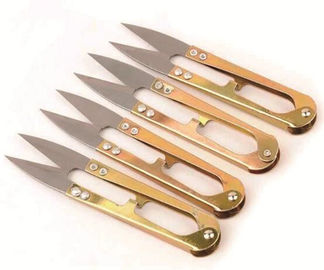

Stainless Steel Sewing Trimming Scissors Arc Coating Colors



Stainless Steel Scissors TiN hard coating film coating Equipment 0











Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
