Brass faucets PVD Plating Machine, SS Tube Faucets PVD Coatings
1 set
MOQ
negotiable
Price
Brass faucets PVD Plating Machine, SS Tube Faucets PVD Coatings
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1600
High Light:

metal coating services

,

vacuum coating services

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
PVD Coating Thickness: 0.5 ~ 3 Microns
Colors: Rose Gold, Copper, Blue, TiN Gold, Light Gold, Black Etc.
PVD Coating Technoogy: Cathodic Arc Plating + MF Magnetron Sputtering
Application: Bathroom Fittings, Faucets, Plumbings Etc.
Product Description

Faucets as important consumption of our daily life, consumers and manufactures are more focusing on the creative design & surface treatment process. PVD finish is more welcomed due to its low production cost, environmentally friendly, extremely durable, highly brilliant, and guaranteed for life against tarnishing advantages.

PVD is short name for Physical Vapor Deposition. This process creates a ionized thin films to the faucet resulting in the most durable finish available today. Products with PVD finish will not corrode, discolor, or tarnish.

Faucets with PVD finished last longer life time, can pass the Neutral salt spray test over 200 hours.

Applications

  • Brass faucets, brass taps, handles
  • Bathroom fittings like: zamak plates, plumbings, shower heads
  • Stainless steel pipe faucets,
  • ABS and PPS decorative components

PVD finish properties

  • Exceptional aesthetic finish
  • Uniform coating thickness and colors
  • Superior resistance to wear and corrosion
  • PVD coating has a high level of hardness
  • PVD coating is not discolor or tarnish with a proper daily take care

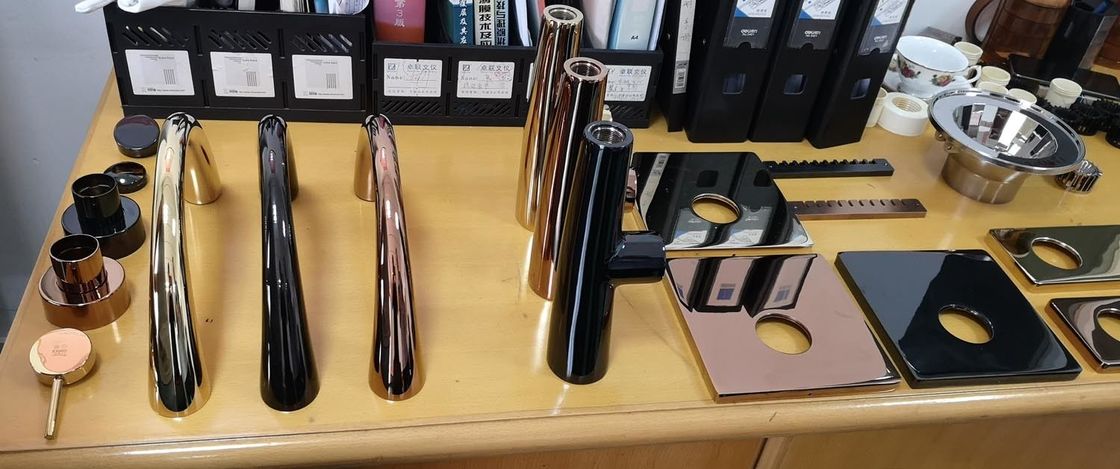

PVD finishes available

Brushed PVD colors

Mirror PVD colors

Matte PVD colors

Gold, rose gold, brass, charcoal grey, graphite black, bronze, blue, white Chrome, black nickle, stainless steel finishes, blue etc.

Brass faucets PVD Plating Machine, SS Tube Faucets PVD Coatings 0 Brass faucets PVD Plating Machine, SS Tube Faucets PVD Coatings 1
Brass faucets PVD Plating Machine, SS Tube Faucets PVD Coatings 2

Brass faucets PVD Plating Machine, SS Tube Faucets PVD Coatings 3



Royal technology provides you not only the coating system but the total coating solutions, we offer you turnkey-service.

From LPDC (low pressure die casting); peeling, cutting, CNC machining, robot grinding, automatically polishing line; till electroplating, ultrasonic cleaning, drying, PVD plating plants… the whole factory’s design plan and machines.
Each process’s operation you demand, we have experts to guide you.

Advantages

Royal Technology’s newest generation of PVD coating system with Remote Control and diagnosis functions: Industrial PC and Siemens PLC are equipped for more stable, more Powerful SCADA data processing capability.

  1. High ionization rate, high through put,
  2. Large capacity to satisfy mass production,
  3. IPC remote control and operation guidance
  4. Coating Process – online remote training by our own software program.
  5. Plug-in designed and fabricated coating system, installation can be accomplished with online instruction.



Technical Specifications



General Information

  1. The multi arc vacuum coating system mainly for decorative coatings.
  2. Benefits: eco-environment, easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.
  3. Coating Colors: gold, black, brown, grey, Chrome colors etc.
    Gold Colors: TiN, ZrN, TiN+Au, ZrN+Au
    Rose Gold Colors: TiCN, TiAlN, TiCN+Au-Cu, TiAlN+Au, Cu
    Chrome colors: CrN, Ti, Cr
    Gray Colors: stainless steel, stainless steel (N)
    Brown Colors TiCN, TiAlCN, ZrC
    Blue Color: TiO, CrO, TiALN
    Black Colors: TiC, TiC+iC, TiCN, TiAlN, TiAlCN
  4. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials
  5. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.

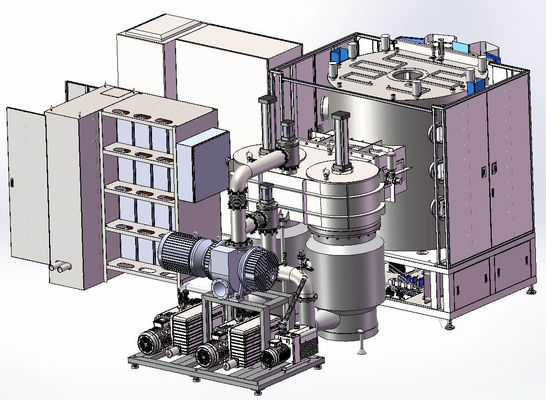

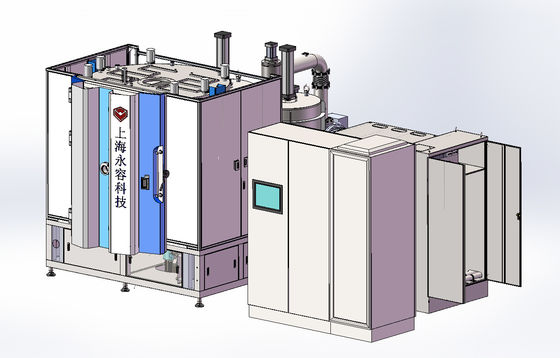

Features
This series equipment consists of: vacuum chamber, vacuum pumps, arc sources,
spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc. High lights of the design futures:
1. Flexibility: Arcs are standardized for flexible and quick exchange;
2. Versatility: can deposit variety of base metals and alloys; optical coatings, hard coatings, soft coatings, compound films and solid lubricating films on the metallic and non-metallic materials substrates. 3. Powerful pump set for short cycle time and high productivity.
4. Multiple deposition sources for different substrates materials.
5. Royal exclusive arc sources to guaranty high coatings quality, none color difference.
6. Turnkey coating solutions.

Performance

1 .Ultimate Vacuum Pressure: better than 8.0×10-4 Pa
2. Operating Vacuum Pressure: 1.0×10-2 Pa.
3 .Pumping down Time: from 1 atm to 8.0×10-3Pa≤15minutes ( @room temperature, clean and unloading)
4. Leaking Rate: 9.0-5 Pa m³/ sec. Or better than 0.67Pa in 1 hour after shut down the machine from ultimate pressure.
5. Deposition Materials: Stainless steel, Cr, Ti, TiAl, Zr … etc.
6. Deposition Sources: Arc cathodes
7. Operating Model: Full Automatically /Semi-Auto/ Manually
8. .Safety Circuitry and Interlocks: numerous safety interlocks to protect operators and equipment ( water, current etc.) I: Heatings: up to 250℃,

Description RTAC1600A+
Standard Applications Faucets, plumbings, furniture components, metal lamps, for high volume products

Deposition Chamber

(mm)

φ1600 * H1800

Maximum Loading

(kg)

1000

Central Driving

Effective Coating Area (mm)

8: φ900*H1500

10:φ1000*H1500

Planetary Driving

Effective Coating Area (mm)

8: φ350*H1400

10: φ290*H1400

Pulsed Bias Power

(KW)

48
Circular Arc Cathode (sets) 18
High Vacuum Pumps

2* Diffusion Pumps or

4* Turbo Molecular Pumps

Backing Pumps 1*SV630BF+1*WAU2001+1*TRP90

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.



Insite



Time: 2020

Location: Middle East

Brass faucets PVD Plating Machine, SS Tube Faucets PVD Coatings 4
