rose gold waterproof Metal Watches Gold Plating Machine , PVD Gold Plating Machine
Why us?
Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.
Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.
Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.

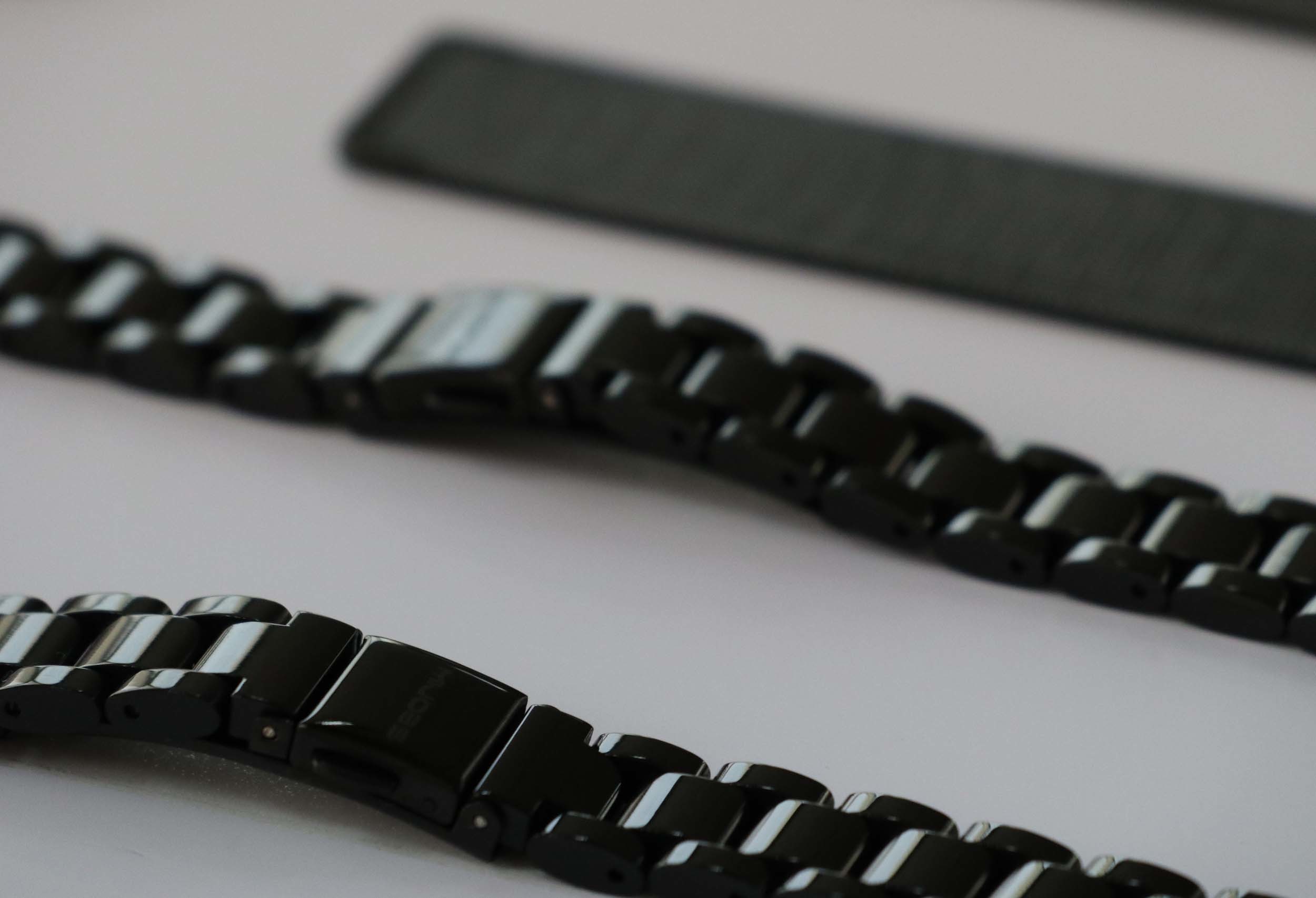

The Metal Watches Gold Plating Machine is particularly used for metal parts functional and decorative coatings, it provides high end quality plated films for metal jewelry, watches, handbags metal accessories, medical instruments, surgery tools, beauty tools, writing instruments like pen etc.
The standard model is RTAC1008-SP, the machine contains key deposition sources of:
1. 1 set MF Sputtering Cathodes, 1 set DC sputtering cathode; 3 sets Sputtering cathodes on top of chamber for spare using.
2. 6 sets cicular steered arc cathodes
3. 1 set anode layer Ion source unit for optional.
4. Bias Power Supply
Metal Watches and Jewelry Gold Plating Machine RTAC1008-SP Specifications
| MODEL | RTAC1008-SP | ||||||
| TECHNOLOGY | DC / MFMagnetron Sputtering + Ion Plating | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1000*H800mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| SPUTTERING SYSTEM | Exclusively design for IPG gold, silver sputtering deposition | ||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc. |
||||||
| DEPOSITION SOURCE | DC / MF Cylindrical Sputtering Targets + Cathodic Arc Sources + DC sputtering | ||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
| CONTROL | PLC(Programmable Logic Controller) + | ||||||
| PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
| WAU501- 1 sets (Leybold) | |||||||
| D60T- 1set (Leybold) | |||||||
| Turbo Molecular Pumps:1* F-400/3500 | |||||||
| PRE-TREATMENT | Bias power supply: 1*24 KW | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W3000*H2000mm | ||||||
| TOTAL WEIGHT | 7.0 T | ||||||
| FOOTPRINT | ( L*W*H)4000*3000 *3000 MM | ||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 55 KW | ||||||
|
AVERAGE POWER CONSUMPTION (APPROX.) |
30 KW |
The Metal Watches and Jewelry Gold Plating Machine chamber structure - RTAC1008-SP
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
