Vertical Orientation Glass Coating Machine, PVD Glass Smoking Weed Pipes Decorative Coatings
1 set
MOQ
negotiable
Price
Vertical Orientation Glass Coating Machine,  PVD Glass Smoking Weed Pipes Decorative Coatings
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

glass coating equipment

,

chrome plating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 12 sets per month
Specifications
Deposition Sources: Cathodic Arc Evaporation
Deposition Films: TiN TiO Arc Plating
Applications: Glass Beads, Glass Necklace, Glass Chains
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Product Description



glass pipes smoking weed PVD Plating Machine / Glass pipes Decorative PVD Coating Equipment







Glass pipes  are used in jewelry like necklace, chains of handbag accessories, decorations of lightings etc.

Glass pipes PVD Coating Technology

With PVD arc evaporation technology, we can get the range colors of gold, rose gold, high reflection of silver mirror, black, rainbow.



Arc PVD Coating Advantage:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.

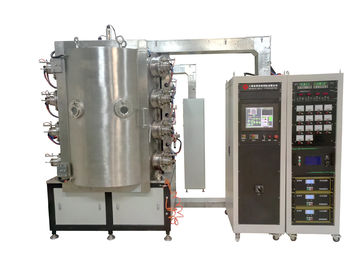

Glass pipes PVD Plating Machine



MODEL RTAC-1616
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1600*1600mm (H)
CHAMBER TYPE Cylinder, vertical, front opening door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Bias Power Plasma Cleaning
POWER MAX. 100KW

AVERAGE POWER

CONSUMPTION

55 KW



Glass Beads PVD  Coating Colors



Vertical Orientation Glass Coating Machine,  PVD Glass Smoking Weed Pipes Decorative Coatings 0

Vertical Orientation Glass Coating Machine,  PVD Glass Smoking Weed Pipes Decorative Coatings 1

Vertical Orientation Glass Coating Machine,  PVD Glass Smoking Weed Pipes Decorative Coatings 2









Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
