Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings
1 set
MOQ
negotiable
Price
Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1200A+
High Light:

vacuum metalizing equipment

,

vacuum metallization equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8~12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Chamber: Vertical Orientation, 1-door,
Material: Stainless Steel 304/316
Coating Colors: Brushed PVD Colors Mirror PVD Colors Matte PVD Colors
Product Description

Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings 0

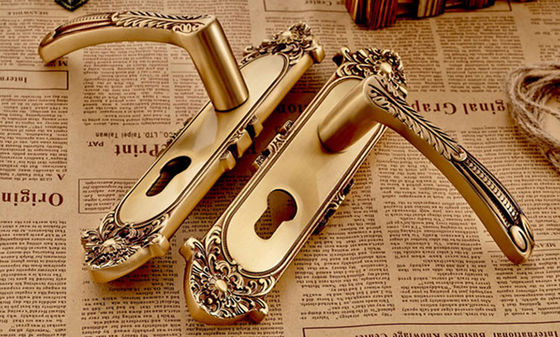

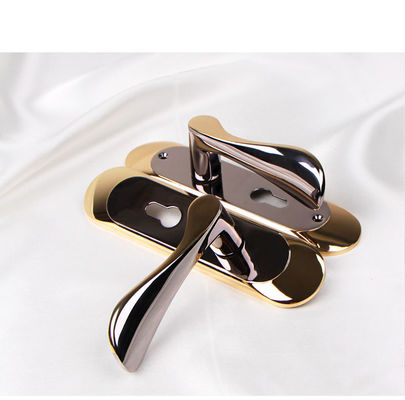

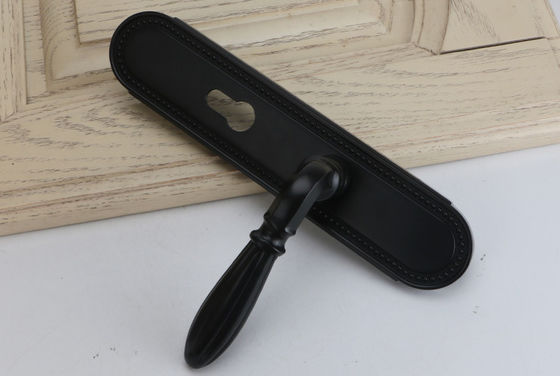

Metal door handles and security locks are usually made of Zamak (Zinc Alloy) or Aluminum Alloy, brass alloy. It requires a high quality of beautiful final finishes with various colors.

PVD Ion Plating technology has used so well in this application.

After proper surface pre-treatment before PVD coating, like polishing, brushing, or sandblasting; the PVD plating system gives various colors. The deposited films are pure metal or multiple layers like TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.

PVD finish properties

  • Exceptional aesthetic finish
  • Uniform coating thickness and colors
  • Superior resistance to wear and corrosion
  • PVD coating has a high level of hardness
  • PVD coating is not discolor or tarnish with a proper daily take care

PVD finishes available

  • Brushed PVD colors
  • Mirror PVD colors
  • Matte PVD colors

Gold, rose gold, brass, charcoal grey, graphite black, bronze, blue, white Chrome, black nickle, stainless steel finishes, blue etc.

Royal technology provides you not only the coating system but the total coating solutions, we offer you turnkey-service.


Technical Advantages

  1. Strong background of R&D support, focus on details of manufacturing.
  2. Robust rotational system design for high up time.
  3. Exclusive arc sources to guaranty high coatings quality, none color difference.
  4. Powerful pump set for short cycle time and high productivity.
  5. Unique design is friendly operation and low maintenance.
  6. Turnkey coating solutions.



Royal Technology’s newest generation of PVD coating system RTAC1200A+ with Remote Control and diagnosis functions: Industrial PC and Siemens PLC are equipped for more stable, more Powerful SCADA data processing capability.

  1. High ionization rate, high through put,
  2. Large capacity to satisfy mass production,
  3. IPC remote control and operation guidance
  4. Coating Process – online remote training by our own software program.
  5. Plug-in designed and fabricated coating system, installation can be accomplished with online instruction.

    Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings 1
    Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings 2





Technical Specifications



General Information

  1. The multi arc vacuum coating system mainly for decorative coatings.
  2. Benefits: eco-environment, easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.
  3. Coating Colors: gold, black, brown, grey, Chrome colors etc.
    Gold Colors: TiN, ZrN, TiN+Au, ZrN+Au
    Rose Gold Colors: TiCN, TiAlN, TiCN+Au-Cu, TiAlN+Au, Cu
    Chrome colors: CrN, Ti, Cr
    Gray Colors: stainless steel, stainless steel (N)
    Brown Colors TiCN, TiAlCN, ZrC
    Blue Color: TiO, CrO, TiALN
    Black Colors: TiC, TiC+iC, TiCN, TiAlN, TiAlCN
  4. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials
  5. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.

Features
This series equipment consists of: vacuum chamber, vacuum pumps, arc sources,
spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc. High lights of the design futures:
1. Flexibility: Arcs are standardized for flexible and quick exchange;
2. Versatility: can deposit variety of base metals and alloys; optical coatings, hard coatings, soft coatings, compound films and solid lubricating films on the metallic and non-metallic materials substrates. 3. Powerful pump set for short cycle time and high productivity.
4. Multiple deposition sources for different substrates materials.
5. Royal exclusive arc sources to guaranty high coatings quality, none color difference.
6. Turnkey coating solutions.

Performance

1 .Ultimate Vacuum Pressure: better than 8.0×10-4 Pa
2. Operating Vacuum Pressure: 1.0×10-2 Pa.
3 .Pumping down Time: from 1 atm to 8.0×10-3Pa≤15minutes ( @room temperature, clean and unloading)
4. Leaking Rate: 9.0-5 Pa m³/ sec. Or better than 0.67Pa in 1 hour after shut down the machine from ultimate pressure.
5. Deposition Materials: Stainless steel, Cr, Ti, TiAl, Zr … etc.
6. Deposition Sources: Arc cathodes
7. Operating Model: Full Automatically /Semi-Auto/ Manually
8. .Safety Circuitry and Interlocks: numerous safety interlocks to protect operators and equipment ( water, current etc.) I: Heating up to 250℃,

Technical Specifications

MODEL RTAC1200A+
MATERIAL Stainless Steel
CHAMBER SIZE Φ1200*1500mm (H)
PUMP SYSTEM Rotary Piston Vacuum Pump (Mechanical)
Rotary Vane Vacuum Pump (Holding)
Roots Vacuum Pump
Turbo Molecular Pump
TECHNOLOGY Ion Plating ( Multi-arc sources) + Pulsed Bias Plasma Cleaning
RACK SYSTEM Planetary Rods: 10
TYPICAL TARGETS Titanium, Zirconium, Chrome, TiAl etc.
GAS Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen
CONTROL Siemens PLC + IPC remote control
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Water
HEATING Heater
POWER MAX. 75KW (Approx.)
AVERAGE POWER CONSUMPTION 40KW (Approx.)


Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings 3
Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings 4



Insite

Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings 5
Brass Security Locks PVD Ion Plating Machine, Zinc Alloy Handles Decorative Coatings 6
