Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine
1 set
MOQ
Negotiable
Price
Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

vacuum metallization equipment

,

vacuum metallizer machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Specifications
Vacuum Technology: Cathodic Multi Arc Plating, PVD Arc Deposition, Magnetron Sputtering By DC
Deposition Sources: Cylinder Arc Or Circular Arc Cathodes, DC Sputter Source
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Large Stainless Sheet Sheets, Tubes And SS Furniture
Product Description

The Large Multi-arc coating system is with cathodic arc deposition technology to generate various colors on stainless steel products, it widely used in architecture and building materials industry, such as: windows, walls, hotel, KTV, Bars, elevator panels for aesthetic surface finishing.

Applications

  • Stainless Steel Sheets standard sizes:
  • 1000*2000mm,1219*2438mm,1500*6000mm,1800*6000mm
  • Stainless Steel Pipes size: diameter 15mm ~ 300mm, length up to 6000mm

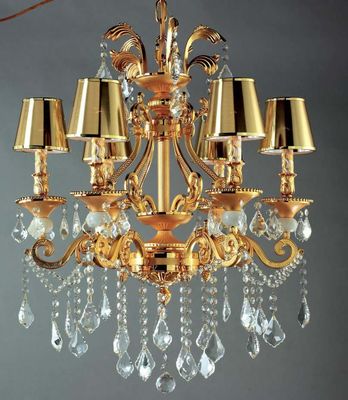

  • Crystal Chandelier, Glass Lighting

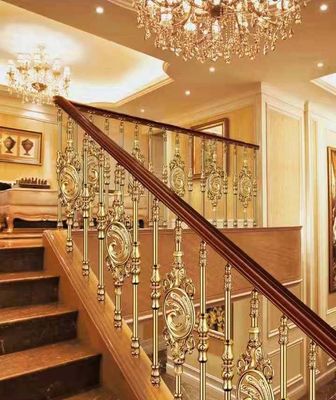

  • Stainless Steel Gate/Wall/ Fence/windows
  • Ceramic Tiles

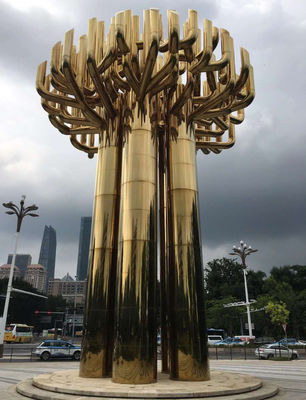

  • Stainless Steel Furniture: chair, table, desk, bed, display cabinet, clothes hooks, sculpture etc.

    Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine 0Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine 1

Coating Properties

Large PVD Vacuum Arc Plating Machine Coatings : TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
Large PVD Vacuum Arc Plating Machine Coating Colors : gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc



Features

  1. High throughput up to 10 cycles per day;
  2. Solid whole structure system for more than 30 years life time;
  3. Compact design and with easy access for upgrading and maintenance work.
  4. Fully Automation, PLC+Touch Screen, one-touch operation and control system.
  5. High efficiency with less power consumption, max. 50% production cost saving.

We do turnkey project for customers including all stainless steel surface treatment:Stainless steel cutting line,slitting line, 8K mirror,No.4. Hairline,etching,PVD,anti-finger coating and plastic laminating machines, Polishing machine, etching machine for surface treatment.



Horizontal Model- PVD Coating Workshop Plan Design

Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine 2

We have a professional team to assist our customers build the PVD vacuum coating service center and get running cost back within short time. It is a reliable and great business investment project for PVD coating market.



Technical Specifications

Royal Technology provides both Vertical and Horizontal models of Large Size arc coating machines.


Descriptions
  Vertical Horizontal
RTAC1836 RTAC2040 RTAC2080 RTAC2270
Standard Applications

Stainless Steel Sheets: 1000*2000mm,1219*2438mm,1500*6000mm,1800*6000mm

Stainless Steel Pipes size: diameter 15mm ~ 300mm, length up to 6000mm

Crystal Chandelier, Glass Lighting

Stainless Steel Gate/Wall/ Fence/windows

Ceramic Tiles

Stainless Steel Furniture: chair, table, desk, bed, display cabinet, clothes hooks, sculpture.

Others: windows, walls, hotel, KTV, Bars, elevator panels for aesthetic surface finishing.

Key Features

1.High throughput up to 10 cycles per day;

2.Solid whole structure system for more than 30 years life time;

3.Compact design and with easy access for upgrading and maintenance work.

4.Fully Automation, PLC+Touch Screen, one-touch operation and control system.

5.High efficiency with less power consumption, max. 50% production cost saving.

6. Workshop layout plan support is available from RoyalTech.

Deposition Chamber

(mm)

φ1800 * H3600 φ2000 * H4000 φ2000 * L8000 φ2200 * L7000
Total Power (kw) 120-300 120-350 200 200
Circular Arc Cathode (sets) 24-36 40-60 50~60 50~60
Rack and Jig System Planetary , central driving or integrated in one machine

Pulsed Bias Power

(KW)

60 60 70 70
Heating System Controllable and adjustable from room temperature to 300°C
Vertical Model
Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine 3



Horizontal Model


Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine 4


Please consult us with your expected solutions you want to get from Royaltec, we provide the turn-key coating solutions on this application.
