PVD Magnetron Sputtering Machine / PVD Hard Chrome Sputtering Machine on Car Wheels, Aluminum car wheel Chrome Plating
1 set
MOQ
negotiable
Price
PVD Magnetron Sputtering Machine / PVD Hard Chrome Sputtering Machine on Car Wheels, Aluminum car wheel Chrome Plating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTSP900
High Light:

magnetron sputtering machine

,

vacuum deposition equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Chamber: Vertical Orientation,1-door
Sputtering Model: Unbalanced/balanced With DC, MF
Sputtering Sources: Planar Sputter Or Cylinder Sputter
Applications: Car Wheel Rims, Car Mirrors, Silver And Gold Sputtering Deposition, Medical Instrument
Coating Performance: High Reflective And Uniformity, Corrosion Proof, Abrasion Resistance
Equipment Features: Robust Structure, Compact Footprint Design, High Efficiency And Precision Oepration Control
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

PVD Magnetron Sputtering Machine / PVD Hard Chrome Sputtering Machine on Car Wheels, Aluminum car wheel Chrome Plating





General Information



The PVD Vacuum Hard Chrome coating process has been used in the automotive industries for decades. Sputtering Chrome/Aluminum on Aluminum alloy rims is a standard application due to its 100% environmentally friendly process and resistance to pitting or peeling off like traditional water-electroplating. The high abrasion resistance coating forms a durable film that greatly enhances the car rim’s lifetime. For these reasons and ease of use and reliability the PDV hard chrome coating is welcomed by the automotive factories.







Description

For Car Mirror For Car Wheels
RTSP1400-PLUS RTSP900 RTSP1400  RTSP1800
Targets Aavailable Chrominum, Aluminum, Stainless Steel, Copper, Brass, Titanium, Silver etc.

Capacity



Max. 4.86 sqm

Max. size : 27" x 1 Unit



Max. size 25" x 4 Units

Max. size : 27" x 2 Units

 Max. size 22" x 8 Units
Deposition Chamber

φ1400 * H1600mm



φ900 * H900mm



φ1400 * H1600mm



 φ1800 * H1800mm

Load Diameter

(Max.)

6*φ360mm 1 axis 1 axis    4 axis * φ560mm
Load Height
( Effective)
1200mm 700mm 1100mm  1400mm
Deposition Sources

4 sets cylinder sputter

1 set planar sputter

2 sets planar sputter W125*L850mm 2 sets planar sputter W125*L1350mm  2 sets planar sputter W125*L1650mm
Sputtering Power Max. 40KW Max. 30KW Max. 40KW  Max. 60KW
Operation & Control System

CE standard

Mitsubishi PLC+ Touch Screen

Operation Program with backup

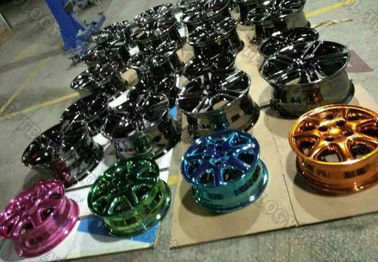

The coating colors:


PVD Black Chrome / PVD Bright Chrome / Grey / Silver



PVD Magnetron Sputtering Machine / PVD Hard Chrome Sputtering Machine on Car Wheels, Aluminum car wheel Chrome Plating 0

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
