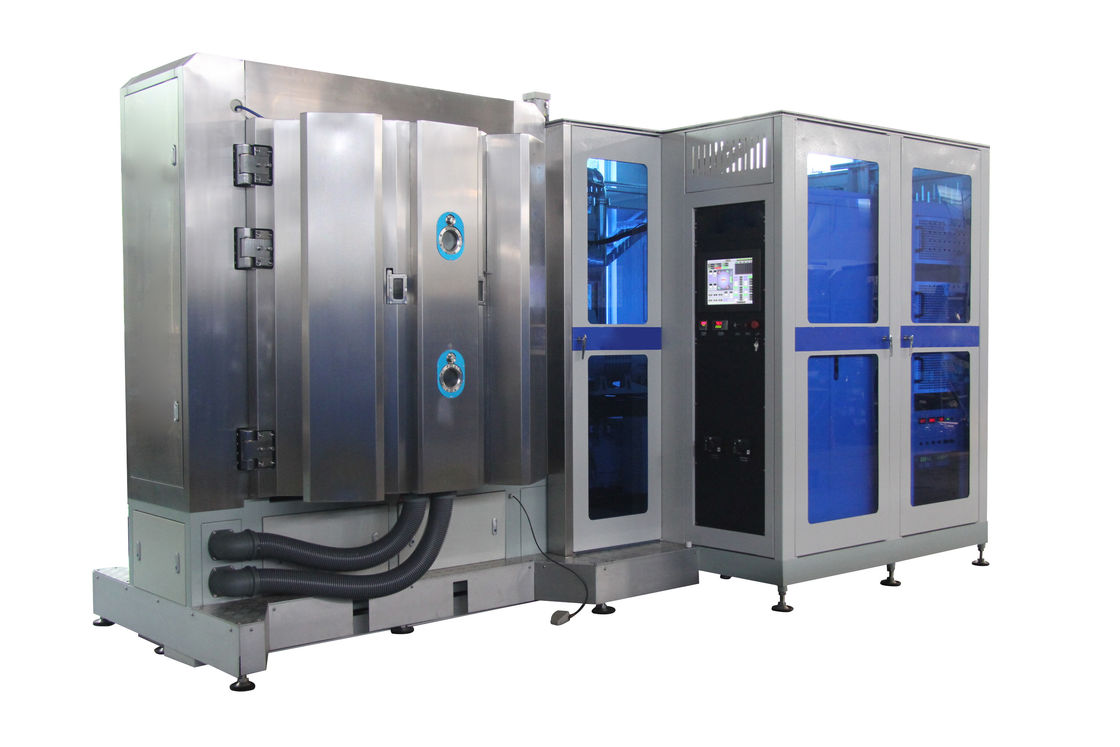

RTSP1213-PECVD Thin Film Coating Machine, Ion Source Plasma Enhanced PVD Deposition System

1 set
MOQ
negotiable
Price
RTSP1213-PECVD Thin Film Coating Machine, Ion Source Plasma Enhanced PVD Deposition System
Features Gallery Product Description Request A Quote
Features
Specifications
Deposition Sources: DC / MF Sputtering Cathodes, Anode Linear Ion Source
Technique: PECVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications: Automotive, Semiconductor, SiC Coating, DLC Film Deposition,
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

magnetron sputtering machine

,

magnetron sputtering equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: TUV CE
Model Number: RTSP1200
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 6 sets per month
Product Description

                         PECVD Thin Film Coating Machine, Ion Source Plasma Enhanced PVD Deposition System​







Why us?

  1. Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.

  2. Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.

  3. Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.



The core technology is how to generate the electrical energy with fuel cell power module through electrochemical reaction between hydrogen as fuel and oxygen.


Hydrogen fuel cell as the most key important part of the power module, scientists, engineers, professors from transportation organizations and worldwide vehicles manufactures have made thousands tests and finally found the proper processing.

It is 100% envrionmetally friendly technology and vechiles.



Our machine RTSP1200 model is exclusively designed and developed for this appliation. We cooperated with Shanghai Jiaotong Unversity and SAIC Motor Corporation Limited Company.



Hydrogen Fuel Cell Power Module Sputtering System with the PECVD (Plasma Enhanced Chemical Vapor Deposition) Technology to deposit high uniformity, strong adhesion SiC thin films.



The Hydrogen fuel cell sputtering machine contains ion source, balanced/unblanced sputtering cathodes; with stable and large volume vacuum pumping system.





Hydrogen Fuel Cell Power Module Sputtering System Specifications



MODEL RTSP1200
MATERIAL Stainless Steel (S304)

CHAMBER SIZE Φ1200*1300mm (H)
CHAMBER TYPE Front and back 2-doors structure, Vertical
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Magnetic Suspension Molecular Pump
Rotary Vane Pump (Holding Pump)
TECHNOLOGY Magnetron Sputtering, Ion Source PECVD
POWER SUPPLY Sputtering power supply + Bias Power supply + Ion Source
DEPOSITION SOURCE 2 pairs DC/RF Sputtering Cathodes + (2 pairs spare using) + Ion Source
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Glow Discharge/Ion Source
POWER MAX. 150KW
AVERAGE POWER CONSUMPTION 75KW






 RTSP1213-PECVD Thin Film Coating Machine, Ion Source Plasma Enhanced PVD Deposition System 0







The special designed rack and jig system can take out-move in completely for a substrates convenient loading/unloading.





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
