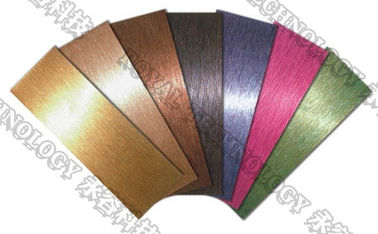

Titanium Nitride Coating Machine, Metal Rainbow Decorative Colors by PVD Coating
Why us?
Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.
Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.
Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.
PVD vacuum coatings properties
Brass Faucets PVD Coating Machine Advantages:
1. High ionization rate, high through put,
2. Large capacity to satisfy mass production,
3. Excellent film adhesion and various colors are available.
4. Coating lMateria: Chrome, Titanium, Zr , TiAl, etc.

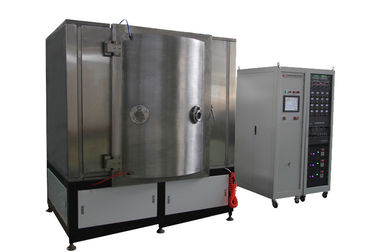

The multi arc + MF sputtering deposition coater RTAC1615(RTAC1618)is exclusively designed for brass faucets industries, it can coat the whole set of faucets, plumbing, valves etc.
The high lights of this machine are:
1. Equipped with cryo-pump (Polycold) device, which
Is available for plastic parts, like ABS, PC, ABS + PC, PP materials plating.
2. MF sputtering cathodes and DC Sputtering Cathodes for option.
RTAC-1615SPECIFICATION:
| MODEL | RTAC-1615 (RTAC1618) |
| MATERIAL | Stainless Steel |
| CHAMBER SIZE | Φ1600*1500mm (H) |
| PUMP SYSTEM | Rotary Piston Vacuum Pump (Mechanical) |
| Rotary Vane Vacuum Pump (Holding) | |
| Roots Vacuum Pump | |
| Turbo Molecular Pump | |
| TECHNOLOGY | Ion Plating ( Multi-arc sources) + Pulsed Bias Plasma Cleaning |
| RACK SYSTEM | Planetary Rods: 10 |
| TYPICAL TARGETS | Titanium, Zirconium, Chrome, TiAl etc. |
| GAS | Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen |
| CONTROL | PLC(Programmable Logic Controller) |
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment |
| COOLING | Water |
| HEATING | Heater |
| POWER MAX. | 75KW (Approx.) |
| AVERAGE POWER CONSUMPTION | 40KW (Approx.) |
ZrN gold faucets PVD plating machine
Customized sizes of machine are available based on product dimensions and capacity requests.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
