Stainless Steel Black Thin Film Coating Machine, MF Sputtering Deposition System With CE Certification
1 set
MOQ
negotiable
Price
Stainless Steel Black Thin Film Coating Machine,  MF Sputtering Deposition System With CE Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1612
High Light:

magnetron sputtering equipment

,

vacuum deposition equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 12 sets per month
Specifications
Deposition Sources: Steered Cathodic Arc + Magnetron MF Sputtering
Deposition Films: TiC TiAlC, CrC, CrCN, DLC, Graphite Sputtering
Applications: Black Film Coating On Watch Metal Parts
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

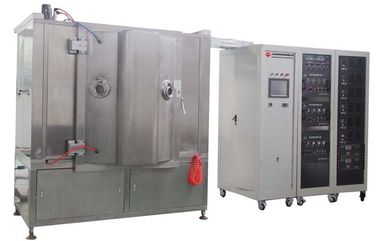

Stainless Steel Black Thin Film Coating Machine, MF Sputtering Deposition System With CE Certification

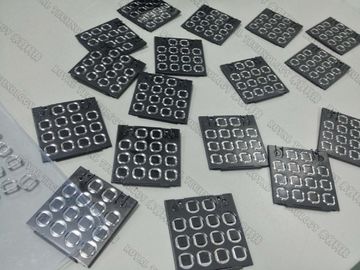

RTAS black thin film ​PVD plating in the SS drill industry application


Physical Vapor Deposition (PVD) decorative hard coatings in the home appliances & electronics made of

stainless steel material has been used widely for decades. It gives an attractive colors and high wear resistance for our luxury consumer goods such as: watch components, wring instruments or spectacles. Some manufactures want to maintain both the high wear resistance of PVD and the high reflective finishing surface which provides the product with a high quality image.

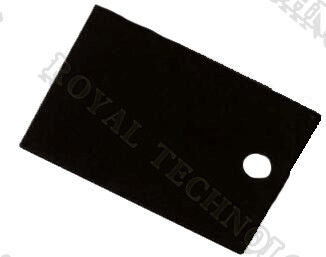

RTAC-SP black thin film coating equipment can produce highly reflective deep black films specifically for high quality aesthetic demand.

RTAS  black thin film coating plant advantages
Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts of Royal Team.





Technical Specifications
MODEL RTAS1612
TECHNOLOGY Magnetron Sputtering (DC or MF) + Ion Plating
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1600*H1250mm
CHAMBER TYPE Cylinder, vertical, 1-door
SPUTTERING SYSTEM Exclusively design for thin black film deposition
DEPOSITION MATERIAL Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Titanium
DEPOSITION SOURCE  4 pairs Cylindrical Sputtering cathodes + 7 Steered Cathodic Arc Sources
GAS MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL PLC(Programmable Logic Controller) +
Touch Screen
PUMP SYSTEM SV300B - 2 sets (Leybold)
WAU2001 - 1 sets (Leybold)
D60C- 1 set (Leybold)
Turbo Molecular Pumps: 3* FF-400/3500
PRE-TREATMENT Bias power supply: 1*48 KW
SAFETY SYSTEM Numerous safety interlocks to protect operators
and equipment
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W3000*H2000mm
TOTAL WEIGHT 7.0 T
FOOTPRINT ( L*W*H) 5000*4000 *4000 MM
CYCLE TIME 30~40 minutes (depending on substrate material,
substrate geometry and environmental conditions)
POWER MAX.. 180KW
AVERAGE POWER CONSUMPTION (APPROX.)  90KW





Stainless Steel Black Thin Film Coating Machine,  MF Sputtering Deposition System With CE Certification 0



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
