Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment

China Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment supplier
Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment supplier Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment supplier Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment supplier Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment supplier

Large Image :  Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment

Product Details:

Place of Origin: Made in China
Brand Name: ROYAL
Certification: ISO, CE, UL Standard
Model Number: RTAC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Vacuum Technology: Cathodic Multi Arc Plating, PVD Arc Deposition Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Metal, Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools Coating Colors: Polishing Gold, Polishing Black, Brushing Gold, Brushing Black, Nickle Color, Chrome Color



             Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment

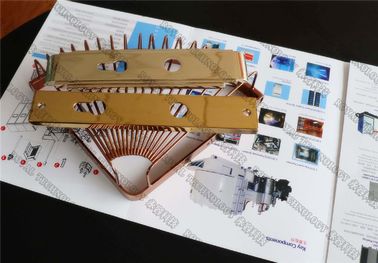

Gold steel machine parts are mostly used indoor. Consumers have been looking for beautiful colors to feeling comfortable and perfect matching design with rooms decoration.

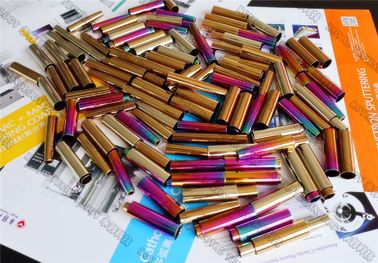

With PVD cotaing technology, the cathodic arc sources to deposit targets like: Ti/Cr/TiAl/Zr etc. with reactive gases  N2, C2H2, O2 to generate various colors :

TiN gold, ZrN light gold,  TiAlN rose gold, gun black, jet black etc.



Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment



Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment



Royal Technology provides the standardized PVD arc coaters with below sizes to satisfy door hinges manufactures demand:




Model
RTAC-900 RTAC-1000 RTAC-1250 RTAC-1400 RTAC-1600
Chamber Inner size 900x1100mm 1000x1200mm 1250x1350mm 1400x1600mm 1600x1600mm
Power supply type Arc power supply, filament power supply, pulse bias power supply
Structure of vacuum chamber Vertical front door structure, rear air exhaust system and double-layer water cooling chamber
Material of vacuum chamber stainless steel 304/316L
Ultimate vacuum 6.0x10-4Pa (unloading, clean, drying chamber)
Vacuum Pumping Speed from atmosphere to 8.0*10-3Pa ≤15 minutes
Vacuum pumping system Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
Arc source 6 units or
8 units
8 units or
10 units
10 units or
12 units
14 units or
16 units
16 units or
18 units

Bias power supply 20KW/set 20KW/set 30KW/set 40KW/set 50KW/set
Driving Model Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
Heating System Controllable and adjustable from room temperature to 450°C
(PID temperature control)
MFC 3-path or 4-path process gas flow control and display system, selective automatic gassing system
Cooling System Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)
Control mode Manual/automatic integration mode, touch screen operation, PLC or computer control
Total power 30KW 35KW 45KW 60KW 75KW
Alarm and protection Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function
Equipment area W2.5m*L3.5m W3m*L4m W4m*L5m W4.5m*L6m W5m*L7m
Other technical parameters Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa
Remarks The specific configuration of coating equipment can be designed according to process requirements of coating products

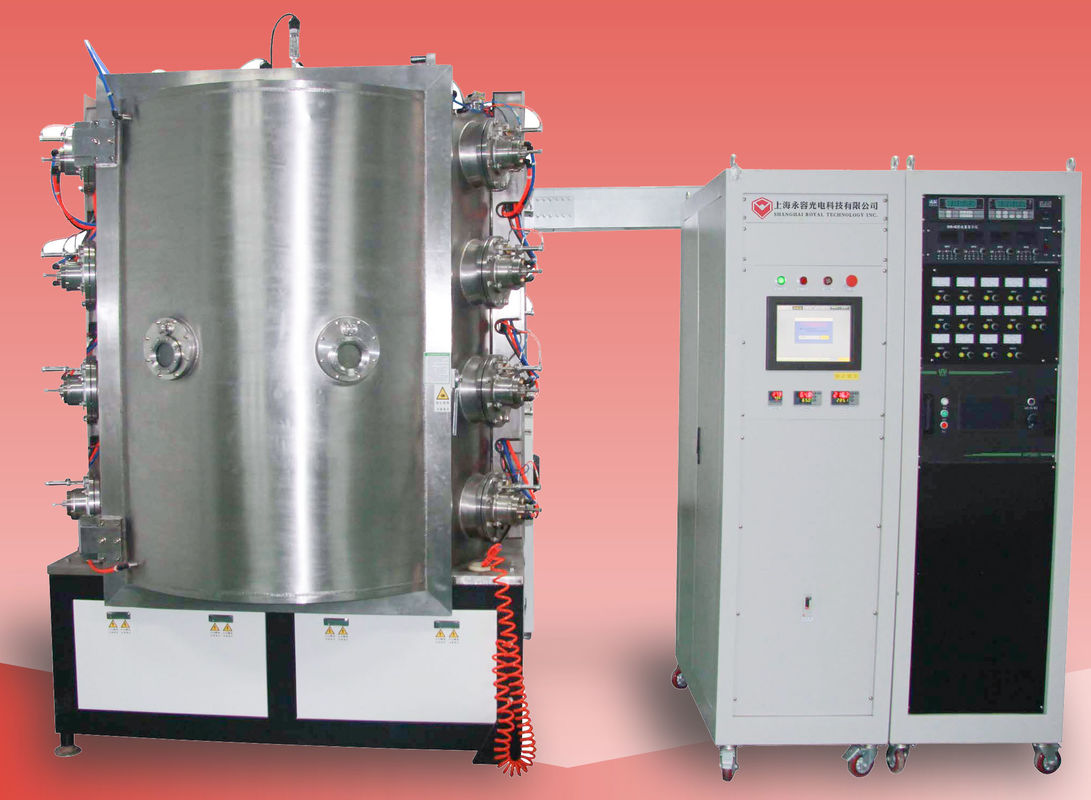

The Multi-Arc Vacuum Coating Machine high lights made by Royal Tec:

  • Exclusively vacuum pumping system design concept has low power consumption, which reduce 30%~50% production cost per hour.
  • Patented Cathodic Arc Power Supply developed for minimize this disadvantage : macroparticles (droplets)formation.

The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.

  • Cathodic Arc source exclusively designed and produced for maximize the targets utilization ( up to 90% for a some targets)
  • Bias Power Supply and Ion Source Unit for optional enables a bright colors of final finishing.

The whole coating unit design enable and ensures a stable working time, high quality of coating colors, fast deposition, high ionization rate and strong adhesion advantages.



1. Structure: deposition chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc.

2. Coating Colors: gold, black, brown, grey, chrome colors etc

3. Coatings properties: TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.



Zinc Alloy PVD Plating Machine, Brass Vacuum Plating Equipment, Glass PVD Plating Equipment







Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
