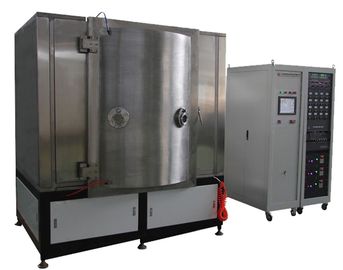

PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation

Name: PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
Brand: SHANGHAI ROYAL TECHNOLOGY INC.
SKU: RTAC
Availability: InStock

Brand Name:	ROYAL
Model Number:	RTAC
MOQ:	1 set
Payment Terms:	L/C, T/T
Supply Ability:	5 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Technology:

PVD Plating, Ion Plating Gold

Deposition Source:

Cathodic Arcs

Target Material:

Ti, Cr, Zr, SS, Al, Cu, TiAl, Fe Alloy

Work Pieces:

Glass Cups, Wine Cups

Coating Colors:

Gold, Copper, Black, Grey, Rose Gold, Rainbow, Chrome

Model:

RTAC

Factory Location:

Shanghai City, China

Factory Location:

Shanghai City, China

Factory Location:

Shanghai City, China

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

Packaging Details:

Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Supply Ability:

5 sets per month

Highlight:

glass coating equipment

chrome plating machine

Product Description

The machine's location: Ukraine
Built Time: 2017

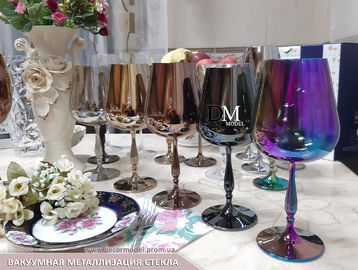

Applications: glass vase, glass cups, ceramic products, metal and steel parts

Applications:
Bathroom and shower fixtures
Sanitary ware and plumbing applies
Door handles, fasteners, safe and locks
Glass and ceramic products
Eyewear
Writing Instruments

Only to name a few, but for more applications, please contact Royal Technology.

PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation 0

Advantages
Many bright colors of final finishings
Excellent scratch resistance
Enables longer life of products
Environmentally-friendly process
Robust and high volume design machine
HMI friendly operation system
Low maintenance
Low cost of ownership

Key Features

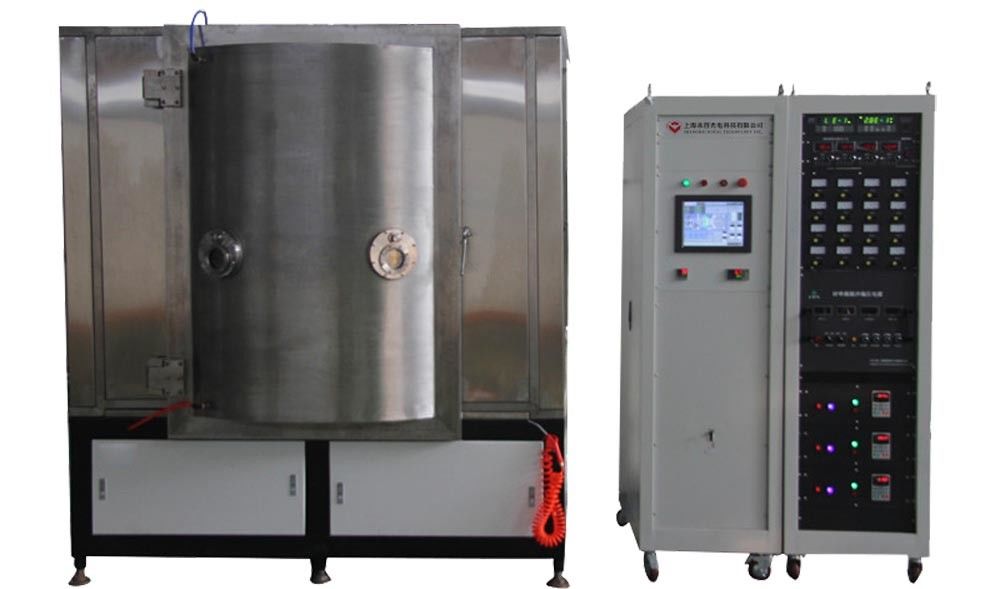

STANDARD, MODULAR DESIGN
1. PS eletrical enclosure, designed and manufactured strictly following CE standards
2. Central control cabinet with PLC, power output control and general power distributor
3. Operating software program in PLC is exclusive developed by Royal Technology, each set machine is ready for system upgrading

Description	RTAC1000	RTAC1200	RTAC1400	RTAC1600
Standard Applications	Medical & beauty instruments, pen, watches, glass beads, small size products	Door handles, safe and locks, eyewear, fasteners, consumer electronic metal parts	Sanitary ware, bathroom fixtures, glassware of medium size	Faucets, plumbings, furniture components, metal lamps, for high volume products
Deposition Chamber (mm)	φ1000 * H800	φ1200 * H1500	φ1400 * H1600	φ1600 * H1800
Maximum Loading (kg)	500	800	800	1000
Central Driving Effective Coating Area (mm)	φ800*H500	6: φ760H1100 8: φ700H1100	6: φ835H1200 8: φ905H1200	8: φ900H1500 10:φ1000H1500
Planetary Driving Effective Coating Area (mm)	6φ250H500	6: φ320H1100 8: φ260H1100	6: φ370H1200 8: φ300H1200	8: φ350H1400 10: φ290H1400
Pulsed Bias Power (KW)	24	24	36	48
Circular Arc Cathode (sets)	6	14	14	18
High Vacuum Pumps	1*Turbo Molecular Pump	2 * Turbo Molecular Pumps	1* Diffusion Pump or 3* Turbo Molecular Pumps	2* Diffusion Pumps or 4* Turbo Molecular Pumps
Backing Pumps	1SV300B + 1WAU501+ 1*TRP36	2SV300B+1WAU1001+1*TRP48	2SV300B+1WAU2001+1*TRP60	1SV630BF+1WAU2001+1*TRP90

If you are interested in outsourcing the PVD coating service, please contact us, we have global resources to help you get your desired coatings.
