TiN Gold Coating On Jewelry 24K Real Gold Sputtering Deposition  On Watches Jewelry Gold PVD Coating
Features Gallery Product Description Request A Quote
Features
Specifications
Deposition Sources: Sputtering + Cathodic Arc Evaporation
Technique: PVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications: Metal Jewelry, Watches, Necklace, Ear Rings, Finger Rings, Bracelets, Handbag Chains, Logos
Film Features: Bright Colors, Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Highlight:

Watches Jewelry PVD Coating Machine

,

24K PVD Vacuum Coating Machine

,

Sputtering Deposition PVD Vacuum Coating Machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1000
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Product Description

TiN Gold Coating on Jewelry, 24K real Gold sputtering depositon on Watches, Jewelry Gold PVD Coating







Titanium color sheet pvd coating machine car light vacuum coating machine



The standard model is RTAC1008, the machine contains key configurations

1. 6 sets cicular steered arc cathodes

2. Bias power supply

3. 1 set anode layer Ion source unit for optional.

4. High vacuum pumping system with Turbo Molecular pump for a stable vacuum environment.

5. Exclusively designed rotary jack and substrate holder system.





Specifications



MODEL   RTAS1000
TECHNOLOGY   Multi Arc Evaporation + DC/MF sputtering cathodes
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1000*H1000mm
CHAMBER TYPE Cylinder, vertical, 1-door
SPUTTERING SYSTEM Exclusively design for IPG gold, silver sputtering deposition
DEPOSITION MATERIAL Aluminum, Silver, Copper, Chrome, Stainless Steel,
Nickel, Gold, TiAl, Au alloy, Ag etc.
DEPOSITION SOURCE   Cathodic Arc Sources + planar, cylinder sputtering cathodes
GAS MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL PLC(Programmable Logic Controller) +
PUMP SYSTEM SV300B - 1 set (Leybold)
WAU501- 1 sets (Leybold)
D60T- 1set (Leybold)
Turbo Molecular Pumps:1* F-400/3500
PRE-TREATMENT Bias power supply: 1*24 KW
SAFETY SYSTEM Numerous safety interlocks to protect operators
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W3000*H2000mm
TOTAL WEIGHT 7.0 T
FOOTPRINT ( L*W*H)4000*3000 *3000 MM
CYCLE TIME 30~40 minutes (depending on substrate material,
substrate geometry and environmental conditions)
POWER MAX.. 55 KW

AVERAGE POWER

CONSUMPTION (APPROX.)

30 KW

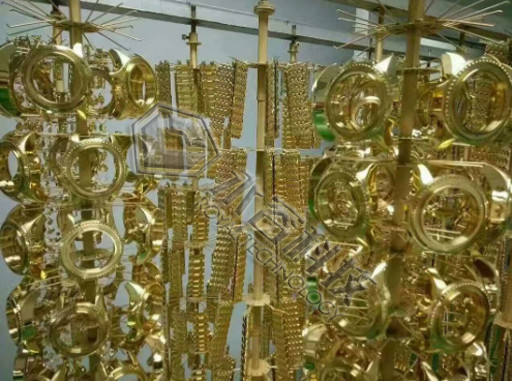

TiN Gold Coating On Jewelry 24K Real Gold Sputtering Deposition  On Watches Jewelry Gold PVD Coating 0

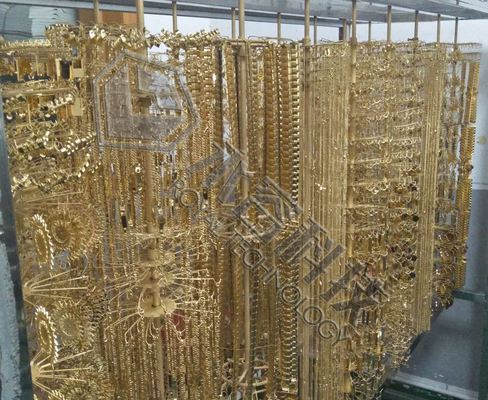

TiN Gold Coating On Jewelry 24K Real Gold Sputtering Deposition  On Watches Jewelry Gold PVD Coating 1

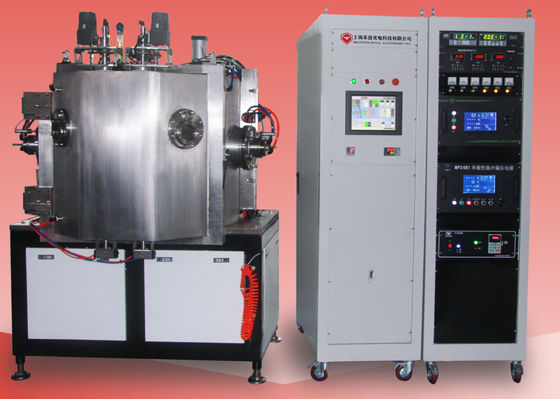

The Metal Watches and Jewelry Gold Plating Machine chamber structure -  RTAC1008-SP

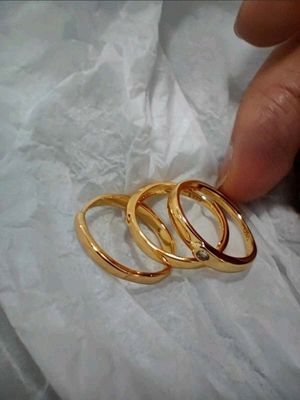

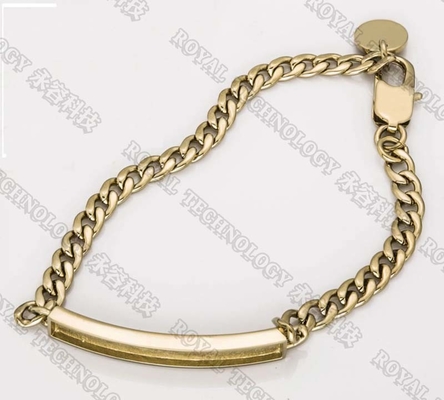

TiN Gold Coating On Jewelry 24K Real Gold Sputtering Deposition  On Watches Jewelry Gold PVD Coating 2





Why us?

  1. Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.

  2. Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.

  3. Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
