Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering

Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering
Features Gallery Product Description Request A Quote
Application: Sanitaryware, Brass Faucets, SS Stainless Steel Items, ABS Parts, Soft Metal Hose Etc.
New Colors: Navy Blue, Baby Blue, Grass Green, Apple Green, Purple, Red Etc.
Operation & Control: Siemens PLC + IPC (Industrial PC)
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

PVD Decorative Coating Machine


Cathodic arc vacuum coating machine


MF Magnetron Sputtering vacuum coating machine

Basic Infomation
Place of Origin: MADE IN CHINA
Certification: CE
Model Number: RTAS1612
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 14~16 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Product Description

PVD Decorative Coatings


The PVD process can achieve a wide range of colors by depositing different materials and alloys onto substrates. Here are some examples of colors that can be achieved through the PVD process:

  1. Gold: PVD Gold coatings can mimic the appearance of traditional gold, offering a lustrous and rich yellow color. Different shades of gold, such as yellow gold, rose gold, and white gold, can be achieved by varying the composition of the coating materials.
  2. Silver: PVD Silver coatings provide a shiny, metallic silver appearance. These coatings can be used to create a sleek and modern look on various products and surfaces.
  3. Black: PVD Black coatings offer a deep, dark black color. These coatings are achieved by depositing materials such as titanium nitride (TiN) or chromium nitride (CrN) onto the substrate. PVD Black coatings are commonly used for decorative and functional purposes.
  4. Bronze: PVD Bronze coatings provide a warm, reddish-brown color resembling traditional bronze. These coatings can be used to add a touch of vintage or antique aesthetics to different products.
  5. Copper: PVD Copper coatings offer a vibrant, reddish-orange appearance similar to pure copper. These coatings can be used to achieve a rustic or industrial look and are often applied to decorative items and architectural elements.
  6. Blue: PVD Blue coatings produce a range of blue colors, from light blue to deep navy. These coatings are achieved by depositing materials like titanium oxide (TiOx) or zirconium nitride (ZrN) onto the substrate. PVD Blue coatings find applications in decorative and functional purposes, including jewelry and watches.
  7. Green: PVD Green coatings provide various shades of green, from light green to deep emerald. These coatings can be used to create a unique and eye-catching appearance on different surfaces.
  8. Purple: PVD Purple coatings offer a range of purple shades, from light lavender to deep violet. These coatings can be used for decorative purposes, adding a touch of elegance and sophistication.
    Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering 0

    Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering 1

It's important to note that the exact colors achieved through the PVD process can vary depending on the specific materials, deposition parameters, and substrate characteristics. By carefully selecting and adjusting the coating materials, it is possible to achieve a wide spectrum of colors to meet specific design requirements and preferences.

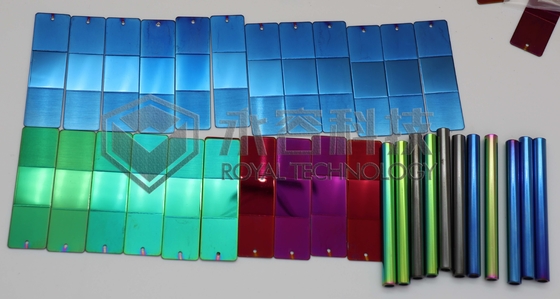

New Colors


Generally can be deposited on 2D flat products luke glass panels, stainless steel sheets SS304/314/400. Navy blue, baby blue, grass green, apple green, purple, red etc.


Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering 2


                                           Stainless Steel Flatware- PVD Mirror Colors


Jet black: be applicable to bathroom faucets, medical equipment, jewelry and watch accessories, electronic products, stainless steel tableware, cutlery, brass or zinc alloy, stainless steel door handles, etc.




Description RT1000-DLC RT1000-IPG RT1250-BLACK RT1612-BLACK
Technical Advantages Plug-in Integrated system for fast installation
Short cycle times for decorative coatings
High yield of coating products
High density and excellent uniformity
High abrasion and corrosion resistance
More than aesthetic but functional performance
Higher volume
Multiple deposition sources for fast deposition
Combined arc and several sputtering cathodes : arc for good adhesion amd strong bonding layer, sputtering deposition for specific coatings.
Major Applications Black DLC coatings on medical insutrments, jewelry, watch parts.
24K pure gold/18K gold alloycoatings on luxury products: brands metal accessries etc.
Microelectronics industry
Medium and larger workpieces: SS cutlery, door handles, bathroom fittings, automotive components, sports, house appliances , kitchenware and spectral frames etc.
Deposition Chamber φ1000 * H1000mm φ1250 * H1250mm φ1600 * H1250mm
Load Diameter
8*φ270mm 10*φ230mm 10*φ300mm 16*φ200mm
Load Height
( Effective)
650mm 900mm 900mm
Deposition Cathodes 5 arc + 4 pairs MF cylinder sputter Option A: 8 arc + 1 set DC planar sputter;
Option B: 5 arc + 2 sets DC planar sputter
7 arc + 3 (or 4) pairs of MF cylinder sputters 12 arc + 4 (or 6 ) pairs of MF cylinder sputters
Operation & Control System Siemens PLC + Industrial Computer + RoyalTech. Operation Program
Available for remote operation and diagnosis



These configurations are standard, for a specific developing market and new special coatings, the customized configurations and modifications are available on requests.




RT1612-BLACK MACHINE installed in Tunisia -- Africa


Since the PVD coating technology is very new for SOPAL, our professional technical support makes us stand out among other PVD machine suppliers. We know how to transfer the technology to end users, we understand machine and coating process’s stabilities are very critical for users. Thus for the first set machine, RTAS1612 (RT1612-BLACK) model with a customized configurations had built for SOPAL. Which combined multiple techniques to achieve varieties as many as color ranges.

Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering 3


“A reliable partner you can always count on!” said Mr. Ahmed from SOPAL. “ Royal Technology means more than a supplier to us. PVD finishing on faucets and other sanitary hardware are well-known and very popular in the market, it is going to be SOPAL’s new trend line.”


Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering 4         Decorative PVD Coatings Machine Cathodic Arc Vacuum MF Magnetron Sputtering 5

                              PVD coating samples                                                                       Exhibition



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
