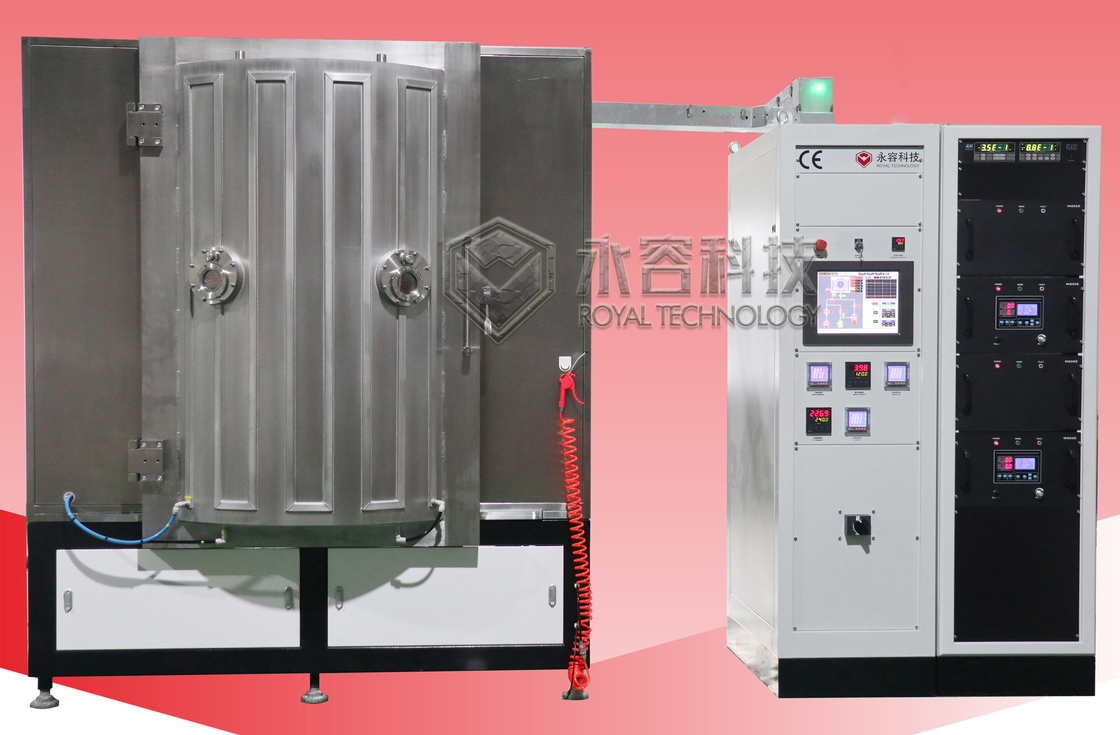

Luxury handbags metal accessories PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering
The metal jewelry vacuum coating machine combined the techniques of Sputtering and arc evapoation, which mainly used on metal jewelry and watches, handbags metal accessories.
The standard model is RTAC1250-SP, the machine contains key deposition sources of:
1. Two sets MF Sputtering Cathodes
2. 1 set planar / cylinder DC Sputtering Cathodes
3. 1 set Cylinder Arc Cathode or 7 sets cicular steered arc cathodes
4. 1 set Ion source unit for plasma cleaning bomboardment before PVD deposition, highly improved the film adhesion and much more bright color.
Why us?
Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.
Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.
Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost.
RTAC1250-SP Specifications
| MODEL | RTAC1250-SP | ||||||
| TECHNOLOGY | Magnetron Sputtering + Ion Plating | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1250*H1250mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| SPUTTERING SYSTEM | Exclusively design for thin black film deposition | ||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc. |
||||||
| DEPOSITION SOURCE | 2 sets MF Cylindrical Sputtering Targets + 1 Cathodic Arc Sources + 1 DC sputtering + 1 Ion Source | ||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
| CONTROL | PLC(Programmable Logic Controller) + | ||||||
| PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
| WAU1001 - 1 sets (Leybold) | |||||||
| D60T- 2sets (Leybold) | |||||||
| Turbo Molecular Pumps: 2* F-400/3500 | |||||||
| PRE-TREATMENT | Bias power supply: 1*36 KW | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W3000*H2000mm | ||||||
| TOTAL WEIGHT | 7.0 T | ||||||
| FOOTPRINT | ( L*W*H) 5000*4000 *4000 MM | ||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 155 KW | ||||||
|
AVERAGE POWER CONSUMPTION (APPROX.) |
75 KW |
The Metal Jewelry Vacuum Coating Machine deposition chamber structure
DC sputtering cathodes and Ion Source Mounting Flange
MF Sputtering cathode and Cylinder Arc Mounting Flanges
The IPG gold plating machine is particularly used in jewerly, watches, clocks, pens writing instrument, handbag and shoes high end metal parts (branded products like Chloe, Channel, LV, etc) , Electronic products metal parts like Phone, Camera, remote controller,
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
