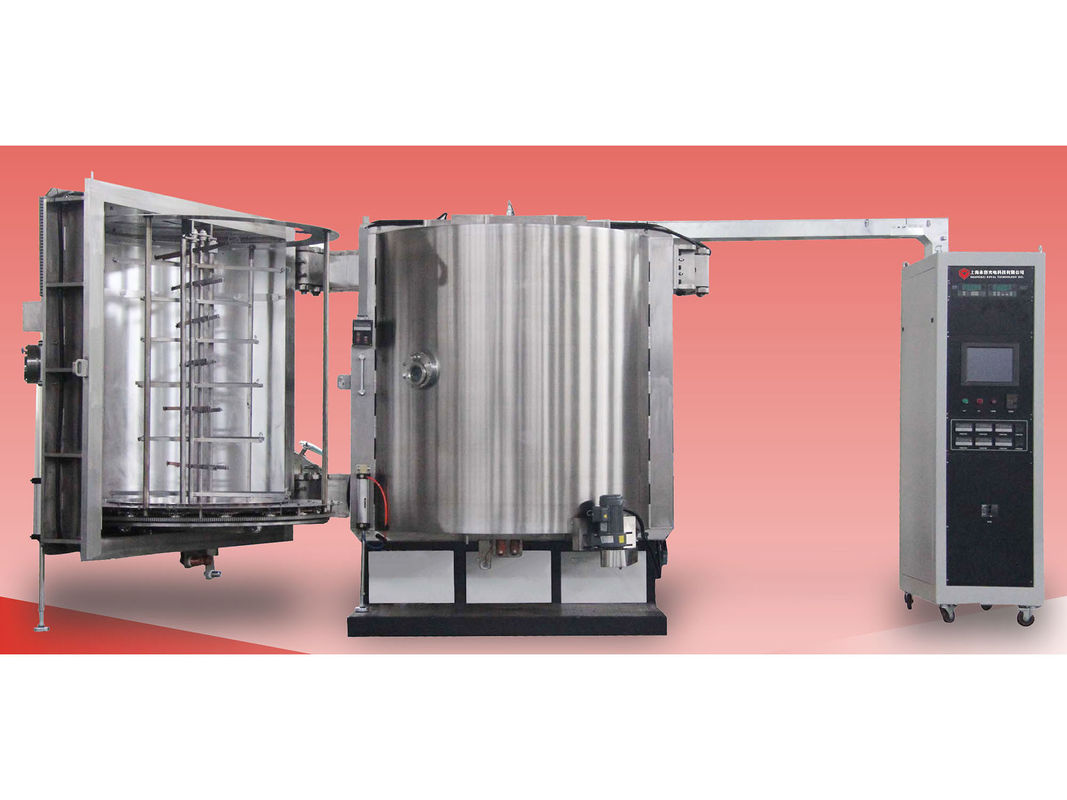

Large Batch Plastic Vacuum Metallizing Machine High Reflection Thin Metal Film Deposition System

1 set
MOQ
Large Batch Plastic Vacuum Metallizing Machine High Reflection Thin Metal Film Deposition System
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Large Batch, Fast Cycle, High Yield
Technology: Thermal Evaporation, PVD Evaporation
Advantages: Environmentally Friendly Operating Process
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Highlight:

Plastic Vacuum Metallizing Machine

,

Large Batch Thin Film Deposition System

,

High Reflection Thin Film Deposition System

Basic Infomation
Place of Origin: China
Brand Name: ROYAL
Certification: CE
Model Number: RTEP
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 14~16weeks
Supply Ability: 10 sets per month
Product Description

             Plastic Vacuum Metallizing Machine, High Reflection Film Deposition, Lighting Reflector Deposition





Introduction:



Royal Technology has designed, manufactured and installed over 100 sets of thermal evaporation coating systems worldwide, encompassing a variety of applications and industries, such as:


Automotive plastic exterior/interior trims
Vehicle lightings and components
Commercial, industrial and residential LED lighting reflectors
Cosmetic packages
Glassware and mirrors
Electronic consumer products
EMI shilding and NCVM films
Toy parts and sporting goods
Home appliances of washing machines and various accessories of furniture
Fashion, clocks and watches



Only to name a few, in many other areas PVD vacuum metallizing processes are continue to be used and developed in the coating industry.
The PVD metallizing process gives the objects a high shiny, reflective, metallic look which can be in different colors.



PVD Vacuum Metallization Process:


The work pieces are uploaded to the satellites which then are fixed onto the rack system
Closing the chamber door (No.1) and start the Automatic Process with HMI program
The operator unloading/loading work pieces for the other door (No.2)
After the Auto Metallization process is completed, venting process and open the door No.1; close door No.2 and repeat the cycles.

The whole process is quick and highly improves the quality and beauty of materials.
High productivity, saving operating time, production cost is reduced down sharply.

Royal Technology metallizing system is available in both vertical and horizontal orientation.
The chambers are manufactured for cylindrical and cubic shapes.
We are using the stainless steel material for fabrication and the best components in the world market for high quality and reliability of machines produced by Royal Technology. The planetary rotary system structure ensures perfectly uniform coatings.





Technical Specification:



Description RTEP1000 RTEP1418 RTEP1616 RTEP1820
Deposition Chamber mm φ1000 x H1000

φ1400 x H1800



φ1600 x H1600

φ1800 x H2000



Door Structure set 1 2 2 2
Evaporation Sources pcs 16 20~28 24 32
Number of Satelites rods 6 6,8 6,8,10 6,8,10, 12
Effective Coating Area mm φ250 *6*H700

φ370*6*H1500

φ300*8*H1500

φ440*6*H1300

φ350*8 *H1300

φ300*10 *H1300

φ500*6*H1700

φ400*8*H1700

φ340*10*H1700

φ290*12*H1700

Cycle Time min. 10~12 15 15 15~20
Evaporation Power Supply kVA 20 30 35 40
Plasma Cleaning Power Supply

kVA



7 10 10 10
Ultimate Vacuum 8.0*10-4 Pa
Pumping Speed from atm to 9.0×10-3Pa≤10minutes ( @ room temperature, clean and unloading)
Rotary Piston Pump Capacity L/S 70 150 150 150 *2
Roots Pump Capacity L/S 300 600 600 1200

Difussion Pump Capacity

(with cold trap)

L/S 6000 8000 8000 2*8000
Holding Pump Capacity L/S 15 30 30 70
Approximate Maxium Power KW 50 75 75 110

Approximate Average Power



KW 25 35 35 60
Approximate Weight KG 4500 7300 9000 11000
Foot print (LxWxH) mm 3000*3000*2200 5000*4000*3500 6000*5500*3200 6500*6000*3800



Remark:  Machine configuration dedicated to customer requirements, the fixutring design and workshop
               layout plan supports from Royal Tech.























Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.



PVD Vacuum Metallizing Equipment - thermal evapora...     download the complet brochure, please click here.
