Bathroom Fittings Gold Plating Machine Taps TiN Gold ZrN Gold PVD Plating Machine On Brass Faucets

1 set
Bathroom Fittings Gold Plating Machine  Taps TiN Gold ZrN Gold PVD Plating Machine On Brass Faucets
Features Gallery Product Description Request A Quote
Deposition Sources: Arc Evaporation + Magnetron Sputtering Cathodes
Deposition Films: TiN TiO , TiAlN, TiC, CrN, SS, Cu, CrC, TiAlC Etc.
Applications: Metal, Steel, Glass, Sanitary, Kitchen And Bathroom Fittings, Ceramic Bathroom Fittings, Glass Mosaics, Glass Candle Holders, Glass Decoration Products,
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 12 sets per month
Product Description


Sanitary Ware/Faucet Pvd Gold Vacuum Chrome Coating Machine/Plating Equipment Supplier


The Sanitary PVD Ion Plating Machine can coat various substrates materials products like: ceramic, glass, crystal, metal alloys, Stainless steel, even ABS products with different proper pre-treatment process.

With directly PVD plating process, we can get PVDfinishing colors on glass, ceramic and stainless steel; however, other materials like ABS, Brass, metal alloy do require a base coating layer, generally it is electroplating method ( EP ).



Sanitary PVD Ion Plating Machine

1. RTAC series equipment consists of: vacuum
chamber, vacuum pumps, arc sources,

spindle & jack, jigs structure, heating & cooling,

water & gas (distribution), electrical control

& operation systems,substrate carrier etc.

2. Benefits: easy to operate, compact foot print,

low cost of owner ship, fast substrate exchange.

3.Coating Types: metal & alloy coatings, like:

TiN, ZrN, CrN etc.

4. Coating Colors: gold, silver colors etc.

5.Substrates: metal, stainless steel, glass, ceramic,

brass & copper etc.

6. Coatings Advantages: high shiny and bright

colors, strong adhesion & excellent scratch protection.

Technical Advantages

1. Strong background of R&D support, focus on

details of manufacturing.

4. Powerful pump package for short cycle time

and high productivity.

2. Robust rotational system design for high uptime.

5. Unique design is friendly operation and low


3. Exclusive arc sources to guaranty high coatings

quality, none color difference.

6. Turnkey coating solutions.


The Sanitary PVD Plating Machine Standard Models


RTAC-1008 RTAC-1012 RTAC-1213 RTAC-1416 RTAC-1618
Chamber Inner size 1000x800mm 1000x1200mm 1250x1350mm 1400x1600mm 1600x1600mm
Power supply type Arc power supply, filament power supply, pulse bias power supply
Structure of vacuum chamber Vertical front door structure, rear air exhaust system and double-layer water cooling chamber
Material of vacuum chamber stainless steel 304/316L
Ultimate vacuum 6.0x10-4Pa (unloading, clean, drying chamber)
Vacuum Pumping Speed from atmosphere to 8.0*10-3Pa ≤15 minutes
Vacuum pumping system Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
Arc source 6 units or
8 units
8 units or
10 units
10 units or
12 units
14 units or
16 units
16 units or
18 units
Bias power supply 20KW/set 20KW/set 30KW/set 40KW/set 50KW/set
Driving Model Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
Heating System Controllable and adjustable from room temperature to 450°C
(PID temperature control)
MFC 3-path or 4-path process gas flow control and display system, selective automatic gassing system
Cooling System Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)
Control mode Manual/automatic integration mode, touch screen operation, PLC or computer control
Total power 30KW 35KW 45KW 60KW 75KW
Alarm and protection Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function
Equipment area W2.5m*L3.5m W3m*L4m W4m*L5m W4.5m*L6m W5m*L7m
Other technical parameters Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa
Remarks The specific configuration of coating equipment can be designed according to process requirements of coating products

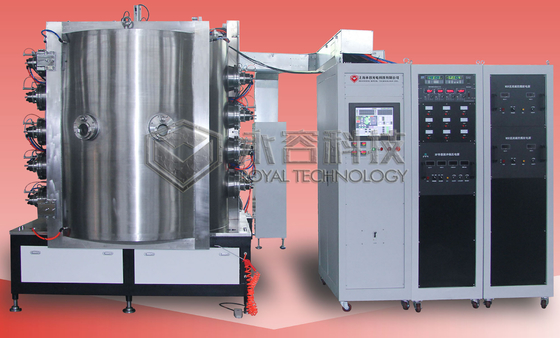

Bathroom Fittings Gold Plating Machine  Taps TiN Gold ZrN Gold PVD Plating Machine On Brass Faucets 0




Other customized machine sizes are vailable based on specified product dimensions and capacity demand.

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
