Sanitary Ware/Faucet Pvd Gold Vacuum Chrome Coating Machine/Plating Equipment Supplier
The Sanitary PVD Ion Plating Machine can coat various substrates materials products like: ceramic, glass, crystal, metal alloys, Stainless steel, even ABS products with different proper pre-treatment process.

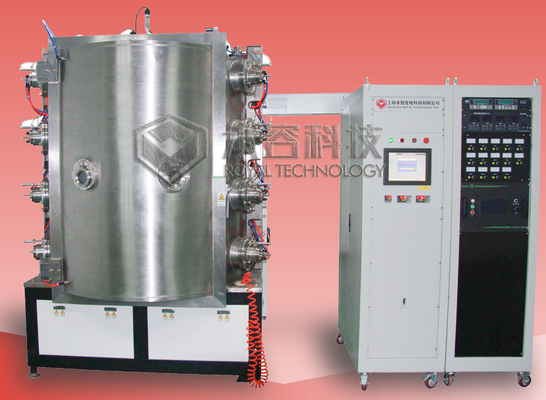

Sanitary PVD Ion Plating Machine
|
1. RTAC series equipment consists of: vacuum spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems,substrate carrier etc. |
2. Benefits: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange. |
||||||||||
|
3.Coating Types: metal & alloy coatings, like: TiN, ZrN, CrN etc. |
4. Coating Colors: gold, silver colors etc. | ||||||||||
|
5.Substrates: metal, stainless steel, glass, ceramic, brass & copper etc. |
6. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection. |
||||||||||
| Technical Advantages | |||||||||||
|
1. Strong background of R&D support, focus on details of manufacturing. |
4. Powerful pump package for short cycle time and high productivity. |
||||||||||
| 2. Robust rotational system design for high uptime. |
5. Unique design is friendly operation and low maintenance. |
||||||||||
|
3. Exclusive arc sources to guaranty high coatings quality, none color difference. |
6. Turnkey coating solutions. | ||||||||||
The Sanitary PVD Plating Machine Standard Models
Model |
RTAC-1008 | RTAC-1012 | RTAC-1213 | RTAC-1416 | RTAC-1618 | ||||||
| Chamber Inner size | 1000x800mm | 1000x1200mm | 1250x1350mm | 1400x1600mm | 1600x1600mm | ||||||
| Power supply type | Arc power supply, filament power supply, pulse bias power supply | ||||||||||
| Structure of vacuum chamber | Vertical front door structure, rear air exhaust system and double-layer water cooling chamber | ||||||||||
| Material of vacuum chamber | stainless steel 304/316L | ||||||||||
| Ultimate vacuum | 6.0x10-4Pa (unloading, clean, drying chamber) | ||||||||||
| Vacuum Pumping Speed | from atmosphere to 8.0*10-3Pa ≤15 minutes | ||||||||||
| Vacuum pumping system | Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be selected according to customer requirements) |
||||||||||
| Arc source | 6 units or 8 units |
8 units or 10 units |
10 units or 12 units |
14 units or 16 units |
16 units or 18 units |
||||||
| Bias power supply | 20KW/set | 20KW/set | 30KW/set | 40KW/set | 50KW/set | ||||||
| Driving Model | Planetary revolution and rotation, variable frequency speed regulation (controllable and adjustable) |
||||||||||
| Heating System | Controllable and adjustable from room temperature to 450°C (PID temperature control) |
||||||||||
| MFC | 3-path or 4-path process gas flow control and display system, selective automatic gassing system | ||||||||||
| Cooling System | Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) | ||||||||||
| Control mode | Manual/automatic integration mode, touch screen operation, PLC or computer control | ||||||||||
| Total power | 30KW | 35KW | 45KW | 60KW | 75KW | ||||||
| Alarm and protection | Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function | ||||||||||
| Equipment area | W2.5m*L3.5m | W3m*L4m | W4m*L5m | W4.5m*L6m | W5m*L7m | ||||||
| Other technical parameters | Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa | ||||||||||
| Remarks | The specific configuration of coating equipment can be designed according to process requirements of coating products | ||||||||||
Other customized machine sizes are vailable based on specified product dimensions and capacity demand.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
