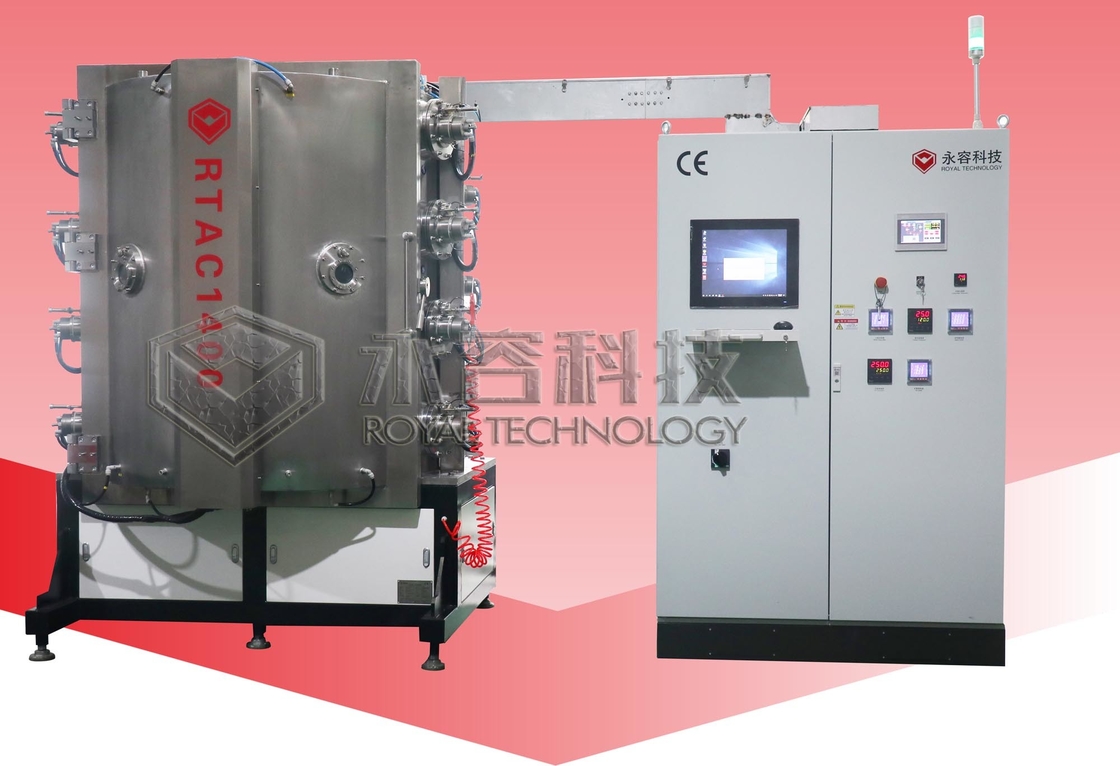

Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering

1 set
MOQ
negotiable
Price
Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering
Features Gallery Product Description Request A Quote
Features
Specifications
Deposition Sources: Sputtering + Cathodic Arc Evaporation
Technique: PVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications: Metal Jewelry, Watches, Necklace, Ear Rings, Finger Rings, Bracelets, Handbag Chains, Logos
Film Features: Bright Colors, Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Highlight:

Magnetron Sputtering PVD Vacuum Coating Machine

,

Metal Jewelry PVD Vacuum Coating Machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1250
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 6 sets per month
Product Description















Metal Jewelry Vacuum Coating Machine / IPG Gold Jewelry 18K ~ 24 K Sputtering System



The metal jewelry vacuum coating  machine combined the techniques of Sputtering and arc evapoation, which mainly used on metal jewelry and watches, handbags metal accessories.



The standard model is RTAC1250-SP, the machine contains key deposition sources of:

1.  Two sets  MF Sputtering Cathodes

2. 1 set planar / cylinder DC Sputtering Cathodes

3. 1 set Cylinder Arc Cathode or  7 sets cicular steered arc cathodes

4. 1 set Ion source unit for plasma cleaning bomboardment before PVD deposition, highly improved the film adhesion and much more bright color.





RTAC1250-SP Specifications



MODEL RTAC1250-SP
TECHNOLOGY Magnetron Sputtering + Ion Plating
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1250*H1250mm
CHAMBER TYPE Cylinder, vertical, 1-door
SPUTTERING SYSTEM Exclusively design for thin black film deposition
DEPOSITION MATERIAL Aluminum, Silver, Copper, Chrome, Stainless Steel,
Nickel, Gold, TiAl, Au alloy, Ag etc.
DEPOSITION SOURCE 2 sets MF Cylindrical Sputtering Targets + 1 Cathodic Arc Sources + 1 DC sputtering + 1 Ion Source
GAS MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL PLC(Programmable Logic Controller) +
PUMP SYSTEM SV300B - 1 set (Leybold)
WAU1001 - 1 sets (Leybold)
D60T- 2sets (Leybold)
Turbo Molecular Pumps: 2* F-400/3500
PRE-TREATMENT Bias power supply: 1*36 KW
SAFETY SYSTEM Numerous safety interlocks to protect operators
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W3000*H2000mm
TOTAL WEIGHT 7.0 T
FOOTPRINT ( L*W*H) 5000*4000 *4000 MM
CYCLE TIME 30~40 minutes (depending on substrate material,
substrate geometry and environmental conditions)
POWER MAX.. 155 KW

AVERAGE POWER

CONSUMPTION (APPROX.)

75 KW





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.







The Metal Jewelry Vacuum Coating Machine deposition chamber structure



DC sputtering cathodes and Ion Source Mounting Flange



Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering 0



   MF Sputtering cathode and Cylinder Arc Mounting Flanges



Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering 1



The IPG gold plating machine is particularly used in jewerly, watches, clocks, pens writing instrument, handbag and shoes high end metal parts (branded products ) Electronic products metal parts like Phone, Camera, remote controller,

Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering 2

Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering 3

Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering 4

Metal Jewelry PVD Vacuum Coating Machine , IPG Gold Plated With Magnetron Sputtering 5
