| Brand Name: | ROYAL |
| Model Number: | RTAC1416 |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 12 sets per month |

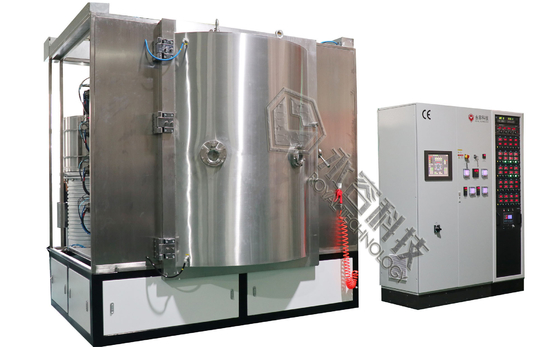

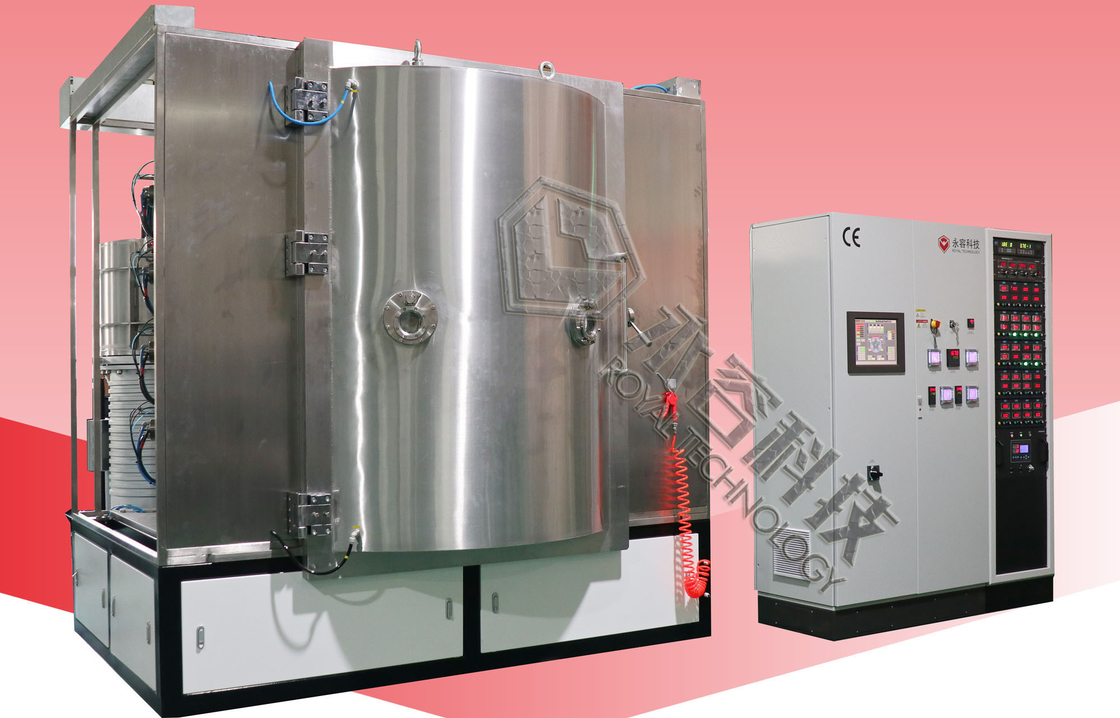

glass mug with sublimation coating High Vacuum Multi -Arcs Ion Plating Machine, Glass Arc Ion PVD Plating
RTAC-EP series coating equipment is a perfect combination of arc plating and thermal evaporation metalizing.
1. The RTAC1416 machine is designed and produced for glass balls decoration film coating.
Thermal evaporation sources is to get the none-transparent silver and gold colors by Copper and Aluminum deposition to get high reflection surface finishing.
The arc evaporation sources to generate more colors like champin, blue, rainbowl color, Amber color, none-transparent gold and half-transparent gold colors etc.
2.Featuring low cost, high production capacity, and environmental friendliness.
2.RTAC Thermal Evaporation + Arc Vacuum Plating Machine models
| Model | Size(mm) | Substrate Jigs (Qty.) | Evaporation Power(kVA) | Plasma (kVA) |
Arc Sources (Qty.) |
Electrical Power |
| RTAC1012-EP | 1000xH1200 | 6,8,10 | 20 | 12 | 6 | 3Phase/AC380V,50HZ 3Ph, 220 to 440V,60HZ |
| RTAC1416-EP | 1400xH1600 | 6, 8,16 | 30 | 24 | 14 | |
| RTAC1418-EP | 1400xH1800 | 6,16 | 35 | 24 | 14 | |
| RTAC1616-EP | 1600xH1600 | 8.16 | 35 | 36 | 16 | |
| RTAC1618-EP | 1600xH1800 | 8.16 | 35 | 36 | 18 | |
| RTAC1818-EP | 1800xH1800 | 6 | 40 | 48 | 22 |
3. Equipment Structure
