ABS parts TiN Gold PVD Vacuum Coating Machine , Cathodic Arc Decorative Coating Equipment on ABS parts
1 set
MOQ
negotiable
Price
ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1818
High Light:

titanium nitride coating equipment

,

tin coating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Specifications
Vacuum Technology: Cathodic Multi Arc Plating, PVD Arc Evaporation, Magnetron Sputtering MF
Deposition Sources: MF Sputtering Cathodes, Circular Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Faucets And Bathroom Fittings, Metal, Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

Brass Faucets Titanium Nitride Coating Machine / Faucets PVD Plating System







Brass Faucets Titanium Nitride Coating Machine Specifications



MODEL RTAS1818
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1800*1800mm (H)
PUMP SYSTEM Rotary Vane Vacuum Pump (Mechanical) - (Leybold) - SV630BF
Rotary Vane Vacuum Pump (Holding) - (Leybold) - D60C
Roots Vacuum Pump (Leybold) - WAU2001
Magetic Suspension Molecular Pump ( Osaka Vacuum Japan)
TECHNOLOGY Ion Plating ( Multi-arc sources) + MF sputtering
TYPICAL TARGETS Titanium, Zirconium, Chrome
GAS Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen
CONTROL PLC(Programmable Logic Controller)
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Water
HEATING Heater
POWER MAX. 130KW (Approx.)
AVERAGE POWER CONSUMPTION 60 KW (Approx.)



Brass Faucets Titanium Nitride Coating Machine- RTAC1618-SPMF is a high end package PVD plating machine for faucets coating.



1. High pumping system package: SV630BF* 1 + WAU2001*` + 3* Molecular pumps + Polycold Exclusively vacuum pumping system design concept has low power consumption, which reduce 30%~50% production cost per hour.

2. Patented Cathodic Arc Power Supply developed for minimize this disadvantage : macroparticles (droplets)formation. Which is also valiable for ABS PVD coatings.

3. The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.

4. Cathodic Arc source exclusively designed and produced for maximize the targets utilization ( up to 90% for a some targets)

5. Bias Power Supply and Ion Source Unit for optional enables a bright colors of final finishing

6. Cylinder sputtering cathodes for Chrome PVD sputtering or Aluminum sputtering on plastic parts.



Brass Faucets Titanium Nitride Coating Machine can generate decoration coatings.

The PVD colors: : gold, black, brown, grey, chrome, rose gold etc.

Multi arc ion plating machine can deposit metal films and multiple layers like TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.

ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts 0





ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts 1

ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts 2

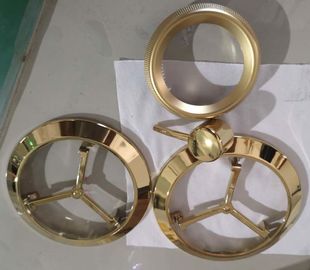

Brass Faucets Titanium Nitride Coating Samples

ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts 3

ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts 4

ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts 5

ABS parts TiN Gold  PVD Vacuum Coating Machine ,  Cathodic Arc Decorative Coating Equipment on ABS parts 6



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
