Car Mirror Vacuum Metallizing Machine / Aluminum, Chrome Automotive Mirrors Vacuum Metalizing System



Car Mirror Vacuum Metallizing Machine Introduction



The machine has 2 tecniques: thermal evaporation source and magnetron sputtering cathodes source. Which is flexible for different mirrors application.

Magnetron sputtering is a plasma coating process whereby sputtering material is ejected due to bombardment of ions to the target surface. The vacuum chamber of the PVD coating machine is filled with an inert gas, such as argon. By applying a high voltage, a glow discharge is created, resulting in acceleration of ions to the target surface and a plasma coating. The argon-ions will eject sputtering materials from the target surface (sputtering), resulting in a sputtered coating layer on the products in front of the target

Thermal evaporation source is tungsten filament to evaporation Cr or Al and get Chrome/Aluminum layer on glass to form high reflection mirrros.



Generally, Magnetron sputtering to sputter the Chrome, Stainless Steel materials; Al and Cu are deposited with thermal evaporation sources.



Car Mirror Vacuum Metallizing Machine Features



1. The vacuum chamber is a vertical type single door structure made of stainless steel. Chamber sizeΦ1400~2500mm

2. The vacuum system is composed of mechanical pump, roots pump, and diffusion pump.

3. Coating system for 10~28 arc or 1~4 arc column or plane arc.

4. High power pulse bias power source.

5. Inflating system has 1~4 sets mass flow control instrument and a gas flow display.

6. The electrical control system is equipped with sound and light alarm devices for circuit overload, water cutoff and air cutoff.

7. The control system (touch screen + PLC) displays detailed parameters at real time and controls the entire production process fully automatically under automatic running mode.


Car Mirror Vacuum Metallizing Machine Models

System/ model RTEP1200-SPDC RTEP1400-SPDC RTEP1600-SPDC
Chamber Size Diameter 1200 mm 1400 mm 1600 mm
Height 1400 mm 1600 mm 1800 mm
Main
Performance
Ultimate Pressure 10-4Pa
Operation Pressure From 1 ATM to 5x10-5 Pa within 15 minutes ( No load )
View Windows Set 1
Number of
Filaments
Pcs 18~22 20~24 20~26
Pumping
System
Preceding grade
pump
70 L/S 150 L/S 150 L/S
Roots Pump 600L/S 1200L/S 1200L/S
Diffusion Pump 17500L/S 30000L/S 60000L/S
Holding Pump 30 L/S
Layer Monitoring System Crystal Monitor Single Sensor/ Six-pcs Sensor Head
Vacuum Gauge   1 ATM ~ 10-4 Pa
Control Box Set 1
Evaporation
Power Supply
  30KW 35KW 50KW
Sputtering Target Pcs 2~4
Evaporation
Power Supply
  RF or DC
System Operation   Automatic/ Manual
Cooling water
flow rate
  100 L/min 120 L/min 150 L/min
High Vacuum
Valve
  24 inch 36 inch 36 inch
Roughing Valve   6 inch 6 inch 8 inch
Foreline Valve   6 inch
Leak Valve   2 inch
Holding Valve
(option)
  1 inch
Cooling Tower   15 RT (Water Pressure: 4kg/ cm2; Pressure Drop: 2kg/ cm2)
Cooling Water   Inlet: 18℃; Outlet: 25℃; Standard: 20±1℃
Electrical Control System   PLC
Total Power
Requirement
  75KW 85KW 95KW
Environment
Requirement
Class 100,000 Clean Room; Epoxy flooring; Air-conditioning; Temp.25±3℃; HUM50±10

Automotive Mirror Aluminum / Chrome Vacuum Metalizing Machine ,  Magnetron Sputtering Coating For Automotive Mirrors 0

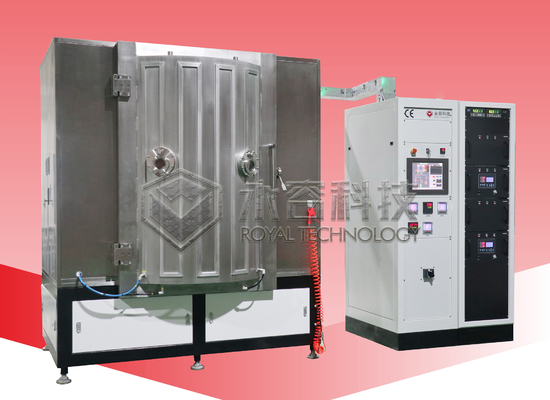

Automotive Mirror Aluminum / Chrome Vacuum Metalizing Machine ,  Magnetron Sputtering Coating For Automotive Mirrors 1

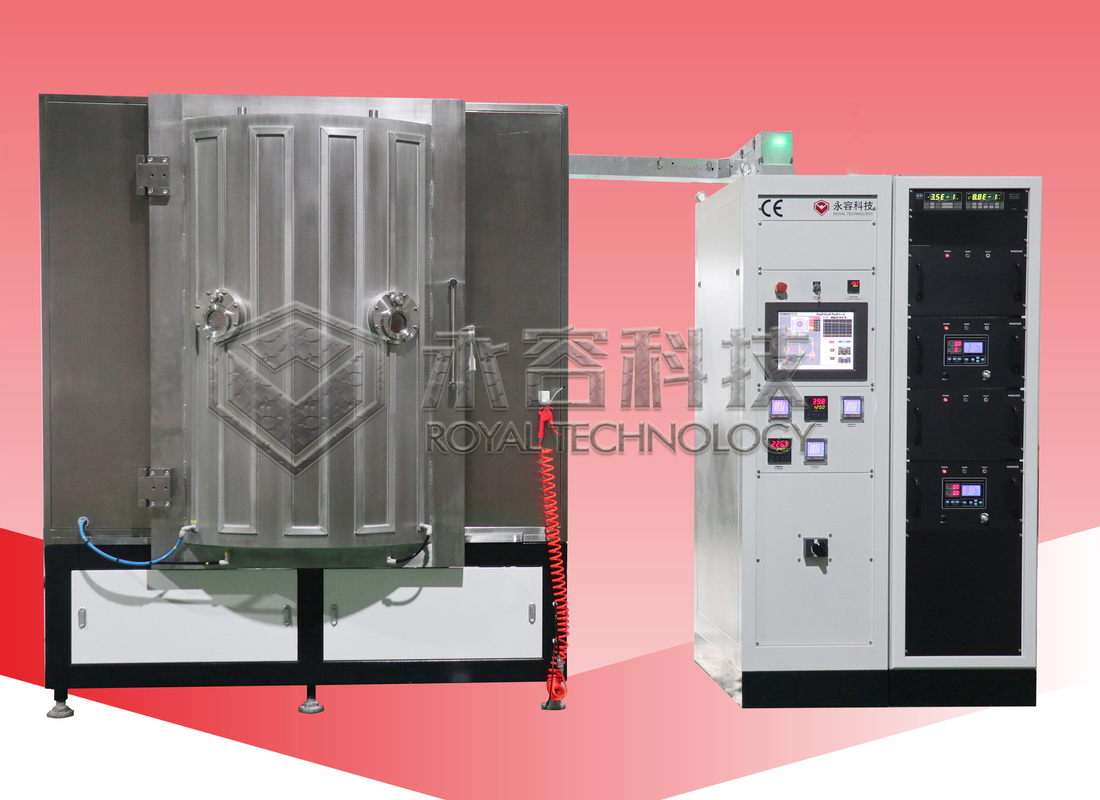

Automotive Mirror Aluminum / Chrome Vacuum Metalizing Machine ,  Magnetron Sputtering Coating For Automotive Mirrors 2



Royal Technology provides the whole plan of Car Mirrors manufacturing, from glass cutting, cleaning, bending, coating to assemble of final process. The whole factory's design and plan.

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
