PVD TiN Gold Coating Machine for Faucet , Flatware , Tableware , Door Handle

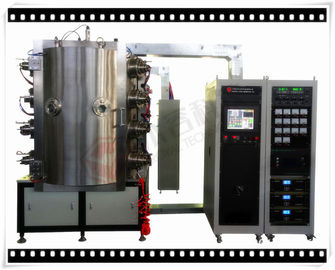

The RTAC-1215 multi-arc plating machine is designed for S, M size hardware work pieces PVD plating, like: steel, metal alloy, glassware, ceramic etc.
The high light of this machine is, deposit the film in a low temperature: so that door/window/cupboards handles, door locks etc, Copper Alloy Faucets. (MS60), ZinC alloy, Brass, stainess steel .The cathodic arc’s exclusive design for plastic low temperature coating like ABS&PP.
The specifications:
1. Arc ( Ion Plating ) series equipment consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems, substrate
carrier etc.
2. Benefits: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.
3. Coating Types: metal & alloy coatings, multiple layers coatings.
4. Coating Colors: gold, black, brown, grey, Chrome, rainbow colors etc
5. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials
6. Coating properties: high shiny and bright colors, strong adhesion & excellent scratch protection.
Technical Advantages
1. Strong background of R&D support, focus on details of manufacturing.
2. Robust rotational system design for high up time.
3. Exclusive arc sources to guaranty high coatings quality, none color difference.
4. Powerful pump set for short cycle time and high productivity.
5. Unique design is friendly operation and low maintenance.
6. Turnkey coating solutions.
Keywords: Zinc Alloy PVD Plating; Vacuum Metalizing machine, PVD Ion Plating Coater, Door handle PVD Coating machine
Coating Samples:
RTAC-1215SPECIFICATION:
| MODEL | RTAC-1215 |
| MATERIAL | Stainless Steel |
| CHAMBER SIZE | Φ1200*1500mm (H) |
| PUMP SYSTEM | Rotary Piston Vacuum Pump (Mechanical) |
| Rotary Vane Vacuum Pump (Holding) | |
| Roots Vacuum Pump | |
| Turbo Molecular Pump | |
| TECHNOLOGY | Ion Plating ( Multi-arc sources) + Pulsed Bias Plasma Cleaning |
| RACK SYSTEM | Planetary Rods: 10 |
| TYPICAL TARGETS | Titanium, Zirconium, Chrome, TiAl etc. |
| GAS | Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen |
| CONTROL | PLC(Programmable Logic Controller) |
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment |
| COOLING | Water |
| HEATING | Heater |
| POWER MAX. | 75KW (Approx.) |
| AVERAGE POWER CONSUMPTION | 40KW (Approx.) |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
