RT1400-AntiBac - Antibacterial Coatings by PVD deposition, antibacterial surfaces on households
1 set
MOQ
negotiable
Price
RT1400-AntiBac - Antibacterial Coatings by PVD deposition, antibacterial surfaces on households
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1400-Antibac
High Light:

titanium nitride coating equipment

,

tin coating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Coating Films: Metal Ionized Antibacterial Coatings
Application: Kitchen Implements Like SS Sinks, SS Houseware SS Flatware: Spoon, Fork, Knife Sanitaryware: Faucets, Bathroom Fittings Door Handles Ceramic Tiles Glassware For Food Storage Medical Instrument And More
Properties: High Antibacterial Effect And Long-lasting, Scratch Resistance, Corrosion & Wear Resistance.
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description





Background



Are antibacterial surfaces a technological breakthrough?



A study conducted by the Battelle organization forecasts that antibacterial surfaces and germ-resistant coatings will be an important technological breakthrough in household products. Homeowners are looking for new cleansers that provide lasting protection on kitchen and bathroom surfaces.



Advantages

  • High antibacterial effect and long lasting
  • Low production cost
  • Green coating technology
  • Scratch resistance
  • ​Corrosion & wear resistance



Applications

  • Kitchen implements like SS sinks, SS houseware
  • SS flatware: spoon, fork, knife
  • Sanitaryware: faucets, bathroom fittings

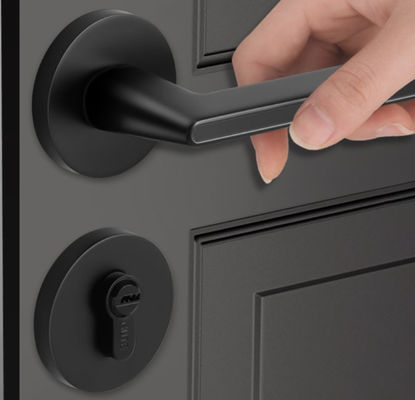

  • Door handles
  • Ceramic tiles
  • Glassware for food storage
  • Medical instrument and more

RT1400-AntiBac - Antibacterial Coatings by PVD deposition, antibacterial surfaces on households 0



The demand for antibacterial coatings on frequently touched surfaces has long existed. With the rising public health and domestic hygiene awareness, decorative coatings on SS and ceramic products, such as taps, door handles, hand rails, tiles,faucets, bathroom fittings with antibacterial properties may attract more attention from consumers than ever.


“After half a year of research and development, the test results eventually turned out excellent,” said Zhou Xin, the marketing director, “adding only several minutes based on traditional PVD decorative coatings, the products will be able to kill 99.99% of E. coli and S. aureus after 24 hours without affecting other important properties.”





Analysis & Test Result

(By Guangdong Detection Center of Microbiology ) Dec. 2020

The test microorganism The average plate count of blank control samples recovered over 24h(cfu/pieces) The average plate count of test samples recovered over 24h(cfu/pieces) Antibacterial rate (%)
Testing Material: stainless steel, brushed Escherichia Coli (AS1.90) 9.2x106 <20 >99.99

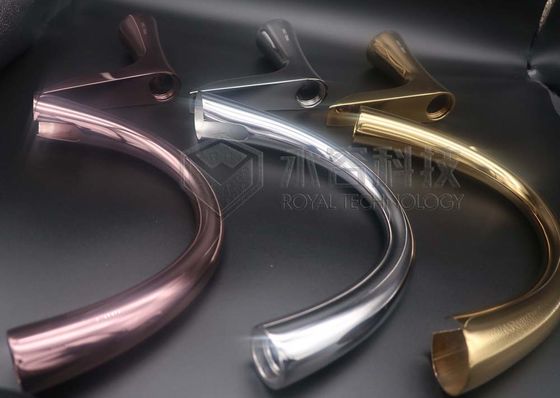

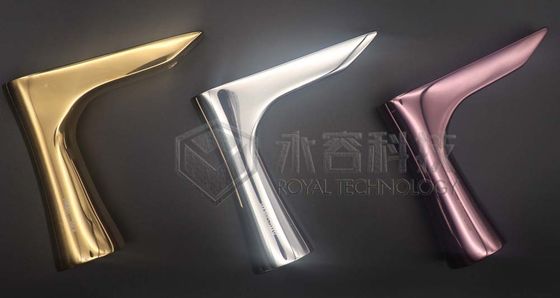

Coating Colors: black, chrome, TiN gold, Rose gold Staphylococcus aureus (AS1.89)

8.8x105



<20



>99.99



The above testing report is only for reference, actual value might be various when substrate material, testing methodology changes.

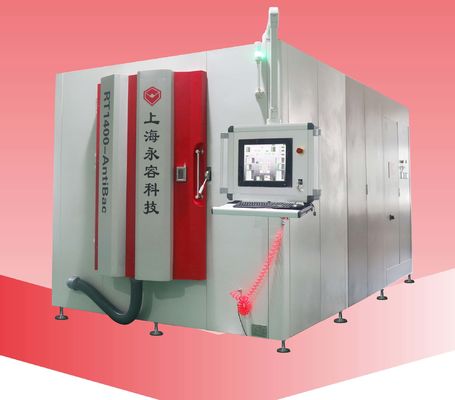

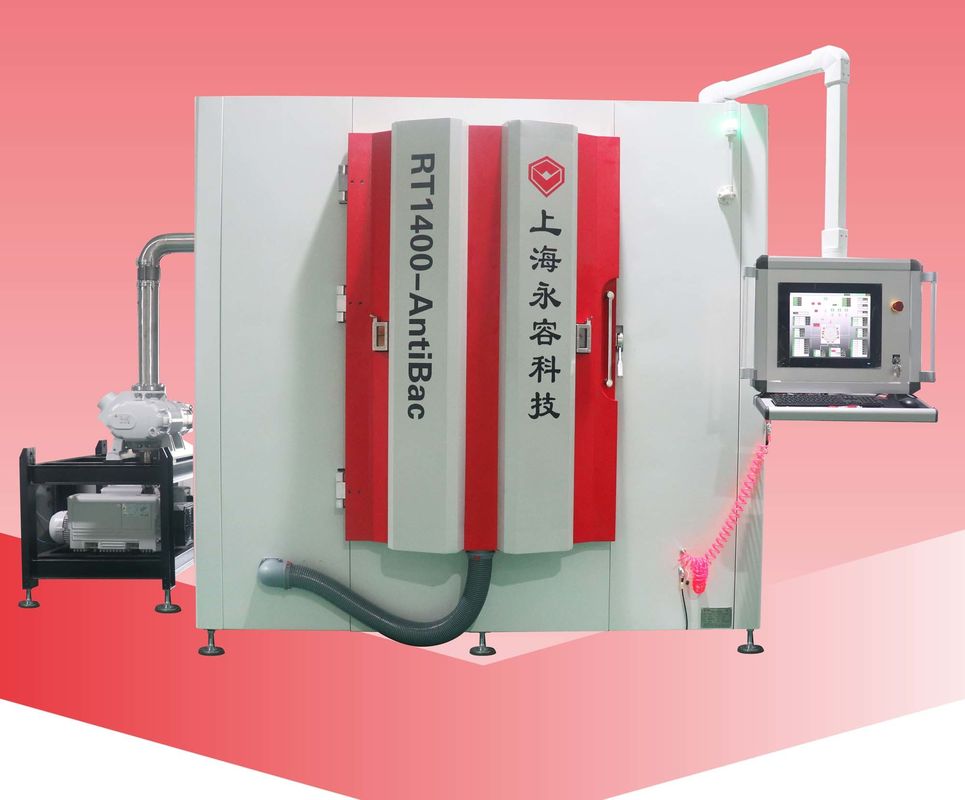

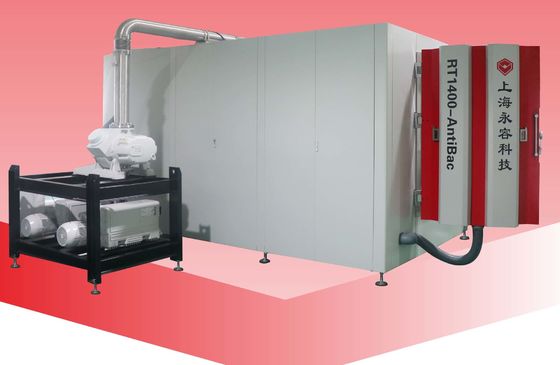

RTAC1400-Antibac PVD antibacterial coating machine's technical advantages:

  •  Plug-in integrated design system
  • IPC control & operation module
  • Available for remote monitoring and diagnosis
  • Flexible, ready for upgrading
  • Multiple cathodes for fast depostion coatings



Technical Specifications



Effective Coating Size(mm) Max. Loading (kgs) Deposition Sources Pulsed Bias Power (KW)

Sputtering Power (KW)



Heater Power (KW)

Power Consumption

(KW)

Installation Space(L*W*H) mm

6*φ370*H1200

8*φ300*H1200

12*φ210*H1200

500 Arc and sputtering cathodes Max. 36 Max. 36 Max. 18

Max. 90

Average: 50

6700*5800*3500





***The machine final configuration is determined by customer requirements.***





On June 29th. 2021, we shipped our machine to customer successfully.



RT1400-AntiBac - Antibacterial Coatings by PVD deposition, antibacterial surfaces on households 1

We are ready to share this advanced technique with our more customers, anyone is interested in providing the antibacterial finishing as an high added-value on your products, please contact us today.





Antibacterical Coating Machine- RT1400-AntiBac.pdf...    download brochure here
