Cabinets Handle and locks PVD Ion Plating Machine, Titanium Nitride Pvd Coating Equipment

1 sets
Cabinets Handle and locks  PVD Ion Plating Machine, Titanium Nitride Pvd Coating Equipment
Features Gallery Product Description Request A Quote
Vacuum Technology: Cathodic Multi Arc Plating, PVD Arc Evaporation, Magnetron Sputtering MF
Deposition Sources: Circular Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Faucets And Bathroom Fittings, Metal, Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

silver plating machine


ion plating system

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1416
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Product Description

 Door Handle effect Titanium Nitride Coating Machine / door hinges Zamak PVD Plating System



Door Handle Ion Plating Machine Features:


1. Vacuum chamber is vertical one open door , 304 stainless steel manufactures, vacuum chamber internal diameter from φ800mm-Φ2200mm;
2. Vacuum system by Rotary vane pump, Roots pump and Oil Diffusion Pumps or Molecular Pump Constitution;
3. Coating system uses 1-2 intermediate frequency magnetism to control the sputtering power source, has 1-2 pair of non-balanced magnetism to control the target, and has 6-40 arc sources.
4. High efficiency pulse bias power source;
5. The gasification system uses domestically produced or the import gaseous mass flowmeter, the gas flow amount control (demonstration) meter;
6. The electrically controlled system establishment electric circuit overloaded, cuts off the water supply, dies the acousto-optics alarm device;
7. Control system (touch-screen +PLC), real time display detailed parameter, completely automatic control entire production process, and automatic memory technological parameter


Door Handle Ion Plating Machine Specifications


MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1400*1600mm (H)
PUMP SYSTEM Rotary Vane Vacuum Pump (Mechanical)
Rotary Vane Vacuum Pump (Holding)
Roots Vacuum Pump (Leybold)
High Vacuum Oil Difussion Pump
TECHNOLOGY Ion Plating ( Multi-arc sources) + MF sputtering
TYPICAL TARGETS Titanium, Zirconium, Chrome
GAS Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen
CONTROL PLC(Programmable Logic Controller)
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
POWER MAX. 90KW (Approx.)



Metal door handles are usually made of Zamak (Zinc Alloy) or Aluminum Alloy, it is crucial to give a beautiful final finishes with various colors. PVD Ion Plating technology has used so well in this application. After proper surface pretreatment before PVD coating, like polishing, brushing, or sandblasting; the PVD plating system gives various PVD colors: gold, black, brown, grey, chrome, rose gold etc.

The deposited films are pure metal or multiple layers like TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.

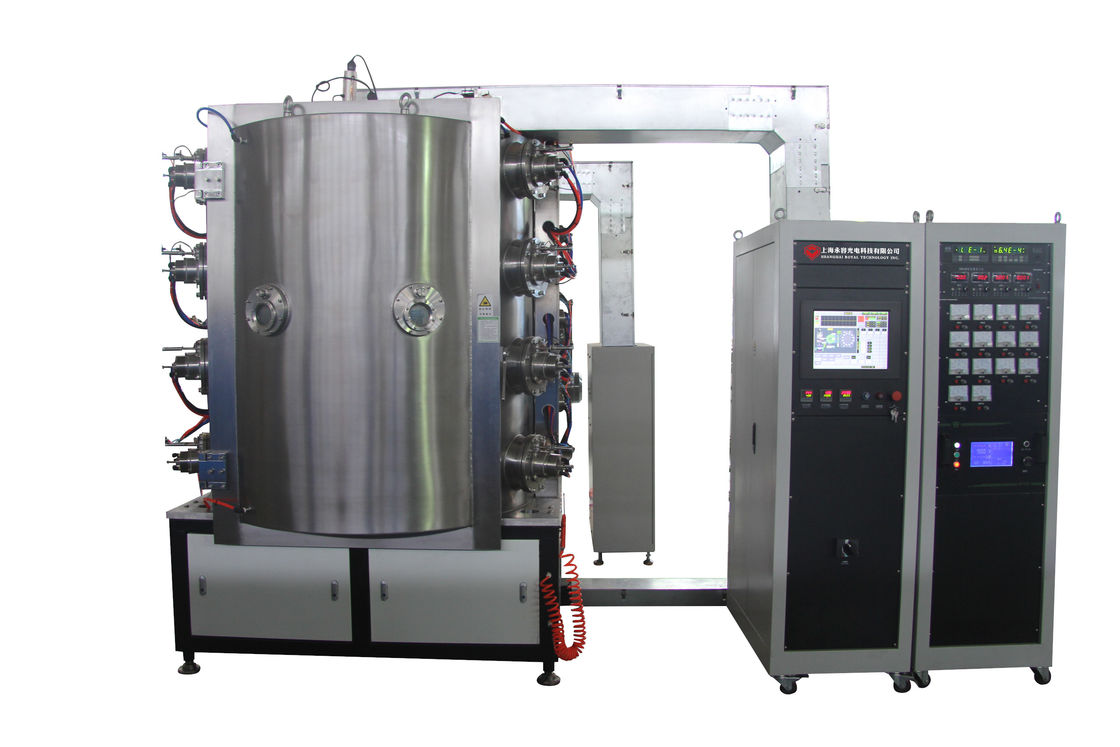

Cabinets Handle and locks  PVD Ion Plating Machine, Titanium Nitride Pvd Coating Equipment 0




Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
