Dental Hand Tools Titanium Coating Machine / Magnetron Sputtering Coating Machine
1 set
MOQ
negotiable
Price
Dental Hand Tools Titanium Coating Machine / Magnetron Sputtering Coating Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1000
High Light:

thin film coating equipment

,

dlc coating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 6 sets per month
Specifications
Deposition Sources: Sputtering + Cathodic Arc Evaporation
Technique: PVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications: Metal Jewelry, Watches, Necklace, Ear Rings, Finger Rings, Bracelets, Handbag Chains, Logos
Film Features: Bright Colors, Wear Resistance, Strong Adhesion, Decorative Coating Colors
Product Description




This machine is suitable to the industrial production vacuum coating system. It equips a big size plain arc ion evaporation source and can deposite high performance hard metal film by arc evaporation technology, such as TiN, TiCN,AlTiN and all kinds of other special film according to customer’s requirements.

This machine can be used for PLASTIC FILLING INSTRUMENTS DENTAL HAND TOOLS COMPOSITE TITANIUM COATING

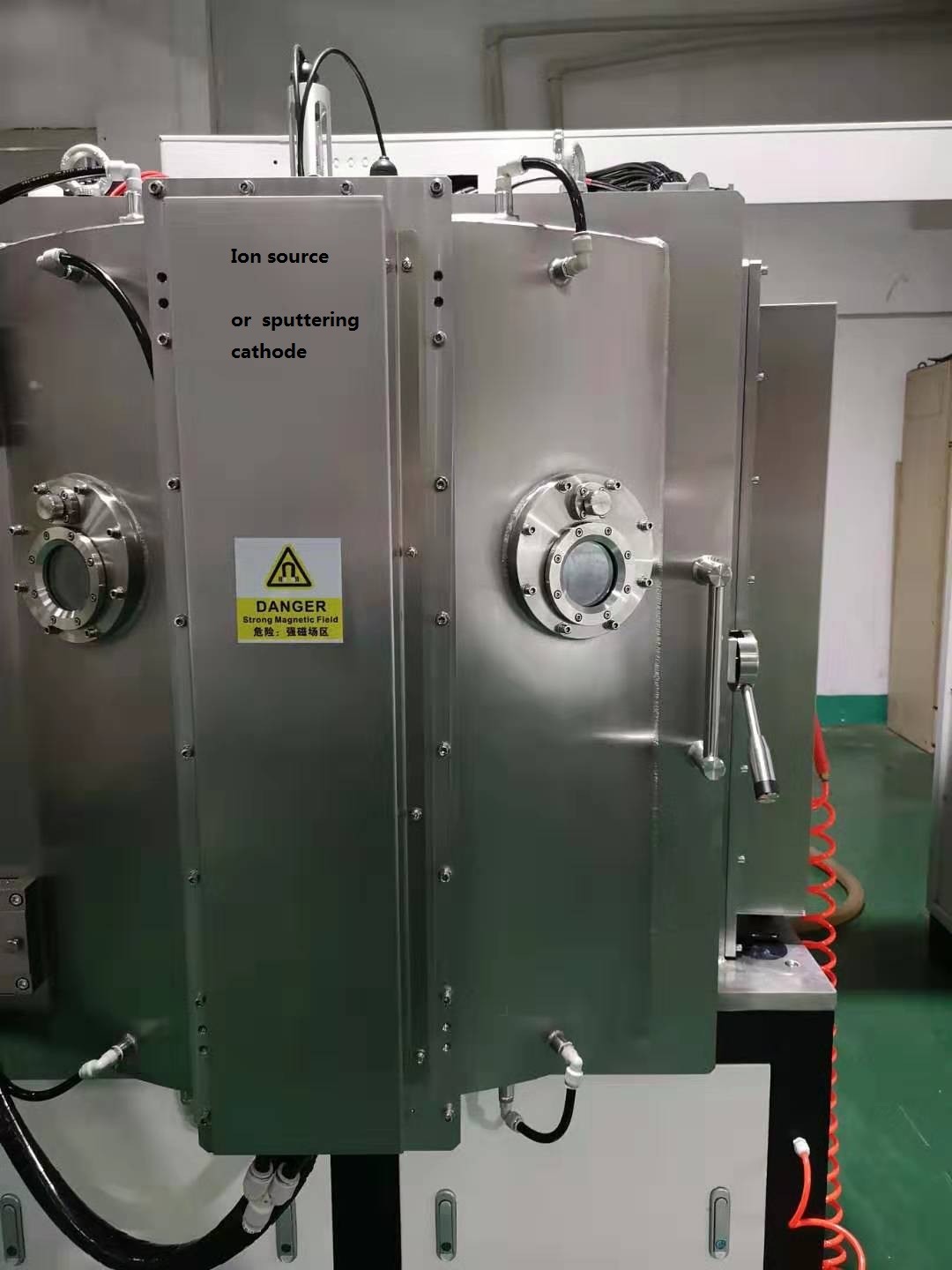

Dental Hand Tools Titanium Coating Machine / Magnetron Sputtering Coating Machine 0

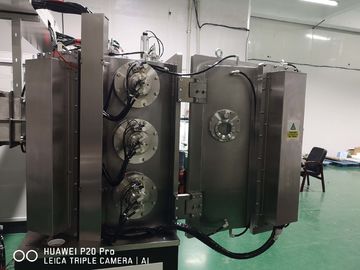

Dental Hand Tools Titanium Coating Machine / Magnetron Sputtering Coating Machine 1

Thin Film Coating Machine Specifications



MODEL RTSP1010
TECHNOLOGY PECVD process- magnetron sputtering + ion source
CHAMBER MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1000*1000mm (H)
CHAMBER TYPE Regular octahedron chamber, 2-doors
ROTATION RACK & JIG SYSTEM 6 (8)satellite, Max. weight: 400kgs
POWER SUPPLIES Qty. of Sputtering: 2*24 KW Bias of Power Supply: 1*24W AE power supply for option Ion Source Power supply 2 sets, AE power supply for option
DEPOSITION MATERIAL Cr/C
DEPOSITION SOURCE

2 pairs (4 pieces) Sputtering Cathodes + 2 Ion Source Coating Area: Dia800mm*H550mm;

Uniformity Area: ±10~15%

CONTROL PLC(Programmable Logic Controller) + Touch Screen ( manual+ auto+ semi-auto operation models)
PUMP SYSTEM Rotary Vane Pump: SV300B - 1 set (Leybold)
Roots Pump: WAU1001 - 1 set (Leybold)
Holding Pump: D60C-1set- (Leybold)
Magnetric Rotor Suspension Molecular Pump: MAG2200 - 2 sets (Leybold)
GAS MASS FLOW CONTROLLER 3 channels, Made in America (MKS brand)
VACUUM GAUGE Model: ZDF-X-LE, Made in China
Linear Ion Source 2 pieces Pre-treating, plasma cleaning + assisted deposition
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
HEATING Heaters: 20KW. Max. temp.: 400℃
COOLING Industrial Chiller (Cold Water)
POWER MAX. 100KW (Approx.)
AVERAGE POWER CONSUMPTION 45 KW (Approx.)
GROSS WEIGHT T (Approx.)
FOOT PRINT ( L*W*H) 4000*4000 *4000 MM
POWER ELECTRICAL AC 380V/3 phases/50HZ

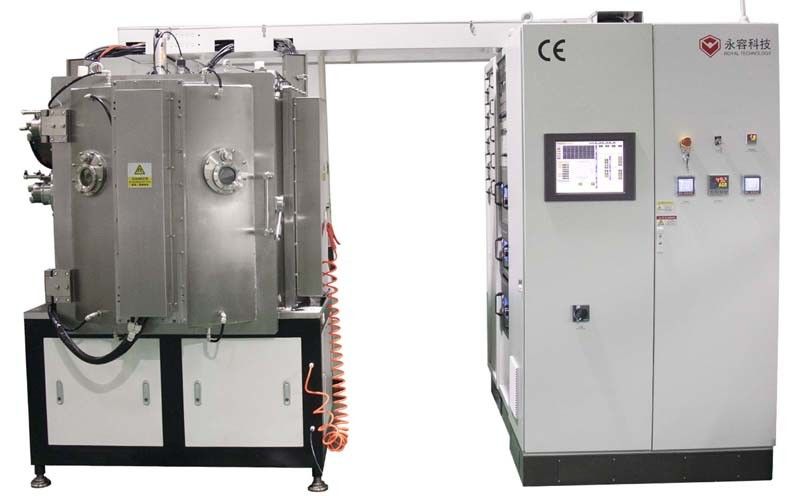

  Dental Hand Tools Titanium Coating Machine / Magnetron Sputtering Coating Machine 2



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
