IPG Gold Plated With DC Magnetron Sputtering Deposition Sources, Planar Sputtering Cathode Au Gold Plating
The metal pin badge vacuum coating machine combined the techniques of Sputtering and arc evapoation, which mainly used on metal jewelry and watches, handbags metal accessories.

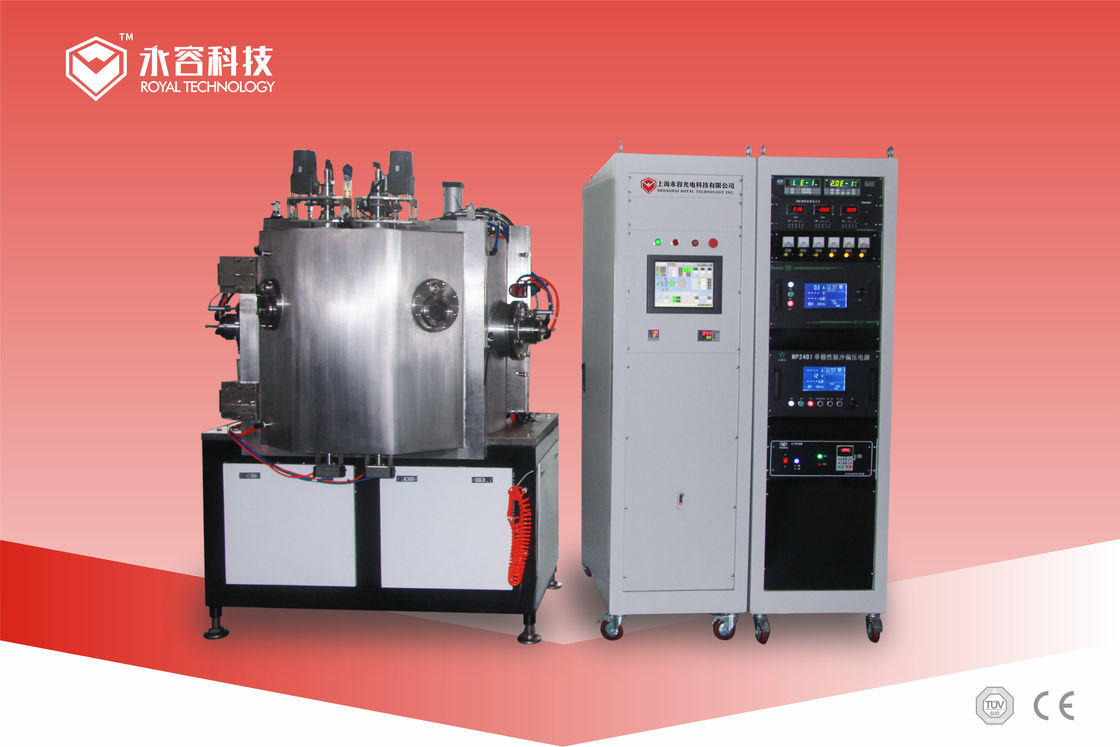

The standard model is RTAC1250-SP, the machine contains key deposition sources of:
1. Two sets MF Sputtering Cathodes
2. 1 set planar / cylinder DC Sputtering Cathodes
3. 1 set Cylinder Arc Cathode or 7 sets cicular steered arc cathodes
4. 1 set Ion source unit for plasma cleaning bomboardment before PVD deposition, highly improved the film adhesion and much more bright color.
The IPG gold plating machine is particularly used in jewerly, watches, clocks, pens writing instrument, handbag and shoes high end metal parts (luxury famous branded products , Electronic products metal parts like Phone, Camera, remote controller,
RTAC1250-SP Specifications
| MODEL | RTAC1250-SP | ||||||
| TECHNOLOGY | Magnetron Sputtering + Ion Plating | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1250*H1250mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| SPUTTERING SYSTEM | Exclusively design for thin black film deposition | ||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc. |
||||||
| DEPOSITION SOURCE | 2 sets MF Cylindrical Sputtering Targets + 1 Cathodic Arc Sources + 1 DC sputtering + 1 Ion Source | ||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
| CONTROL | PLC(Programmable Logic Controller) + | ||||||
| PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
| WAU1001 - 1 sets (Leybold) | |||||||
| D60T- 2sets (Leybold) | |||||||
| Turbo Molecular Pumps: 2* F-400/3500 | |||||||
| PRE-TREATMENT | Bias power supply: 1*36 KW | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W3000*H2000mm | ||||||
| TOTAL WEIGHT | 7.0 T | ||||||
| FOOTPRINT | ( L*W*H) 5000*4000 *4000 MM | ||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 155 KW | ||||||
|
AVERAGE POWER CONSUMPTION (APPROX.) |
75 KW |
IPG gold coating samples
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
