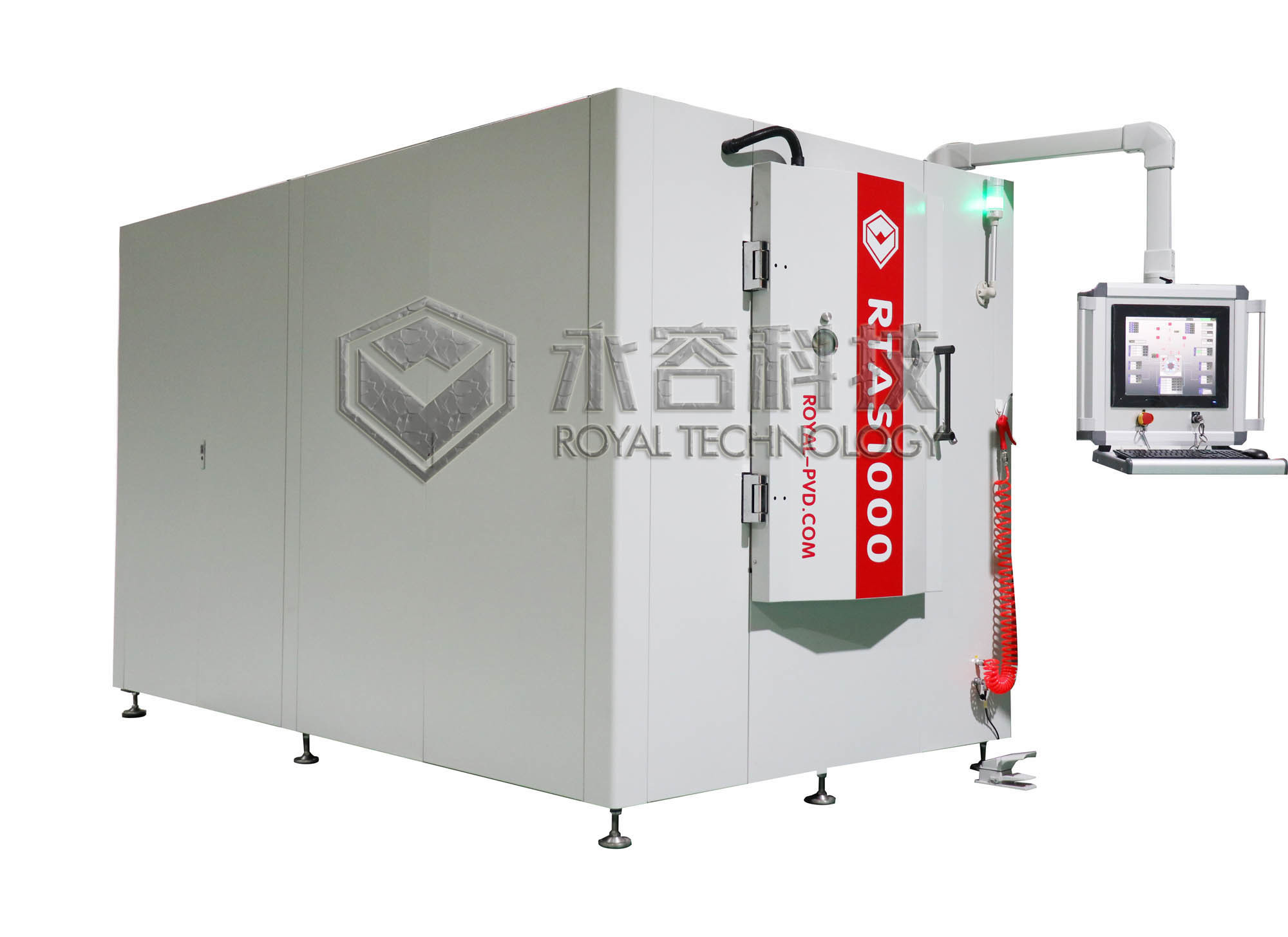

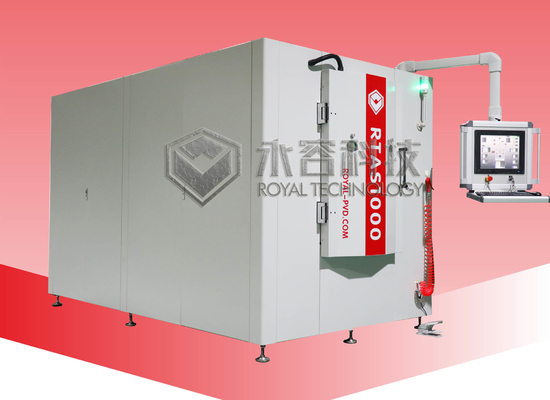

MultiTech- RT1000-IPG Jewelry PVD 24K / 18K Gold Coating Machine
1 set
MOQ
negotiable
Price
MultiTech- RT1000-IPG Jewelry PVD 24K / 18K Gold Coating Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL TECHNOLOGY
Certification: CE
Model Number: RT1000-IPG
High Light:

24K PVD Coating Machine

,

18K PVD Coating Machine

,

Jewelry Innovative Custom PVD Machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Technology: PVD Magnetron Sputtering, PECVD By Ion Source
Applications: 24K Pure Gold/18K Gold Alloycoatings On Luxury Products: Brands Metal Accessries Etc. Microelectronics Industry
Film Properties: High Abrasion And Corrosion Resistance
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

Customization to satisfy your special demand
Standardization to lower your production cost

                        -- We Focus on Applications More

2-MultiTech- DLC IPG black film coatings.pdf     please dowload brochure here for more information




Jewelry gold ion plating machine, jewelry PVD plating machine

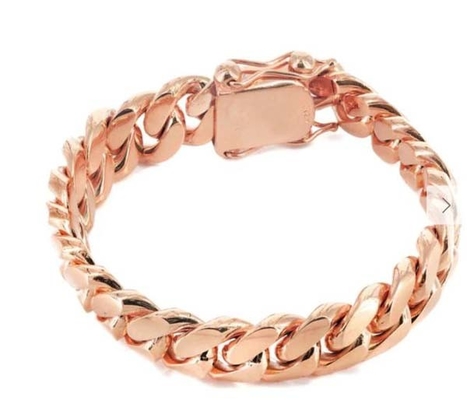

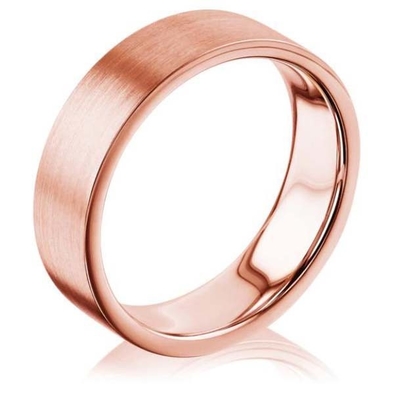

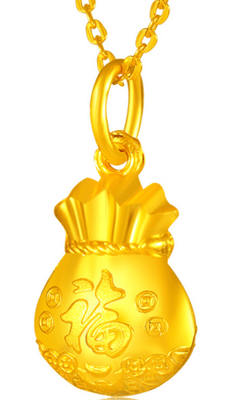

PVD vacuum coating technology in the jewelry industry , one important application is the metal instruments, like: Bracelets, necklaces, earrings etc.



Considering the biocompatibility, Titanium material is used for



PVD coating equipment mainly for decoration coatings on the metal, ABS parts. The ranged colors are silver, black, gold. When introducing different reactive gas and target materials the colors are changing slowly, during the deposition changing period, to get the idea desired colors.



This is operated by changing different coating parameters and process.

Coating processes to deposit every each color is stored in PLC software recipes, totally 10 recipes are available.



So that the AUTO COATING model is possible after the recipes are logged in. The full automatically operation is very helpful for primer PVD operators.



The advantages:



1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.






Description RT1000-DLC

RT1000-IPG


RT1250-BLACK

RT1612-BLACK


Technical Advantages

Plug-in Integrated system for fast installation
Short cycle times for decorative coatings
High yield of coating products
High density and excellent uniformity
High abrasion and corrosion resistance
More than aesthetic but functional performance

Higher volume
Multiple deposition sources for fast deposition
Combined arc and several sputtering cathodes : arc for good adhesion amd strong bonding layer, sputtering deposition for specific coatings.

Major Applications

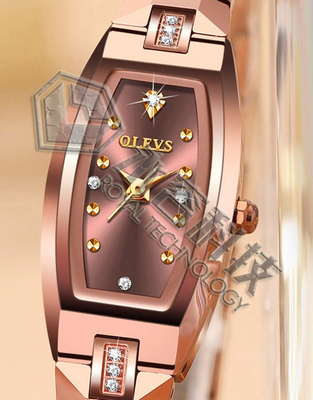

Black DLC coatings on medical insutrments, jewelry, watch parts.
24K pure gold/18K gold alloycoatings on luxury products: brands metal accessries etc.

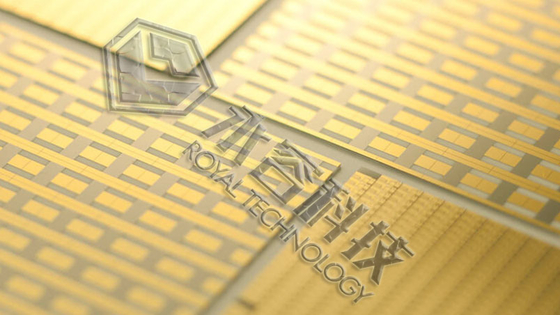

Microelectronics industry

Medium and larger workpieces: SS cutlery, door handles, bathroom fittings, automotive components, sports, house appliances , kitchenware and spectral frames etc.
Deposition Chamber

φ1000 * H1000mm


φ1250 * H1250mm


φ1600 * H1250mm


Load Diameter
(Max.)

6*φ250mm
12*φ120mm

8*φ270mm 10*φ230mm


10*φ300mm 16*φ200mm


Load Height
( Effective)
650mm 900mm 900mm
Deposition Cathodes 5 arc + 4 pairs MF cylinder sputter

Option A: 8 arc + 1 set DC planar sputter;
Option B: 5 arc + 2 sets DC planar sputter


7 arc + 3 (or 4) pairs of MF cylinder sputters 12 arc + 4 (or 6 ) pairs of MF cylinder sputters
Operation & Control System

Siemens PLC + Industrial Computer + RoyalTech. Operation Program
Available for remote operation and diagnosis


These configurations are standard, for a specific developing market and new special coatings, the customized configurations and modifications are available on requests.


MultiTech- RT1000-IPG Jewelry PVD 24K / 18K Gold Coating Machine 0  MultiTech- RT1000-IPG Jewelry PVD 24K / 18K Gold Coating Machine 1
                         Vacuum System Installation                                              Program Commissioning





Other coating samples

 MultiTech- RT1000-IPG Jewelry PVD 24K / 18K Gold Coating Machine 2  MultiTech- RT1000-IPG Jewelry PVD 24K / 18K Gold Coating Machine 3



                   In sanitaryware                                                            Electronic Circuit Boards



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
