Chrome Electroplating Replacement With PVD Process

1 set
Chrome Electroplating Replacement With PVD Process
Features Gallery Product Description Request A Quote
Applications: Automotive (e.g. Interior Trims, Logo, Etc.) Fashion Consumer Electronics Tooling Instruments Lighting Packaging Bathroom Fixtures Home Appliance
Products Materials: ABS, ABS + PC, PA, PBT, Brass, Brass Alloy, Metal Steel, Zinc Alloy, Aluminum Alloy.
Model: RTAS1600
Technology: Cathodic Arcs And Magnetron Sputtering
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

small pvd coating machine


high vacuum coating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RT-PVD1600-Cr
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Product Description


Chrome plating is a film surface treatment, which has been commonly used in many industrial sectors, to provide excellent shiny decoration, which prevented corrosion and abrasion.

However, the hexavalent Chrome electroplating (Cr6+) damaged the health of operators and ruined our environment. Therefore, trivalent Chrome electroplating (Cr3+) replaced the Cr6+ plating.

But with higher quality requirements by clients and lower production cost demands by manufactures, an alternative low-cost solution needed to be found, while preventing negative health impacts and damages to our environment.

PVD treatment has been identified as the perfect solution to these issues.

Royal Technology has developed standardized PVD coating equipment, which can be applied with various materials:

  • ABS, ABS + PC, PA, PBT, Brass, Brass alloy, Metal steel, Zinc alloy, Aluminum alloy.
    PVD revolutionized chrome processing in industries such as:
    Automotive (e.g. Interior trims, Logo, etc.)
  • Fashion
  • Consumer electronics
  • Tooling instruments
  • Lighting
  • Packaging
    Bathroom fixtures
  • Home appliance

And in many other industries, parts need protective layers and aesthetic coatings.

Chrome Electroplating Replacement With PVD Process 0Chrome Electroplating Replacement With PVD Process 1

Chrome Electroplating Replacement With PVD Process 2Chrome Electroplating Replacement With PVD Process 3



  • Durable Manufacturing
  • Robust Design
  • Large Capacity
  • Mass Productivity
  • Environmentally Friendly Reproducible Coating
  • User-Friendly

Besides, the PVD chrome coating benefits are:

  1. Environmentally friendly: the whole process is clean, totally free of chemical CO2 emissions
  2. High aesthetic finishing with a brilliant metallic look
  3. High hardness, abrasion and corrosion resistant, durable; high uniformity; adjustable thickness through proper coating recipes and operating processes
  4. High repeatability, fast cycle time, more cost-efficient products
  5. Wide range of finishes: reflective, glossy and matte; brightness from see-through to semi-transparent, from full coverage to reflective finishing

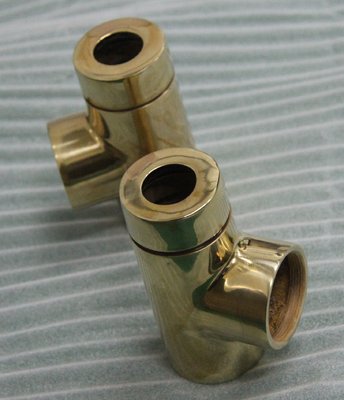

  6. Large variety of substrates, greater flexibility and choice in product design
  7. Saver for operators
  8. Reliability, being able to operate the machine 24/7
  9. High yield
  10. Recyclability

    PVD chrome coating process
    Chrome Electroplating Replacement With PVD Process 4

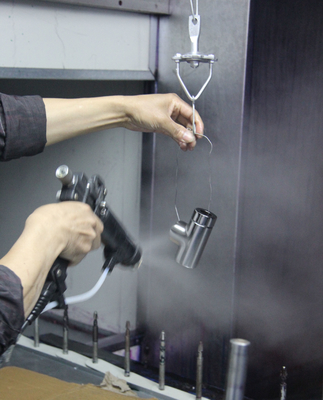

    It provides protection to the PVD metal layer and increases its performance

    Metal or alloy: Chromium, Titanium, Copper, Brass, Silver, Aluminum, Nickel-Chrome, Stainless Steel and others

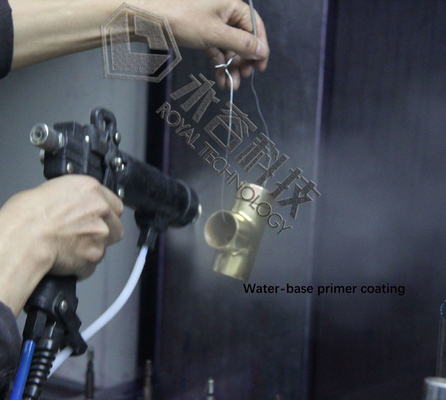

    It levels substrate imperfection, improves adhesion, provides brightness to the surface and improves the substrates hardness.

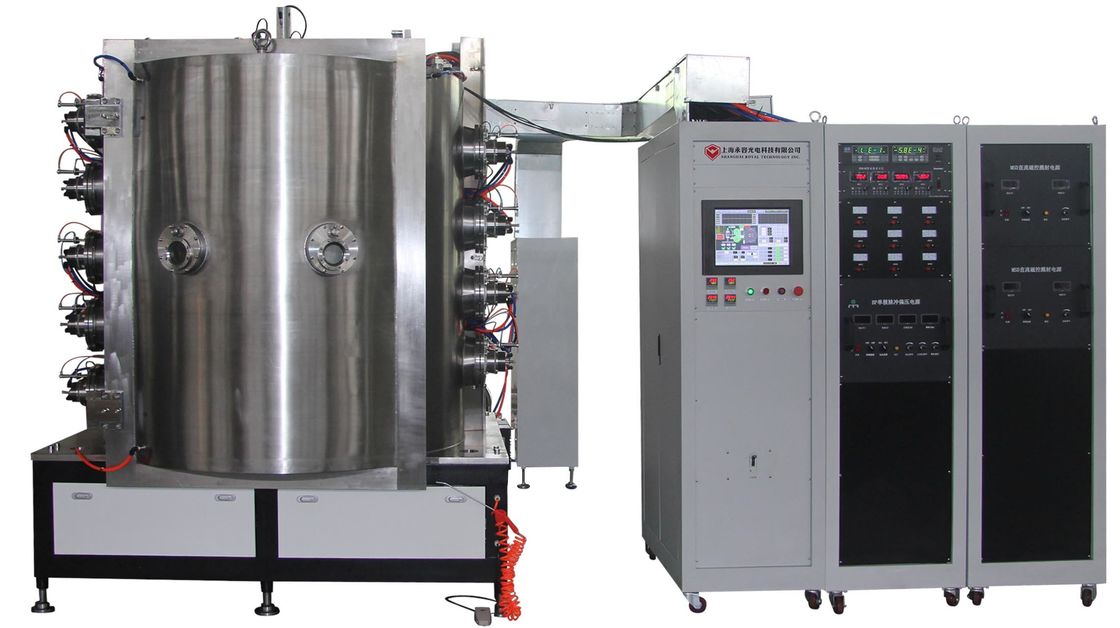

    Technical Specifications

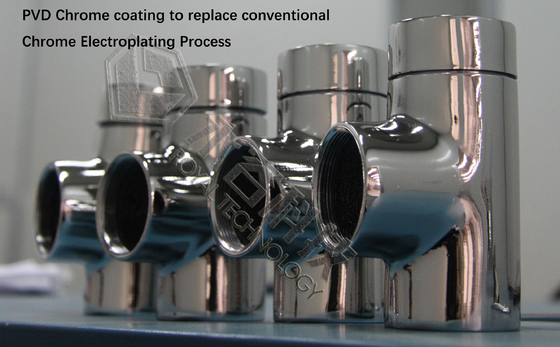

    The PVD-Cr1600 machine is exclusively designed to replace traditional Chrome electroplating.

    Combined with UV process, the coating application covers all materials: plastics, brass and zinc alloy and mild steel. There are multiple deposition sources: The cathodic arc evaporator and magnetron sputtering cathodes enable maximum flexibility and numerous finishing requirements with reduced cycle times.
    Cycle time: 20~30 minutes
    Capacity per shift (8 hours): approx. 15 cycles

    Model: PVD-Cr1600
    Deposition Chamber (mm): Stainless Steel with liners, φ1600 x H1600 (63” x 63”)
    Effective Coating Zone (mm): φ1350 x H1250
    Load Mass (kg): 500 ~ 1000
    Number of Satellites (mm): 6 x φ 350
    Pulsed Bias Power: 48KW
    Arc Cathode Power (KW) : 9* 5
    Pulsed Sputtering Power (KW): 2* 48
    Vacuum Pump: Mechanical, roots and diffusion pumping package
    Operation Control System: PLC controlled processing with Touch Screen HMI
    Electrical Enclosures (mm) L x W x H: PS : 1200 x 2000 x 600
    Power : 600 x 2000 x 1000

    Utility Requirement

    Installation Space (L x W x H) mm: 5000 x 4000 x 4000

    Power Working Environment:l 3 Phase, 380V, 50Hz,

    Compressed Air Pressure: 0.5MPa ~0.7MPa, 5~8kg/cm2

    Cooling Water Flow rate: 120liter/min or more for Arc, sputtering sources and vacuum pumps;

    Water temperature (inlet): 20~25℃

    Water pressure (inlet): 0.3MPa ~ 0.4 MPa

    Water pressure (outlet): less than 0.1MPa, difference between inlet and outlet about 0.3MPa.

    Water quality: resistance no less than 5kΩcm

    Machine configuration according to customer requirements, the fixture design and workshop layout plan can be supplied on demand by Royal Technology.


    Key Components Introduction

    1. Satellites

  11. Robust design and Laser precision machining
  12. Magnetic fluid sealing device
  • Mechanical bearings (optional ceramic bearings)
    Chrome Electroplating Replacement With PVD Process 5

    2. Vacuum Pump Groups

    2.1 Efficient pump-down system contains 2 sets DP28” diffusion pump
    2.2 Cold-trap device to prevent oil vapour molecules from diffusion pump into chamber

    Chrome Electroplating Replacement With PVD Process 6

    3. Deposition Sources

    3.1  cathodic arcs distributed in chambers with 2 line
    3.2 2 sets magnetron sputtering cathodes mounted on chamber wall
    3.3 Low temperature deposition
    3.4 Recommended substrate materials:
    Plastics: ABS, PC, PC/ABS, PC/PBT, PC/PRT, PA (fiber glass and mineral enforced)
    many other polymers; with lacquer spray painted substrates, glass.
    Metals: Stainless steel, Aluminum, Titanium alloys, Aluminum alloys, Zinc alloys, brass and many other metals.
    3.5 Recommended target metals
    Chromium, Titanium, Zirconium, Aluminum, Stainless Steel, Copper, Silver, Gold
    and many other non-feffomagnetic metals.

    Chrome Electroplating Replacement With PVD Process 7Chrome Electroplating Replacement With PVD Process 8

    4. Operation and Control System: Human Machine Interface (HMI)

    Custom-designed user interface can be programmed in your chosen languages
    The history of coating processes are saved automatically
    10 coating processes can be recalled and executed at any time. ( No. 0~ No.9)
    Cycle page: shows all parameters that have to be selected to create a process
    Troubleshooting and Alarm Pages
    Maintenance page
    Electronic components are : Wöhner, Schneider, Omron brands.

    Chrome Electroplating Replacement With PVD Process 9 Chrome Electroplating Replacement With PVD Process 10

    The descriptions presented in the above are purely indicative, Royal Technology reserves the right to give precise details or make changes during machine manufacturing.

    Learn how our customer say about this total coating solutions:

    April 1st 2018

    To Royal Technology Team:

    I bought the PVD-machineRTAC-1416. After the start-up and commissioning of the equipment, ceramics, glass and stainless steel were coated. The quality of the coating is excellent.
    To cover Al-Zn alloys products, additional surface preparation of the parts to be coated is necessary. The best option is to pre-coat parts with nickel, and then topcoat the decorative coating. But since there are problems with galvanizing and nickel plating, you can do without it. The seller of this equipment can provide the technology of coating without the use of electroplating.
    The colors are varied and very beautiful, especially on glass and ceramics. It makes no sense to spend money on expensive targets of chromium, instead of them you can use titanium targets, which are five times cheaper, and the resulting color is practically the same.
    The company also provides services for the launch of equipment. At start-up, an interpreter is needed. We used the services of an interpreter who did not have a sufficient level of technical language knowledge. But, in principle, everything was clear, due to the very accessible and user-friendly interface of the software, and a convenient touch screen.
    When buying a PVD-machine you need to have a compressor and a chiller. We were recommended to have a compressor at 9-10 atm., but quite enough 5-6 atm. Also the company provides the necessary spare parts.
    Before buying a PVD-machine, all negotiations were conducted on the Internet. The end result: the PVD-machine is stands and works at my place.
    I want to express special gratitude to the highly skilled manager of the company Miss Zhou Xin, who helped bring the matter to its logical completion.

    TSykalo Sergey Alekseevich (Zaporozhye, Ukraine)




    Мною была куплена вакуумная установка для нанесения покрытий САС1416. После запуска и введения в эксплуатацию оборудования покрывали керамику, стекло и нержавейку. Качество покрытия превосходное.

    Для покрытия изделий из цинковых и алюминиевых сплавов необходима дополнительная подготовка поверхности покрываемых деталей. Самый лучший вариант, это предварительно покрывать детали никелем, а потом поверх наносить декоративное покрытие. Но т.к. существуют проблемы с гальванизацией и никелированием, можно обойтись и без него. Продавец данного оборудования может предоставить технологию нанесения покрытия без использования гальваники.

    Цвета получаются разнообразные и очень красивые, особенно на стекле и керамике. Нет смысла тратиться на дорогие мишени из хрома, вместо них можно использовать титановые мишени, которые в пять раз дешевле, а получаемый цвет практически не отличается.

    Также компания предоставляет услуги по запуску оборудования. При запуске необходим переводчик. Мы пользовались услугами переводчика, у которого не было достаточного уровня знания технического языка. Но, в принципе, было все понятно, за счет очень доступного и удобного интерфейса программного обеспечения, и удобного сенсорного экрана.

    При покупке машины необходимо иметь компрессор и чиллер. Нам рекомендовали иметь компрессор на 9-10 атм., но вполне достаточно 5-6 атм. Также компанией предоставляются в комплекте необходимые запасные части.

    Перед закупкой машины все переговоры велись по интернету. Конечный результат: машина стоит у нас и работает.

    Хочу выразить особую благодарность высококвалифицированному менеджеру компании мисс Чжоу Синь (Zhou Xin), которая помогла довести дело до логического завершения.

    Цыкало Сергей Алексеевич (г. Запорожье, Украина)



    Мною була куплена вакуумна установка для нанесення покриттів САС1416. Після запуску і введення в експлуатацію обладнання покривали кераміку, скло і нержавійку. Якість покриття дуже чудова.
    Для покриття виробів з цинкових і алюмінієвих сплавів необхідна додаткова підготовка поверхні деталей. Найкращий варіант, це попередньо покривати деталі нікелем, а потім поверх наносити декоративне покриття. Але тому що існують проблеми з гальванізацією і нікелюванням, можна обійтися і без нього. Продавець даного обладнання може надати технологію нанесення покриття без використання гальваніки.
    Кольори виходять різноманітні і дуже красиві, особливо на склі та кераміці. Немає сенсу витрачатися на дорогі мішені з хрому, замість них можна використовувати титанові мішені, які в п’ять разів дешевше, а одержуваний колір практично не відрізняється.
    Також компанія надає послуги із запуску обладнання. При запуску необхідний перекладач. Ми користувалися послугами перекладача, у якого не було достатнього рівня знання технічної мови. Але, в принципі, було все зрозуміло, за рахунок дуже доступного і зручного інтерфейсу програмного забезпечення, і зручного сенсорного екрану.
    При покупці обладнання необхідно мати компресор і чиллер. Нам рекомендували мати компресор на 9-10 атм., але цілком достатньо 5-6 атм. Також компанією надаються в комплекті необхідні запасні частини.
    Перед закупівлею обладнання усі переговори велися по інтернету. Кінцевий результат: машина стоїть у нас і працює.
    Хочу висловити особливу подяку висококваліфікованому менеджеру компанії міс Чжоу Синь (Zhou Xin), яка допомогла довести справу до логічного завершення.

    Цикало Сергій Олексійович (м. Запоріжжя, Україна)
