Magnetic Materials Coating By Parylene Vacuum Deposition, Nano Vacuum Coatings, Parylene Vacuum Deposition
1 set
Magnetic Materials Coating By Parylene Vacuum Deposition, Nano Vacuum Coatings, Parylene Vacuum Deposition
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RT-Parylene Coating--CVD-7
High Light:

Glass Parylene Coating Equipment


Chrome Plating Parylene Coating Equipment


Nano Vacuum Parylene Coating Equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 10 weeks
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Magnetic Materials Applications: Coil Boobin, Magnetic Material, Magnetic Ring, Magnetic Precision Parts
Parylene Coatings: Acid Resistanc, Water-proof, Friction-resistance, High-voltage Resistance
Thickness Range: 100nm Till 100 Microns
Product Description

Royal Technology provides polymer coating service and coating equipment for waterproof coatings with Parylene nano film. Parylene coating technology is widely used in aerospace, precious relics, silicone rubber, seals, magnetic materials, MEMS, circuit boards, sensors, biomedical and other fields. Parylene-coated product can increase the strength and temperature insulation, abrasion proof, chemical resistance (diluted chemical), corrosion-resistant. Our equipment are presently being used by many large enterprises all over the world.


What is parylene?

It is a transparent and colorless polyester protective material. It is suitable for vacuum coating at room temperature, and the vacuum coating pressure is below 10-5 Torr, while the Parylene coating process is about 0.1 Torr. The thickness of the coating can be controlled between 1-100 microns. The coating is a patent developed by the United States in the early 1960s. It was first applied to the field of microelectronic components for US military printed circuit boards, aerospace and underwater launch devices, 1972 Included in the U.S. military standards in:



Micro and nano processing technology: chemical vapor deposition (CVD)


Put the powdered nano-materials into the evaporation chamber of the vacuum nano-coating equipment, and evaporate into gaseous molecules at a temperature of 150℃-180℃. Under the action of vacuum (1.0*10-2torr), the gaseous nanomolecules below 10nm enter into the cracking In the cracking chamber, the high temperature at 680°C-700°C is cracked into reactive monomers, and the active monomers and monomers are re-polymerized to form a dense and pinhole-free nano-film layer.




1.Circuit board coating

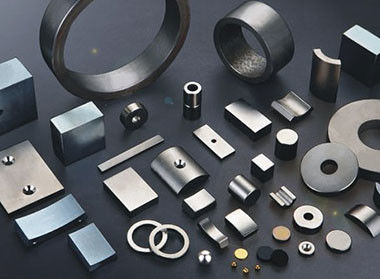

2.Magnetic Materials
Before Parylene is used, some (coating) wear centers can easily lose the insulation of magnetic windings. Parylene can not only overcome this defect, but also form a friction-resistant inner surface, which can accelerate the elongation and winding process, and at the same time increase ferrite The dielectric properties and high-voltage resistance of magnetic materials such as body can overcome the defects of non-abrasion resistance and acid resistance after ordinary epoxy resin spraying and hanging processes.

Magnetic Materials Coating By Parylene Vacuum Deposition, Nano Vacuum Coatings, Parylene Vacuum Deposition 0


3. Medical Instruments:


4. LED outdoor lighting


5. Silicone Rubber Use


6. Sensors


7.Historical Rlics, Fragile cultural relics, specimens, etc. can be reinforced and protected with Parylene to extend their life.


Technical Specifications


Active Volume of the Cavity: ⌀750*930mm

Floor Space: 3250*2000*2630mm

Total power:10kw


Technical advantages


  • One touch automatically coating process
  • PLC control system, full color touch screen man-machine dialogue interface,
  • automatically adjust the evaporation speed, ensure the uniformity of deposition pressure.
  • Two sets of cylinder device, easy to place the product before coating, without hand handling.
  • Vacuum Roots pump is equipped to accelerate pumping speed and improve coating efficiency.
  • Large capacity of coating chamber, suitable for mass production and large size products, reduce coating cost.



Parylene Coating Characteristics


Good moisture-proof and waterproof effect can withstand salt spray

Ultra-thin insulation layer can withstand high voltage

No deflation suitable for space and aerospace applications
Comply with U.S. military standard MIL I-46058C

Bio-compatibility meets FDA (Class VI)

Good dry lubricity

Strong penetration can penetrate into the bottom of SMD devices

Fix surface debris to prevent particle contamination and dust proof effect

Mass rolling coating reduces costs

Optically transparent

Can resist acid and alkali corrosion

Can resist low temperature (-200 ~ 450 ℃)

Moth-proof and mildew-proof, suitable for protection of cultural relics

Parylene nano coating can achieve complete, continuous and pinhole-free


Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
