PVD Chrome Vacuum Metallizing Machine, PVD Plating in Hexavalent Chrome (Cr6+) Electroplating Replacement
Customers love bright, shiny and metallic look of chrome finishing for the consuming products, either bathroom fittings, faucets or to car bumpers bright metal finishes are everywhere.
Traditionally these parts are Chrome Electroplated, Chrome plating as a stable, excellent shiny decoration, corrosion prevention and abrasion wearing film surface treatment, in the last decades, it extensively be used for many industries. However, the hexavalent Chrome (Cr6+) electroplating damaged health of operators and ruined our environment. So, trivalent Chrome (Cr3+) was used to taken place of the (Cr6+) plating. With the higher requirement of quality and lower production cost demands by manufactures, now, an alternative solutions to replace expensive cost of (Cr3+) electroplating, the most important is without negative health impact and environmentally hazard effluence has been required.
When this subject come to PVD, it solved. Royal Technology has designed and developed the standardized PVD coating equipment used for various substrate materials: ABS, ABS + PC, PA, Brass, Brass Alloy, Metal Steel, Zinc Alloy, Aluminum and Aluminum Alloy etc. With the PVD chrome processing, it changed the traditional process treatment in automotive industry, transportation vehicles, clocks, tooling instruments, hardware, bathroom and kitchen appliance and other many parts need protective layer and aesthetic coatings.
PVD Chrome Vacuum Metallizing Machine General Information:

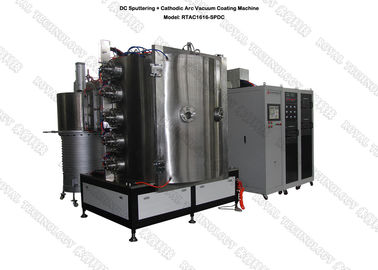

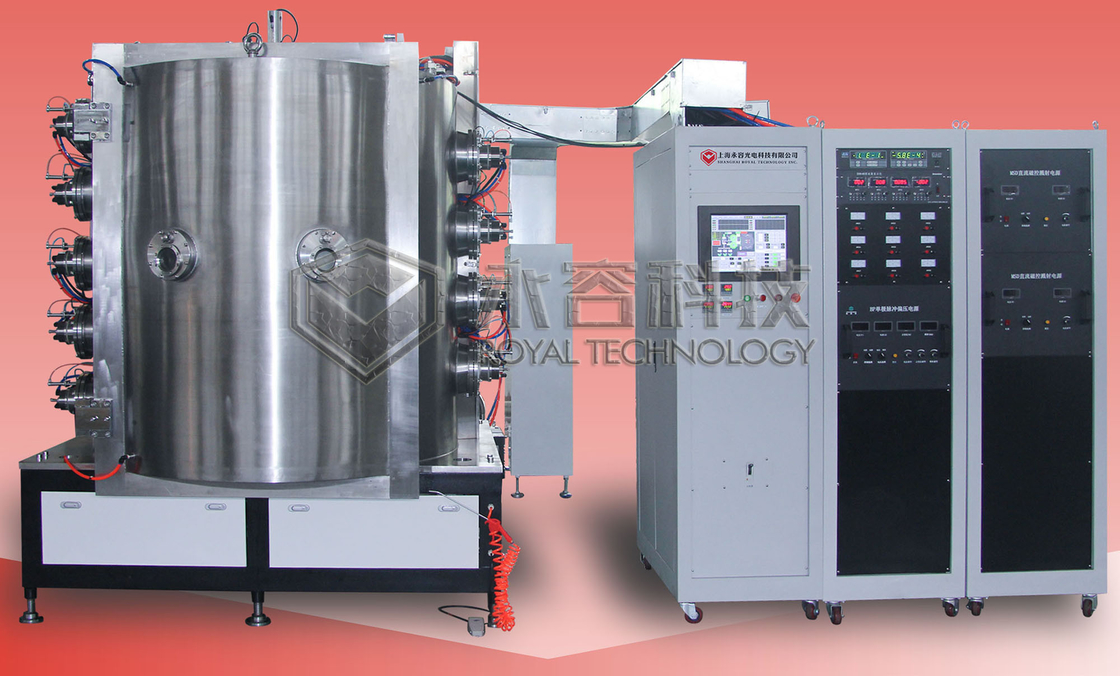

RTAC1616-SPDC PVD metalizer is designed to replace the electroplating chrome process, it is
equipped with multi-arc vacuum coating sources and DC sputtering cathodes, which available for all plastic and metal substrate products PVD chrome plating.
The PVD plating process is between base and top lacquer thermal heating painting process. We can get high quality of Chrome color, stainless steel color and gold colors.
Except the high finishing surface, abrasion wearing and anti-corrosion properties, the hardness also can achieve up to 4H.
Besides, Polycold device is for option especially for ABS parts processing.
RTAC1616-SPDC high vacuum metallizing equipment configurations:
Configurations:
| MODEL | RTAC1616-SPDC |
| TECHNOLOGY | Arc evaporation + DC magnetron Sputtering + Plasma cleaning |
| MATERIAL | Stainless Steel (S304) |
| CHAMBER SIZE | φ1600*1600mm (H) |
| PUMP SYSTEM | Rotary Vane Vacuum Pump (Mechanical) |
| Rotary Vane Vacuum Pump (Holding) | |
| Roots Vacuum Pump | |
| High Vacuum Oil Diffusion Pump | |
| TECHNOLOGY | Ion Plating ( Multi-arc sources) + DC sputtering + Ion Source (for option) |
| POWER SUPPLY | Arc 9*5KW + DC Sputtering 2*48KW |
| TYPICAL TARGETS | Titanium, Zirconium, Chrome, Silver, Au gold, Aluminum, Copper etc. |
| GAS | Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen |
| CONTROL | PLC(Programmable Logic Controller) |
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment |
| COOLING | Water |
| HEATING | Heater |
| POWER MAX. | 120KW (Approx.) |
| AVERAGE POWER CONSUMPTION | 55 KW (Approx.) |
PVD Chroming Samples
1. ABS PVD Chroming handles
2. Automotive Wheel and Rims by PVD Hard Chrome
3. Bathroom Fittings, piping and plumbings, faucets
Above technical parameters only for reference, Royaltec reserves the right for final production based on specified applications.
Please consult us with your expected solutions you want to get from Royaltec, we provide the turn-key coating solutions on this application.
